60FET (2003)
GENERATOR

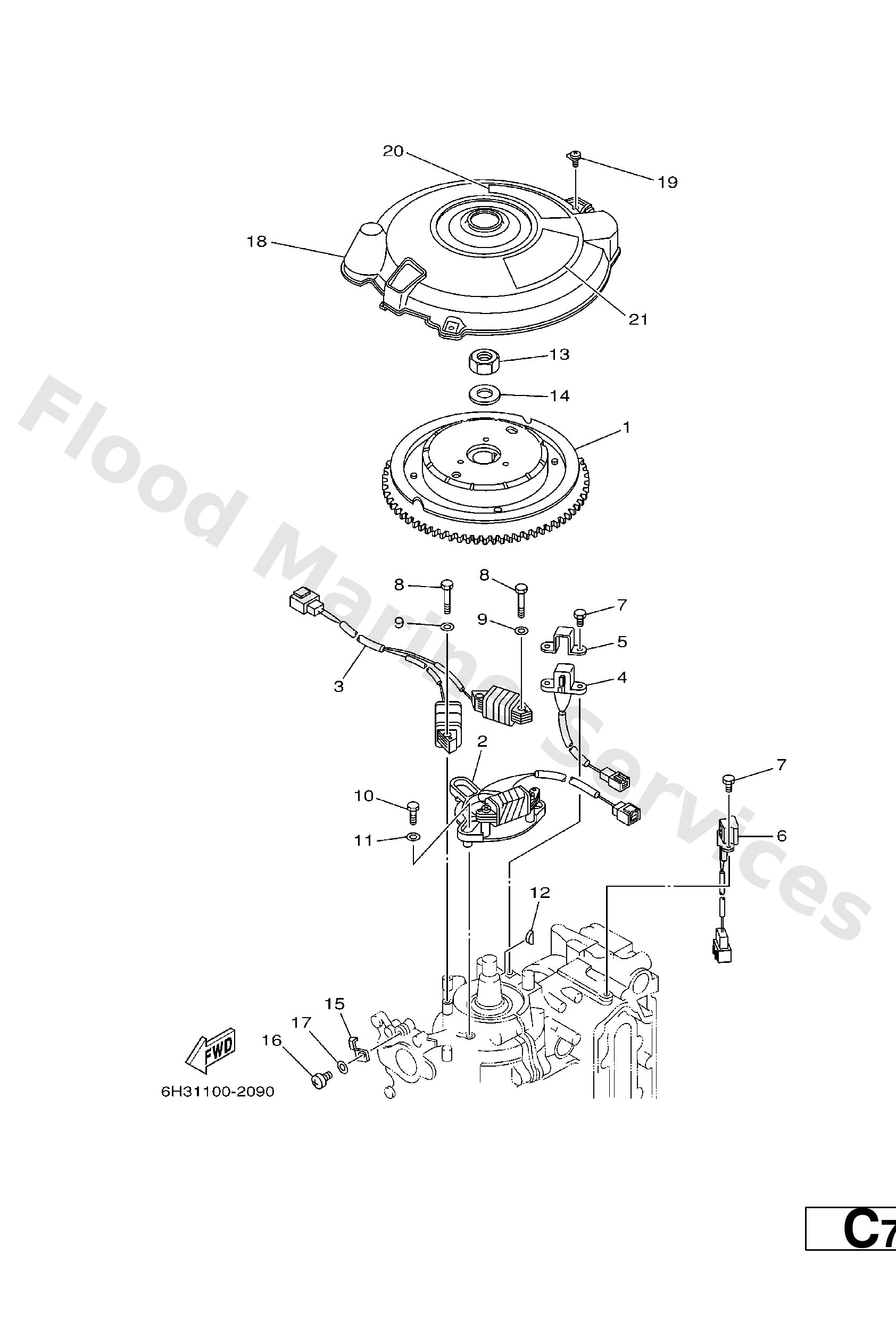

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6H2−85550−00
Rotor assembly
Loading…
↗
2
6H2−85520−01
Coil, charge
Loading…
↗
3
6H2−85533−01
Coil, lighting
Loading…
↗
4
6H2−85580−01
Coil, pulser
Loading…
↗
5
6H2−85582−00
Attachment, pulser
Loading…
↗
6
6H2−85895−01
Crank position sender
Loading…
↗
7
97095−05012
Bolt, hexagon
Loading…
↗
8
97095−06035
Bolt(j52)
Loading…
↗
9
92995−06600
Washer, plain (646)
Loading…
↗
10
97095−06025
Bolt
Loading…
↗
12
90280−05015
Key, woodruff
Loading…
↗
13
90170−20137
Nut, hexagon(663)
Loading…
↗
14
90201−21M18
Washer, plate (663)
Loading…
↗
15
6E5−81332−00
Plate, timing
Loading…
↗
16
97885−06010
Screw pan head
Loading…
↗
18
6H3−81337−01
Cover, flywheel
Loading…
↗
19
90159−06M23
Screw, with washer(6b0)
Loading…
↗
20
6H3−14488−00
Label, Caution
Loading…
↗
21
6H3−13437−43
FOR USA
Mark, Caution
Loading…
↗
21
6H3−13437−21
FOR CANADA,
Mark, caution
Loading…
↗
