60FET (2025)
GENERATOR

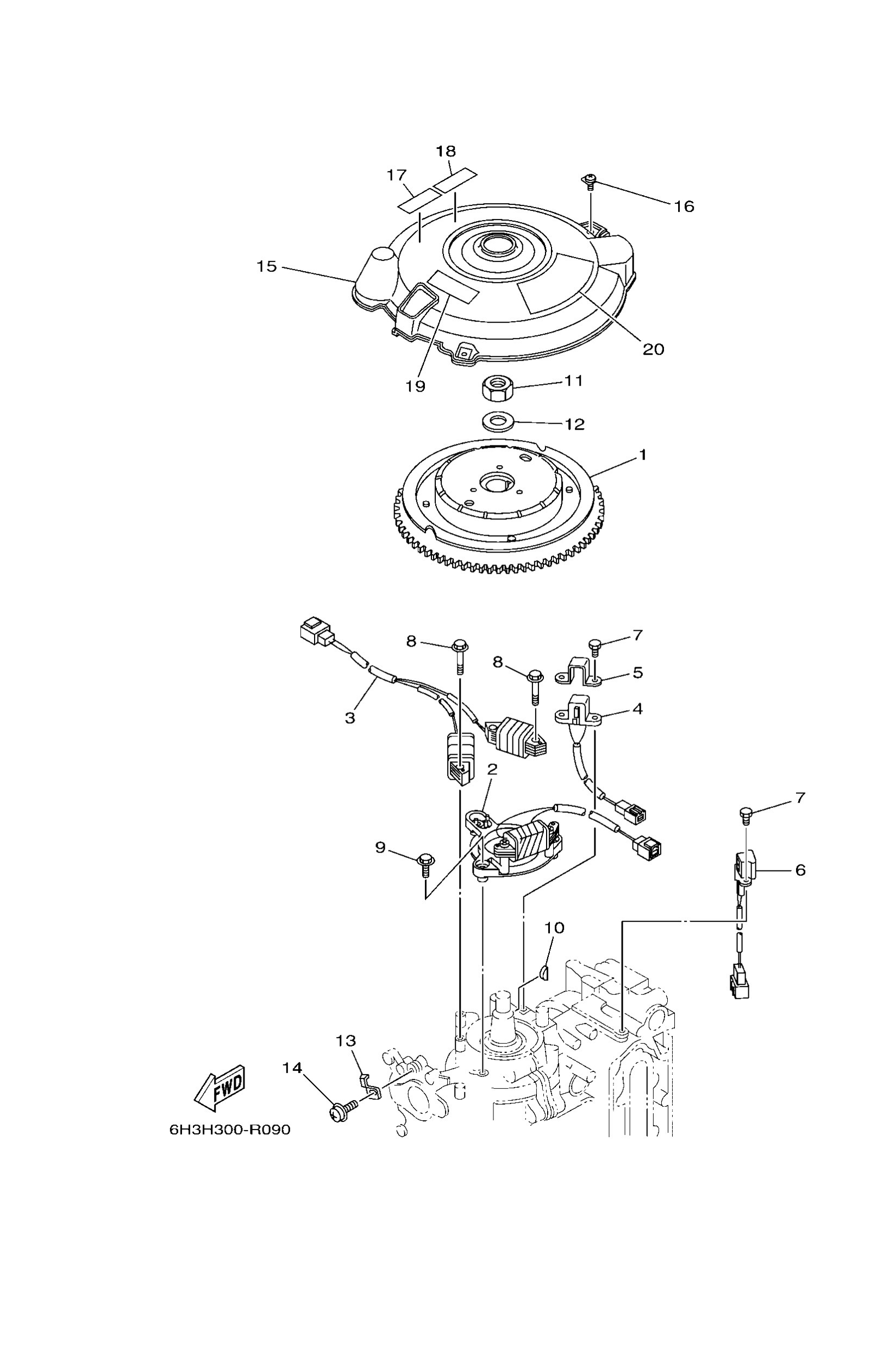

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6H28555001
Rotor assembly
Loading…
↗
2
6H28552002
Coil, charge
Loading…
↗
3
6H28553301
Coil, lighting
Loading…
↗
4
6H28558001
Coil, pulser
Loading…
↗
5
6H28558200
Attachment, pulser
Loading…
↗
6
6H28589501
Crank position sender
Loading…
↗
7
9709505012
Bolt, hexagon
Loading…
↗
8
97E9506535
Bolt, hexagon w/w deep recess
Loading…
↗
9
97E9506525
Bolt, hexagon w/w deep recess
Loading…
↗
10
9028005015
Key, woodruff
Loading…
↗
11
9017020137
Nut, hexagon(663)
Loading…
↗
12
9020121M18
Washer, plate (663)
Loading…
↗
13
6E58133200
Plate, timing
Loading…
↗
14
9798506210
Screw pan head
Loading…
↗
15
6H38133701
Cover, flywheel
Loading…
↗
16
9015906M23
Screw, with washer(6b0)
Loading…
↗
17
6EE8199541
Label, Warning
Loading…
↗
18
6EE8199551
FOR RUS,AFR
Label, Warning
Loading…
↗
19
6AG8199601
FOR RUS
Mark
Loading…
↗
20
6H31343721
Mark, caution
Loading…
↗
