70BETO (2010)
GENERATOR

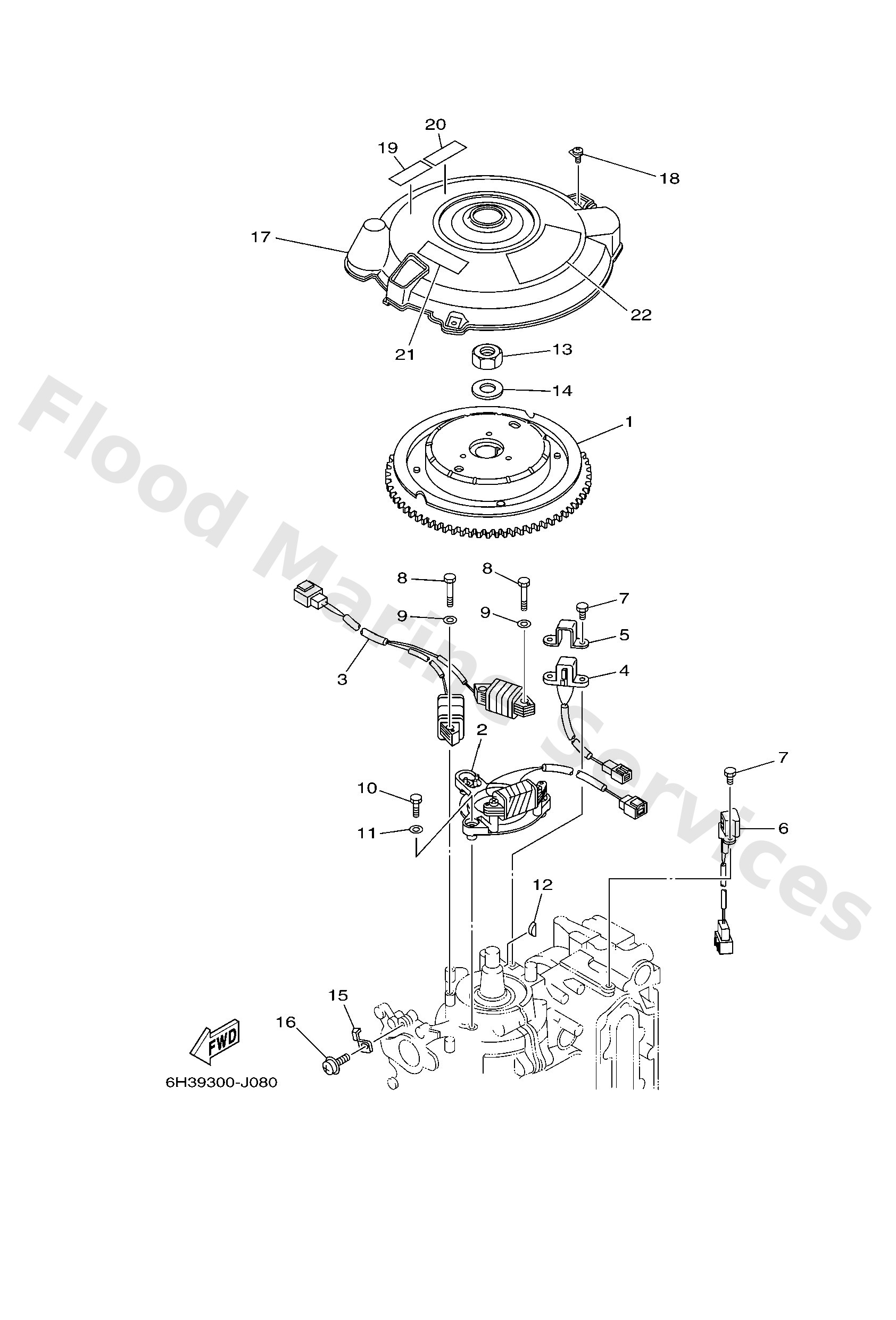

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6H28555000
Rotor assembly
Loading…
↗
2
6H28552002
Coil, charge
Loading…
↗
3
6H28553301
Coil, lighting
Loading…
↗
4
6H28558001
Coil, pulser
Loading…
↗
5
6H28558200
Attachment, pulser
Loading…
↗
6
6H28589501
Crank position sender
Loading…
↗
7
9709505012
Bolt, hexagon
Loading…
↗
8
9709506035
Bolt(j52)
Loading…
↗
9
9299506600
Washer, plain (646)
Loading…
↗
10
9709506025
Bolt
Loading…
↗
12
9028005015
Key, woodruff
Loading…
↗
13
9017020137
Nut, hexagon(663)
Loading…
↗
14
9020121M18
Washer, plate (663)
Loading…
↗
15
6E58133200
Plate, timing
Loading…
↗
16
9798506210
Screw pan head
Loading…
↗
17
6H38133701
Cover, flywheel
Loading…
↗
18
9015906M23
Screw, with washer(6b0)
Loading…
↗
19
6AH8199540
Label, warning
Loading…
↗
20
6AH8199550
Label, warning
Loading…
↗
21
6AG8199600
Mark
Loading…
↗
22
6H31343721
Mark, caution
Loading…
↗
