75AED (2002)
GENERATOR

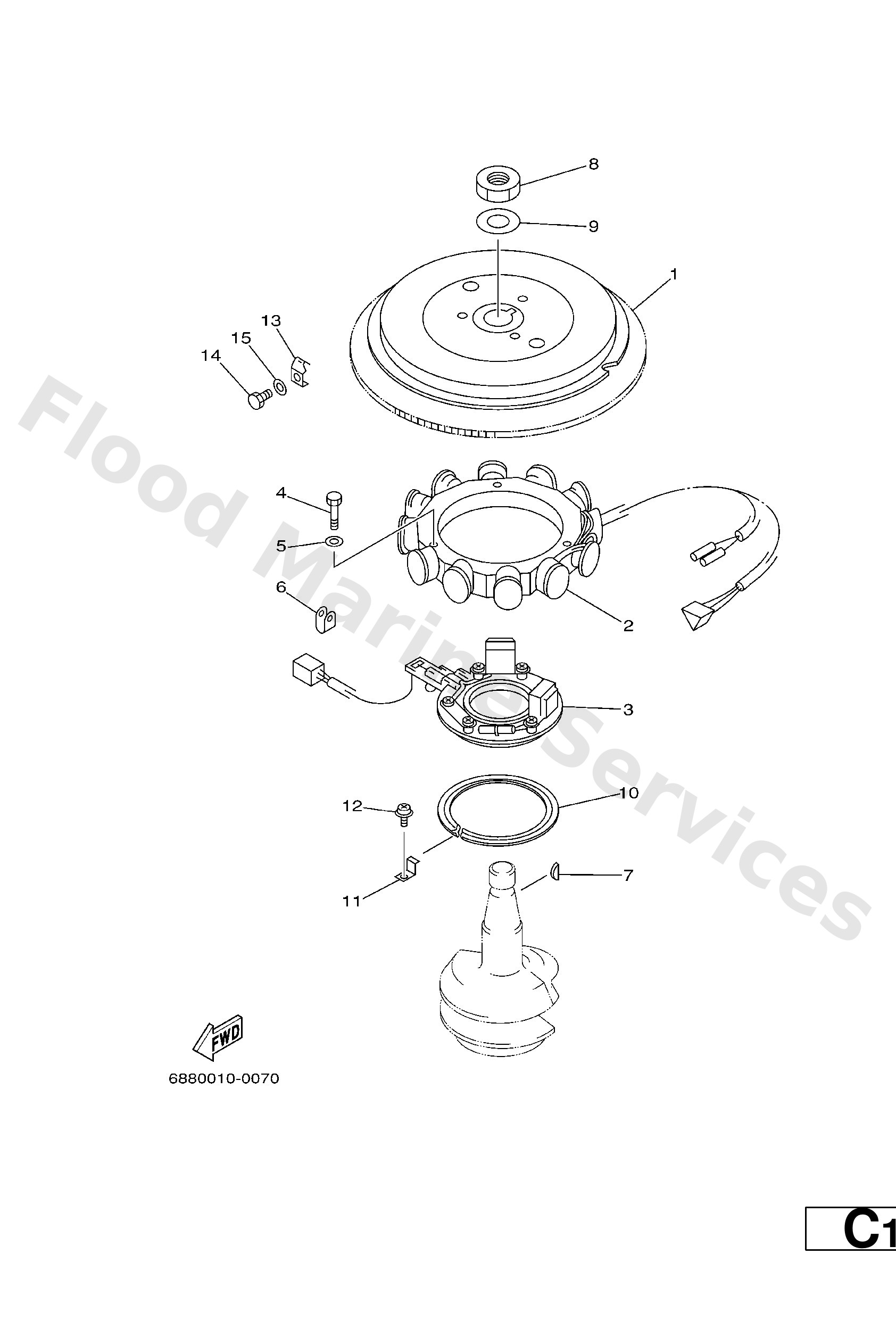

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6888555000
Rotor assembly
Loading…
↗
2
6888551001
Stator assembly
Loading…
↗
3
6888558000
Coil, pulser
Loading…
↗
4
97013--06030
Bolt
Loading…
↗
5
92903--06600
Washer, plain (646)
Loading…
↗
6
90464--12M00
8−
Loading…
↗
7
90280--05015
Key, woodruff
Loading…
↗
8
90170--20137
Nut, hexagon(663)
Loading…
↗
9
90201--21M18
Washer, plate (663)
Loading…
↗
10
688--41611--00
Retainer, magneto base 1
Loading…
↗
11
688--41612--00
Retainer, magneto base 2
Loading…
↗
12
9015906M31
Screw, with washer
Loading…
↗
13
688--81332--01
Plate, timing
Loading…
↗
14
97095--06010
Bolt
Loading…
↗
15
92995--06600
Washer, plain (646)
Loading…
↗
