75AED (2007)
GENERATOR

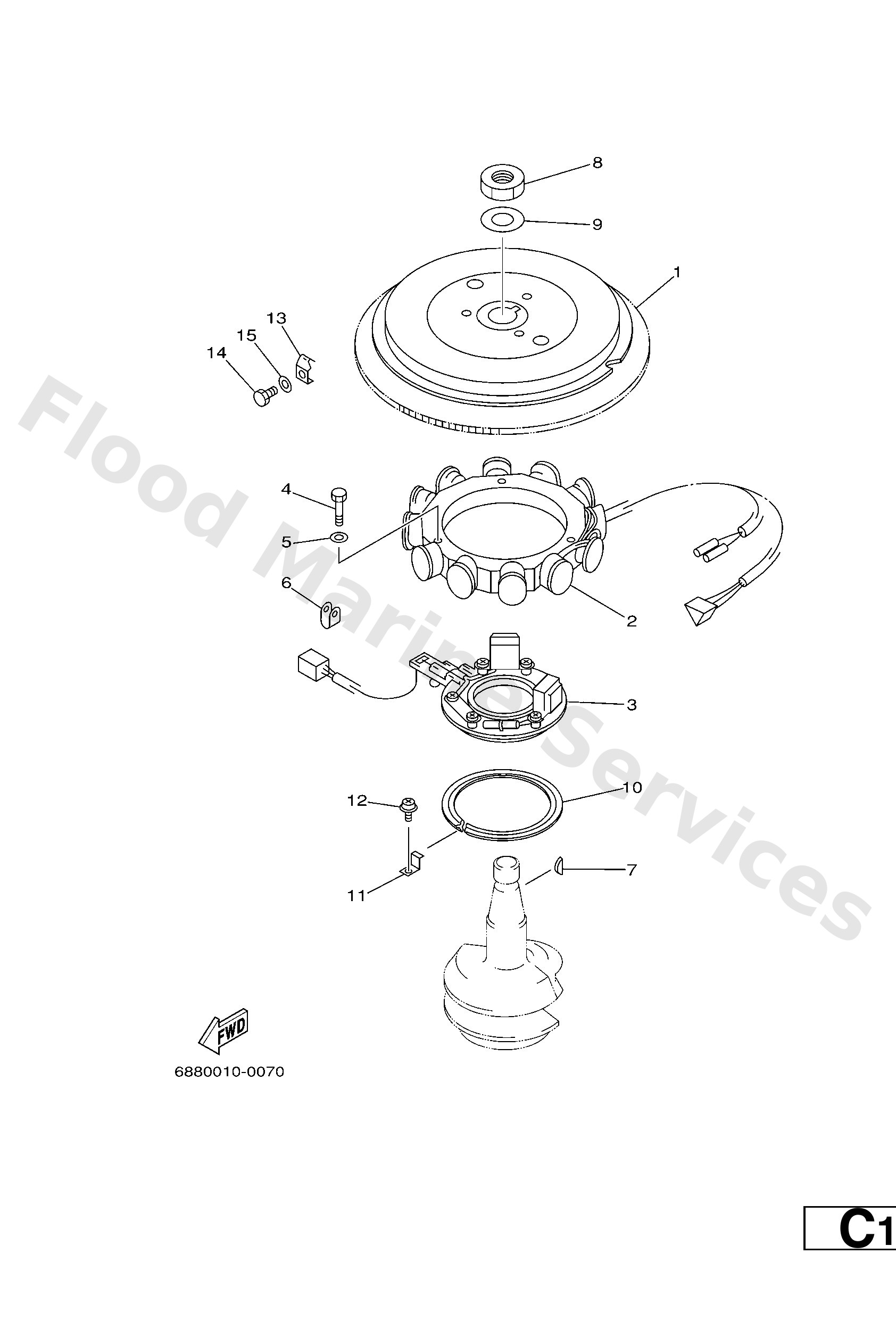

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6888555000
Rotor assembly
Loading…
↗
2
6888551001
Stator assembly
Loading…
↗
3
6888558000
Coil, pulser
Loading…
↗
4
9701306030
Bolt
Loading…
↗
5
9290306600
Washer, plain (646)
Loading…
↗
6
9046412M00
Clamp
Loading…
↗
7
9028005015
Key, woodruff
Loading…
↗
8
9017020137
Nut, hexagon(663)
Loading…
↗
9
9020121M18
Washer, plate (663)
Loading…
↗
10
6884161100
Retainer, magneto base 1
Loading…
↗
11
6884161200
Retainer, magneto base 2
Loading…
↗
12
9015906M31
Screw, with washer
Loading…
↗
13
6888133201
Plate, timing
Loading…
↗
14
9709506010
Bolt
Loading…
↗
15
9299506600
Washer, plain (646)
Loading…
↗
