8CMH (2012)
GENERATOR

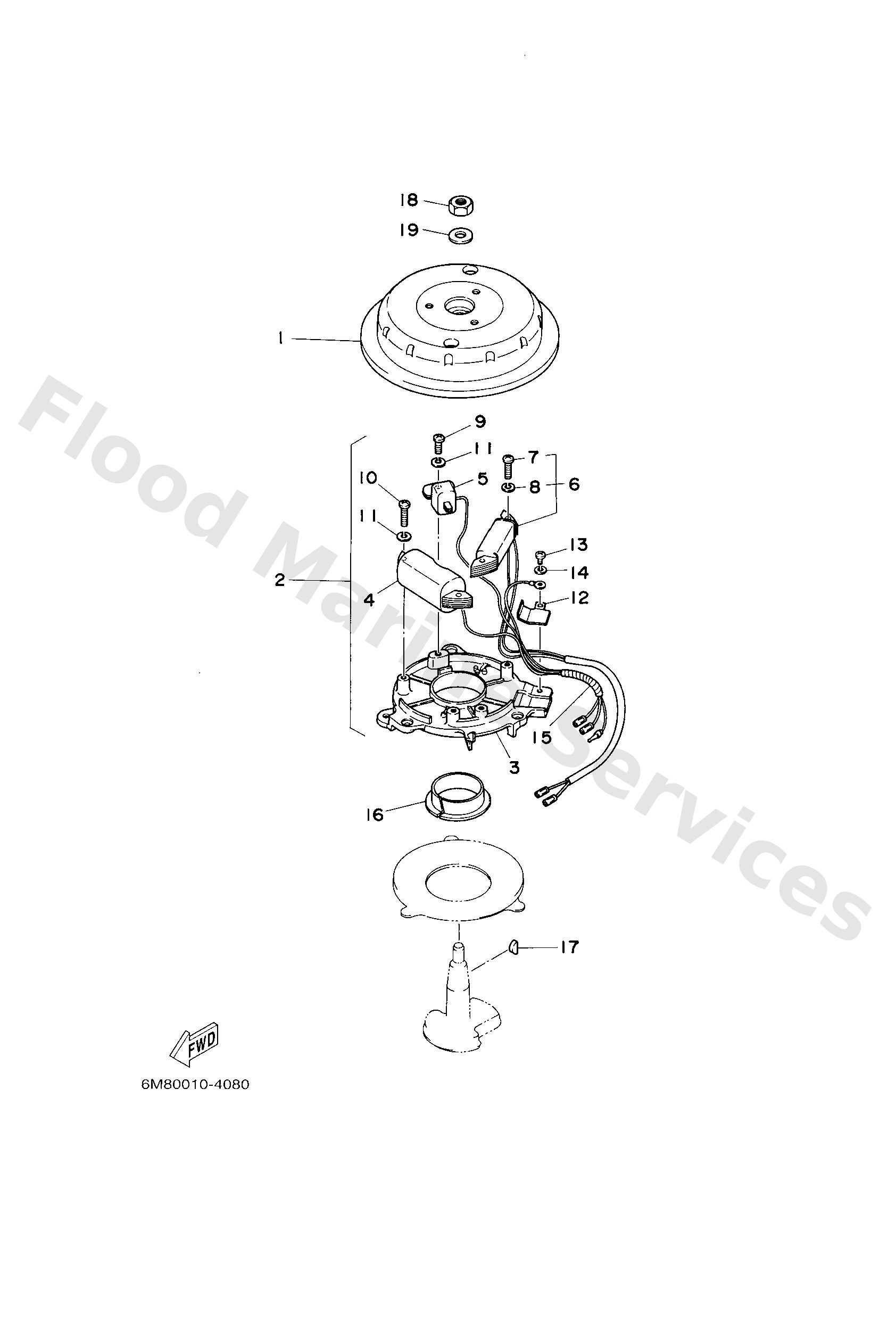

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6G18555071
Rotor assembly
Loading…
↗
2
6G185560F0
Base ass'y
Loading…
↗
3
6G18550970
Base, magneto
Loading…
↗
4
6E78552070
Coil assembly
Loading…
↗
5
6E78558070
Pulser coil ass'y
Loading…
↗
6
6E781303A0
Lighting coil ass'y
Loading…
↗
7
9780205025
Screw, panhead (a93)
Loading…
↗
8
9290205100
Ybs67-5 washer, spring
Loading…
↗
9
9780205016
Screw, pan head(6b0)
Loading…
↗
10
9780205020
Screw, pan head
Loading…
↗
12
6G18554870
Cord, clamp
Loading…
↗
13
9780204008
Screw, pan head (713)
Loading…
↗
14
9290204100
Ybs67-4 washer, spring
Loading…
↗
15
6G18551570
Wire, lead
Loading…
↗
16
9038644M42
Bushing (6g1)
Loading…
↗
17
9028004M06
Key, woodruff(6a1)
Loading…
↗
18
9017010113
Nut, crank shaft (650)
Loading…
↗
19
9020110126
Washer, plate (26h)
Loading…
↗
