Yamaha Outboard Parts - GENERATOR - 9.9FMH (2023) | Flood Marine
New Search
Parts
New Outboards
Home
9.9FMH (2023)
GENERATOR

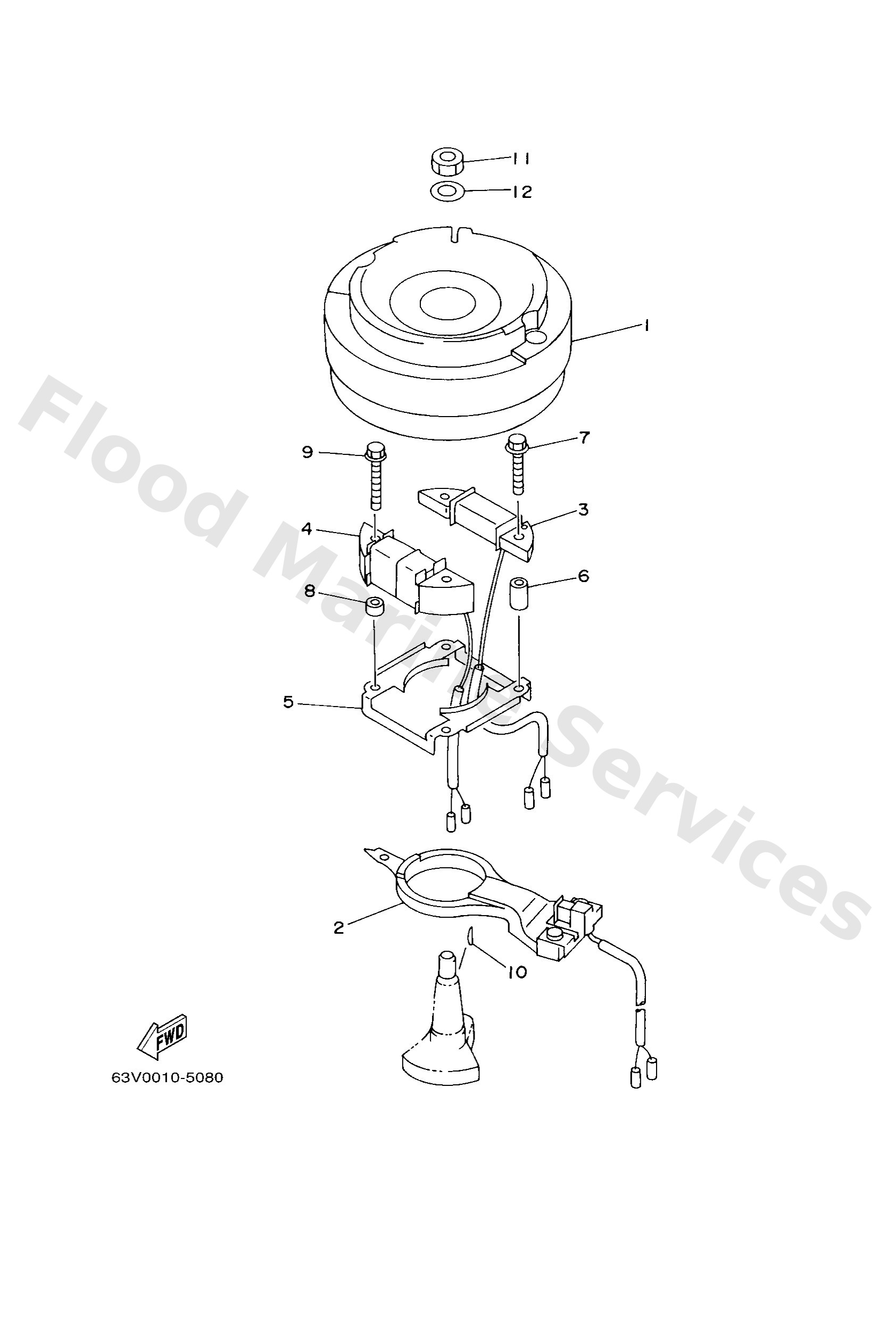

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
63V8555011
Rotor assembly
Loading…
↗
2
63V8558001
Coil, pulser
Loading…
↗
3
63V8552001
Coil, charge
Loading…
↗
4
63V8553300
Coil, lighting
Loading…
↗
5
63V4161100
Retainer, magneto base
Loading…
↗
6
9038706M53
Collar (1m1)
Loading…
↗
7
9010506M68
Bolt, washer based(63v)
Loading…
↗
8
9038706M24
Collar(6r8)
Loading…
↗
9
9010506M69
Bolt, washer based(63v)
Loading…
↗
10
9028005013
Key, woodruff
Loading…
↗
11
9017012066
Nut, hexagon 6481155500
Loading…
↗
12
9020112472
Washer, plate (4n0)
Loading…
↗
