90AETO (2003)
GENERATOR

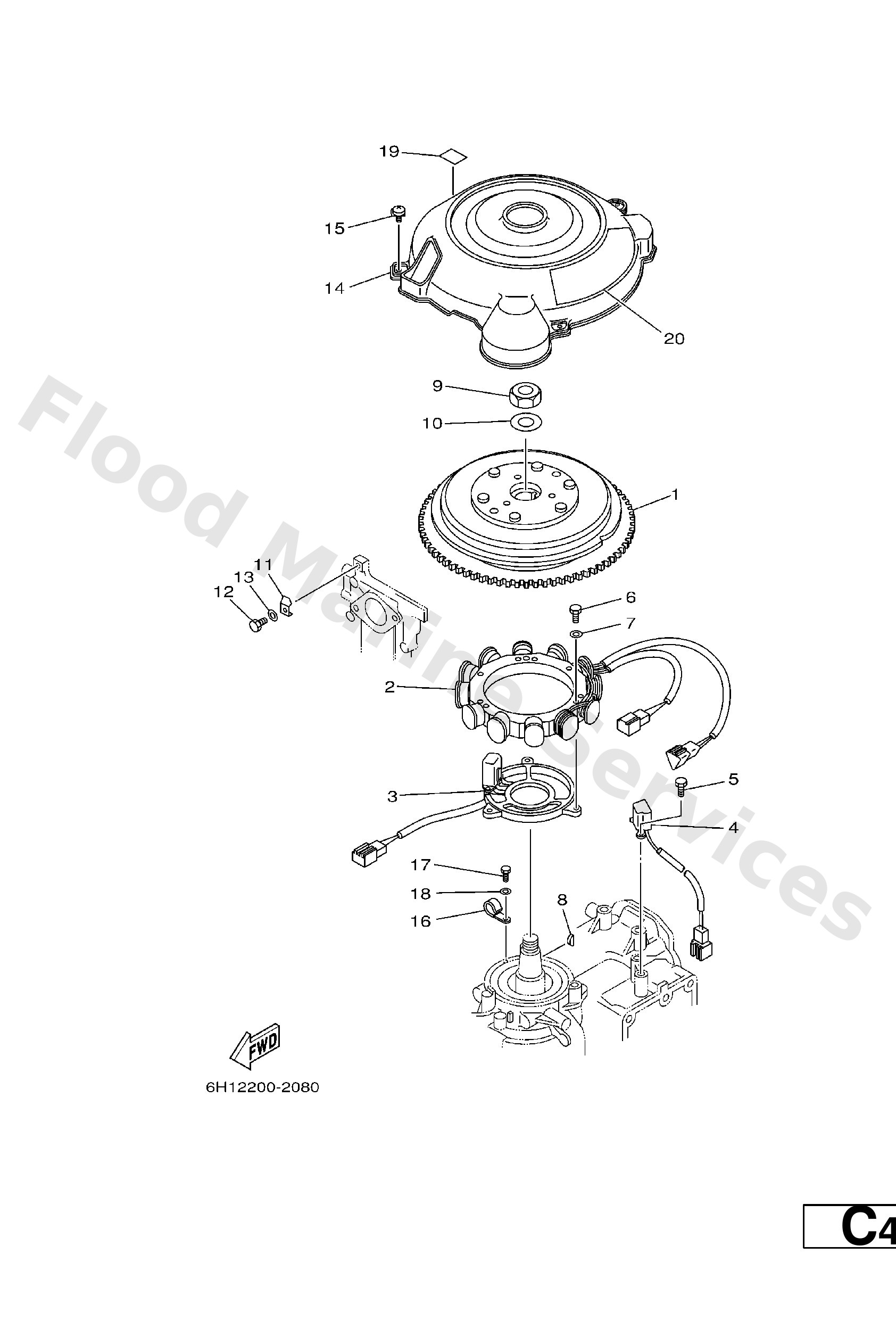

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6H0--85550--00
Rotor assembly
Loading…
↗
2
6H0--85510--03
Stator assembly
Loading…
↗
3
6H0--85580--01
Coil, pulser
Loading…
↗
4
6H2--85895--01
Crank position sender
Loading…
↗
5
97095--05012
Bolt, hexagon
Loading…
↗
6
97095--06040
Bolt (682)
Loading…
↗
7
92995--06600
Washer, plain (646)
Loading…
↗
8
90280--05015
Key, woodruff
Loading…
↗
9
90170--20137
Nut, hexagon(663)
Loading…
↗
10
90201--21M18
Washer, plate (663)
Loading…
↗
11
688--81332--01
Plate, timing
Loading…
↗
12
97095--06010
Bolt
Loading…
↗
14
6H1--81337--01
Cover, flywheel
Loading…
↗
15
90159--06M20
Screw, with washer(6h0)
Loading…
↗
16
90465--06M90
Clamp
Loading…
↗
17
97095--06012
Bolt(gh1)
Loading…
↗
19
6H1--14488--00
Label, caution
Loading…
↗
20
6H1--13437--21
Mark, caution
Loading…
↗
