90AETO (2005)
GENERATOR

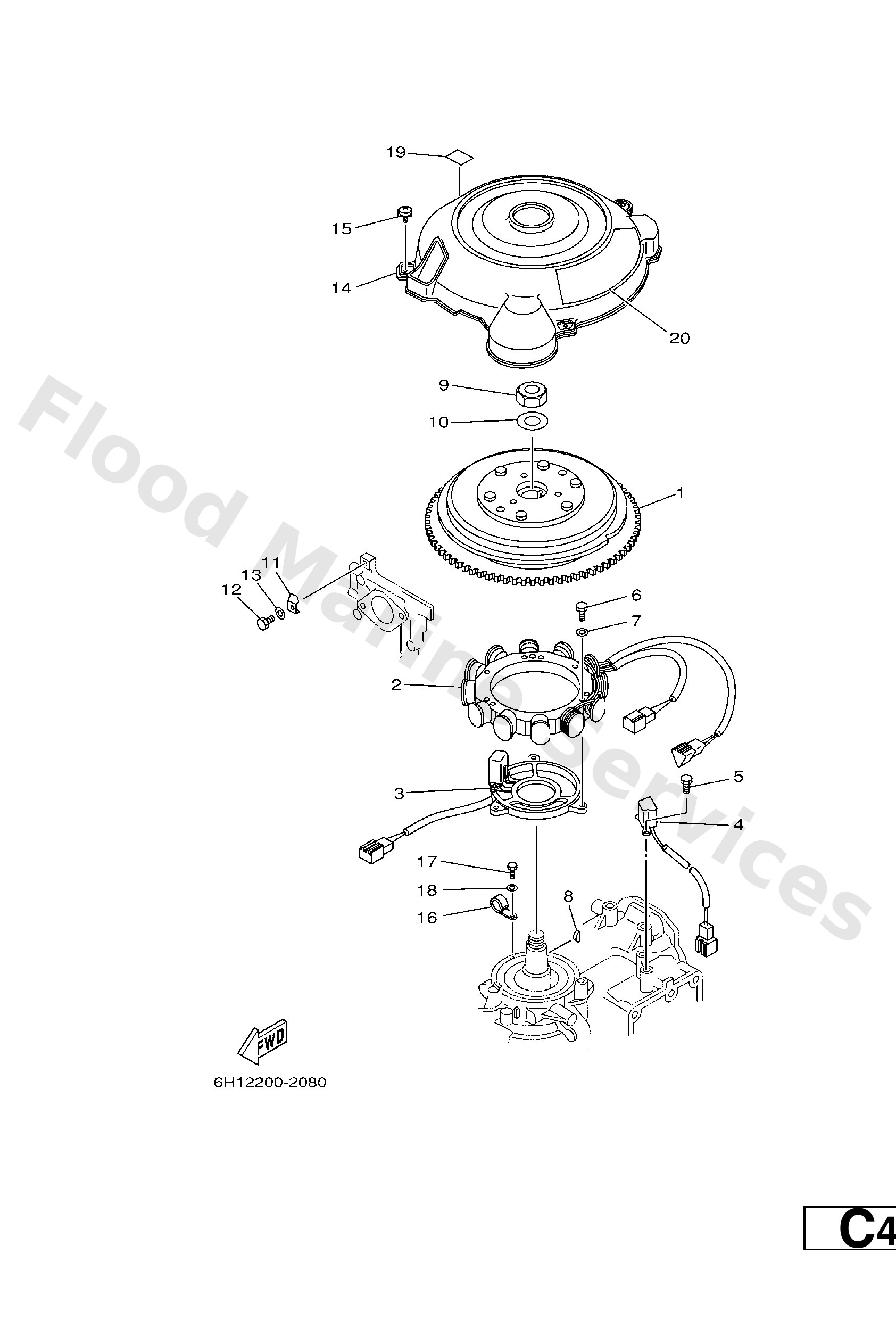

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6H08555000
Rotor assembly
Loading…
↗
2
6H08551003
Stator assembly
Loading…
↗
3
6H08558001
Coil, pulser
Loading…
↗
4
6H28589501
Crank position sender
Loading…
↗
5
9709505012
Bolt, hexagon
Loading…
↗
6
9709506040
Bolt (682)
Loading…
↗
7
9299506600
Washer, plain (646)
Loading…
↗
8
9028005015
Key, woodruff
Loading…
↗
9
9017020137
Nut, hexagon(663)
Loading…
↗
10
9020121M18
Washer, plate (663)
Loading…
↗
11
6888133201
Plate, timing
Loading…
↗
12
9709506010
Bolt
Loading…
↗
14
6H18133701
Cover, flywheel
Loading…
↗
15
9015906M20
Screw, with washer(6h0)
Loading…
↗
16
9046506M90
Clamp
Loading…
↗
17
9709506012
Bolt(gh1)
Loading…
↗
19
6H11448800
Label, caution
Loading…
↗
20
6H11343721
Mark, caution
Loading…
↗
