90AETO (2018)
GENERATOR

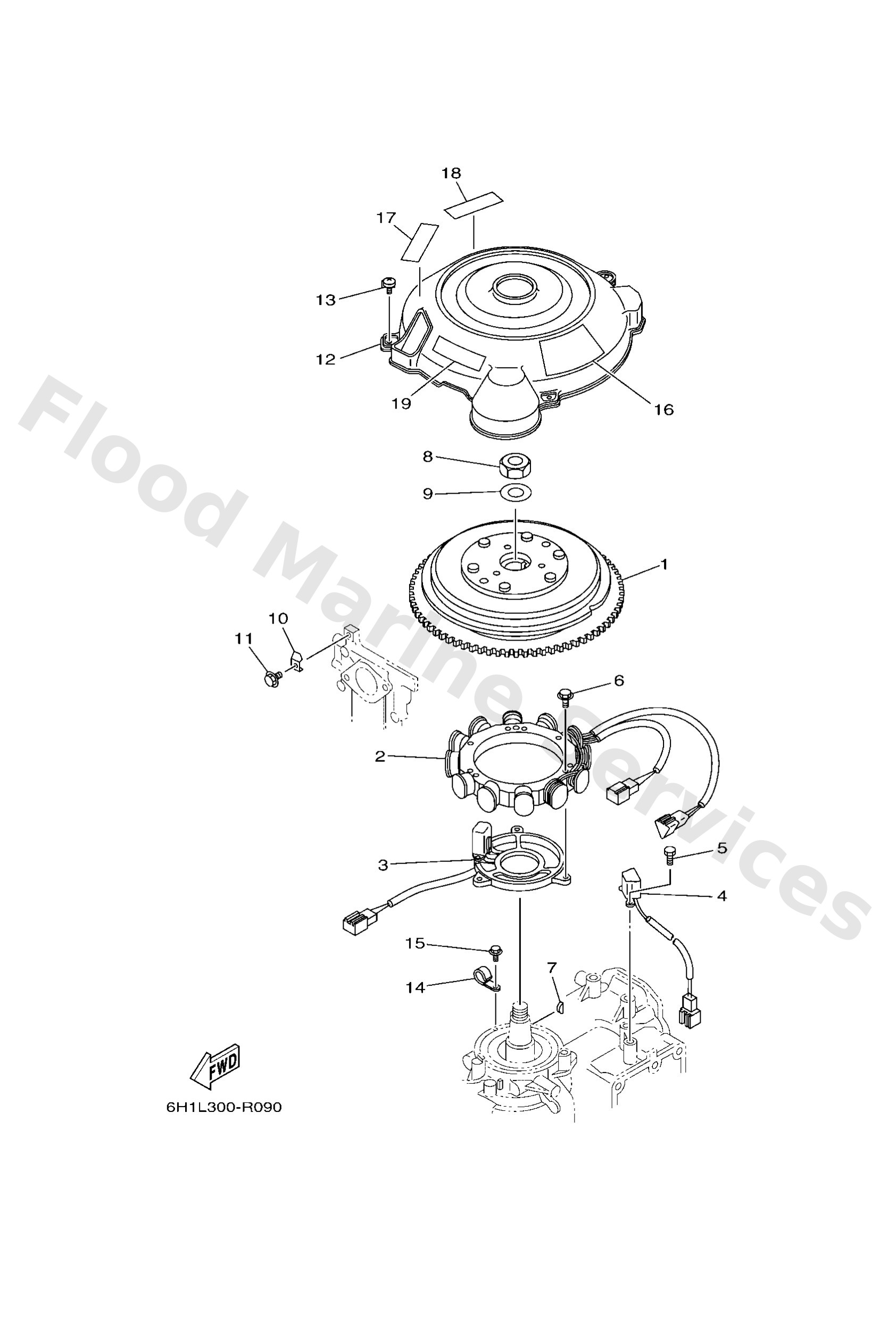

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6H08555000
Rotor assembly
Loading…
↗
2
6H08551003
Stator assembly
Loading…
↗
3
6H08558001
Coil, pulser
Loading…
↗
4
6H28589501
Crank position sender
Loading…
↗
5
9709505012
Bolt, hexagon
Loading…
↗
6
9759506540
Bolt, hexagon w/w deep recess
Loading…
↗
7
9028005015
Key, woodruff
Loading…
↗
8
9017020137
Nut, hexagon(663)
Loading…
↗
9
9020121M18
Washer, plate (663)
Loading…
↗
10
6888133201
Plate, timing
Loading…
↗
11
9759506510
Bolt, hexagon w/w deep recess
Loading…
↗
12
6H18133701
Cover, flywheel
Loading…
↗
13
9015906M20
Screw, with washer(6h0)
Loading…
↗
14
9046506M90
Clamp
Loading…
↗
15
9759506512
Bolt, hexagon w/w deep recess
Loading…
↗
16
6H11343721
Mark, caution
Loading…
↗
17
6EE8199540
Label, warning
Loading…
↗
18
6EE8199550
Label, warning
Loading…
↗
19
6AG8199600
Mark
