E115AET (2003)
GENERATOR

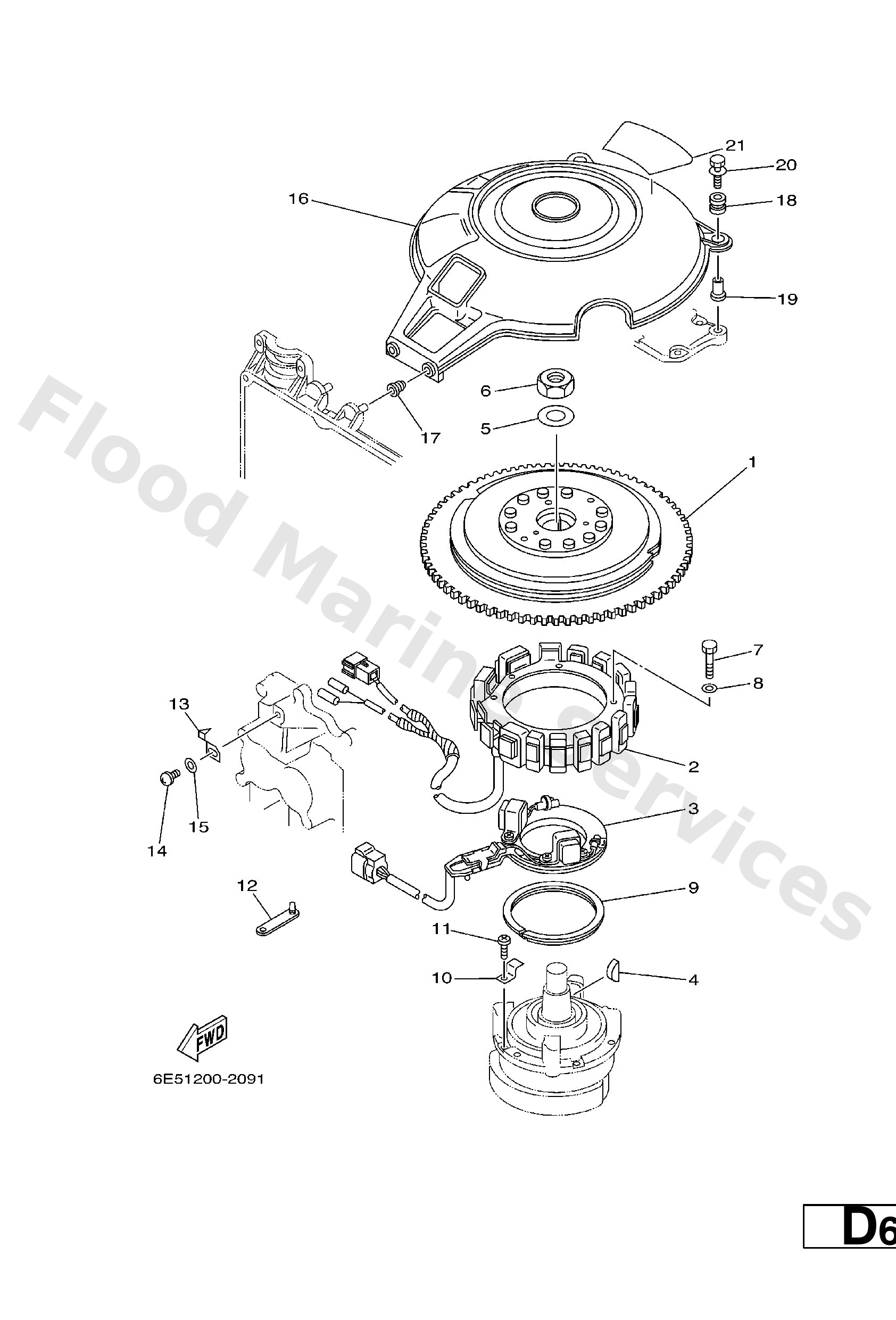

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6E5−85550−00
Rotor assembly
Loading…
↗
2
6E5−85510−01
Stator assembly
Loading…
↗
3
6E5−85580−00
Coil, pulser
Loading…
↗
4
90280−05015
Key, woodruff
Loading…
↗
5
90201−21M18
Washer, plate (663)
Loading…
↗
6
90170−20137
Nut, hexagon(663)
Loading…
↗
7
97013−06060
Bolt, hexagon
Loading…
↗
8
92903−06600
Washer, plain (646)
Loading…
↗
9
688−41611−00
Retainer, magneto base 1
Loading…
↗
10
688−41612−00
Retainer, magneto base 2
Loading…
↗
11
97880−06018
Screw, pan head(6e5)
Loading…
↗
12
90464−12M00
Clamp
Loading…
↗
13
6E5−81332−00
Plate, timing
Loading…
↗
14
97885−06010
Screw pan head
Loading…
↗
15
92995−06600
Washer, plain (646)
Loading…
↗
16
6E5−81337−01
Cover, flywheel
Loading…
↗
17
6G5−82317−00
Damper
Loading…
↗
18
6A0−82317−00
Damper, ignition coil
Loading…
↗
19
624−42542−00
Collar
Loading…
↗
20
90119−06M65
Bolt, with washer
Loading…
↗
21
6E5−14488−00
Label, caution
