E40XMH (2002)
GENERATOR

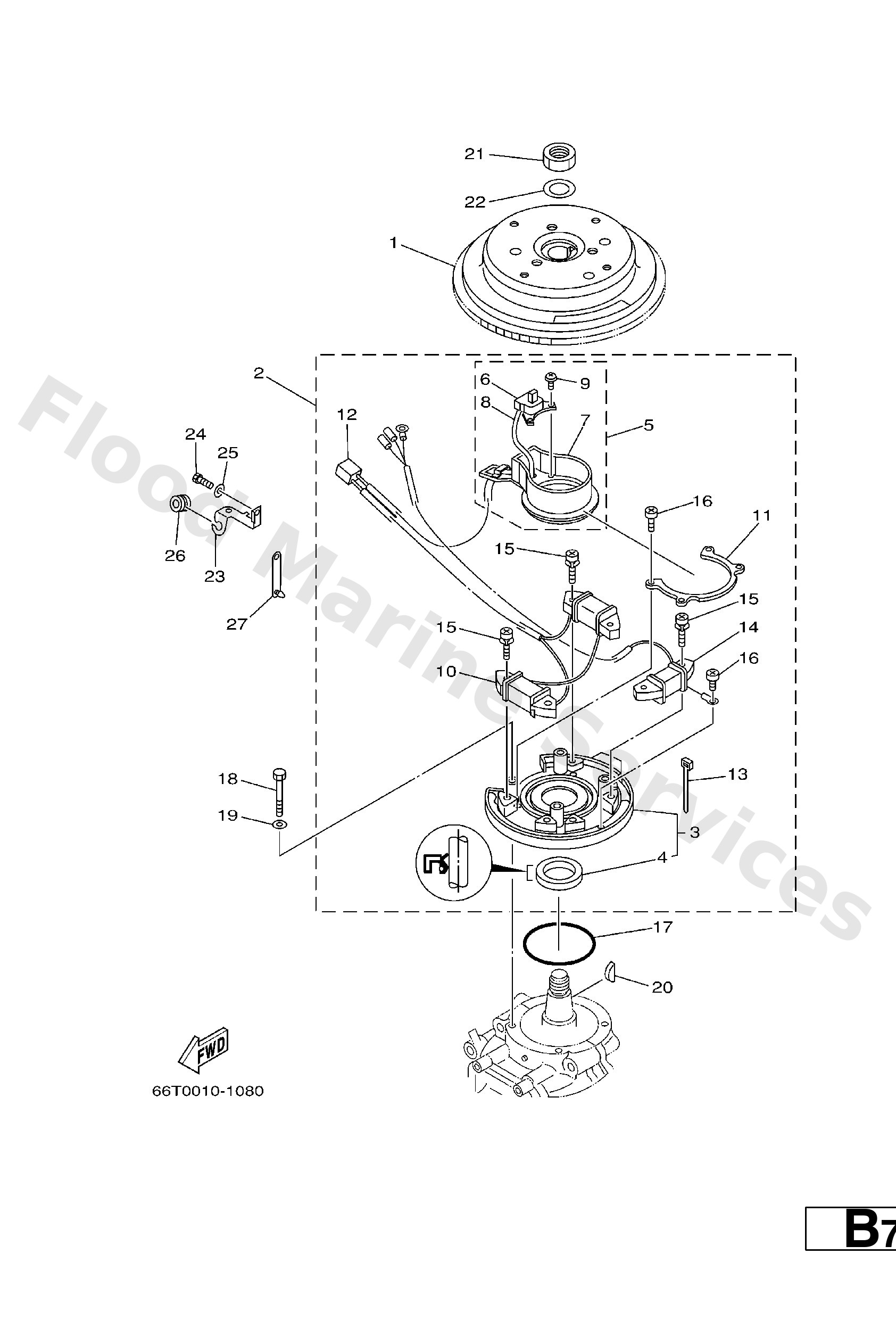

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
66T--85550--10
Rotor assembly
Loading…
↗
1
66T8555000
Rotor assembly
Loading…
↗
2
66T--85560--01
Base assembly
Loading…
↗
3
66T--85561--00
Base, magneto
Loading…
↗
4
93102--35008
Oil seal
Loading…
↗
5
66T--85580--00
Pulser coil assembly
Loading…
↗
6
66T--85596--00
Coil, pulser 1
Loading…
↗
7
66T--85582--00
Attachment, pulser
Loading…
↗
8
66T--85515--00
Lead wire assembly
Loading…
↗
9
97902--04108
Screw, with washer
Loading…
↗
10
66T--85520--00
Coil, charge
Loading…
↗
11
66T--41611--00
Retainer, magneto base
Loading…
↗
12
9E471--04305
Housing, connector (f-4-b)
Loading…
↗
13
66T--81328--00
Clamp
Loading…
↗
14
66T--85533--00
Coil, lighting
Loading…
↗
15
97902--06125
Screw, pan head (76t)
Loading…
↗
16
97802--04006
Screw, pan head(3xp)
Loading…
↗
17
93210--75M51
O-ring (6f5)
Loading…
↗
18
97095--06040
Bolt (682)
Loading…
↗
19
92995--06600
Washer, plain (646)
Loading…
↗
20
90280--05015
Key, woodruff
Loading…
↗
21
90170--20137
Nut, hexagon(663)
Loading…
↗
22
90201--21M18
Washer, plate (663)
Loading…
↗
23
90465--15M74
Clamp
Loading…
↗
24
97095--06016
Bolt, hexagon deep recess
Loading…
↗
26
90480--10M71
Grommet
Loading…
↗
27
90464--12M00
8−
