E60HMHD (2010)
GENERATOR

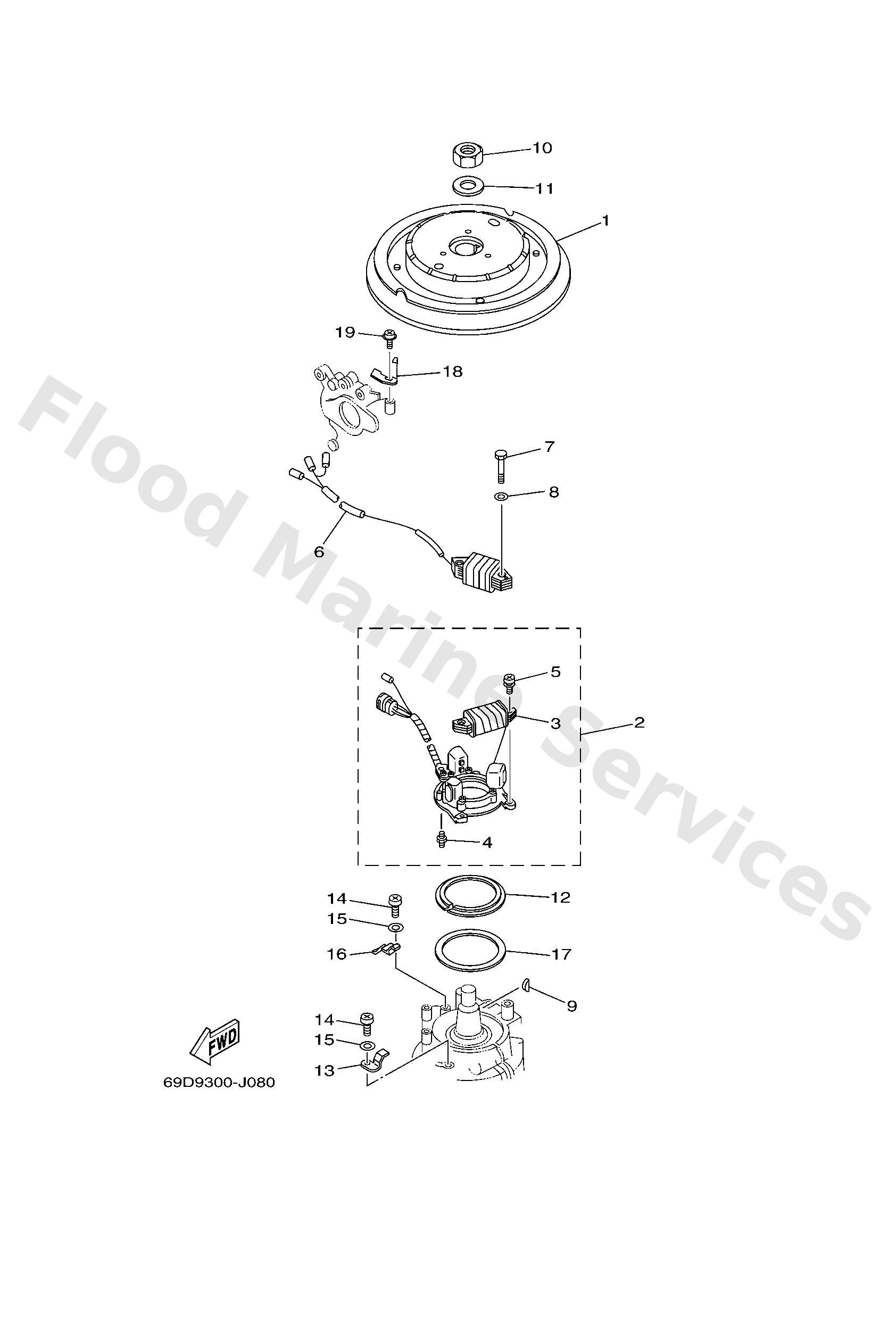

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6K58555010
Rotor assembly
Loading…
↗
2
6H385510A1
Stator assembly
Loading…
↗
3
6H38552000
Charge coil assembly
Loading…
↗
4
6638551800
Joint, ball
Loading…
↗
5
9790205125
Screw, with washer(6m6)
Loading…
↗
6
6H385533A0
Lighting coil assembly
Loading…
↗
7
9701306030
Bolt
Loading…
↗
8
9290306600
Washer, plain (646)
Loading…
↗
9
9028005015
Key, woodruff
Loading…
↗
10
9017020137
Nut, hexagon(663)
Loading…
↗
11
9020121M18
Washer, plate (663)
Loading…
↗
12
6H44161100
Retainer, magneto base
Loading…
↗
13
6H34161200
Retainer, magneto base 2
Loading…
↗
14
9788506012
Screw, pan head(62j)
Loading…
↗
15
9299506600
Washer, plain (646)
Loading…
↗
16
6H34161210
Retainer, magneto base 2
Loading…
↗
17
6K54161800
Washer, magneto
Loading…
↗
18
6K58133260
Plate, timing
Loading…
↗
19
9798506210
Screw pan head
Loading…
↗
