E60HWHD (2003)
GENERATOR

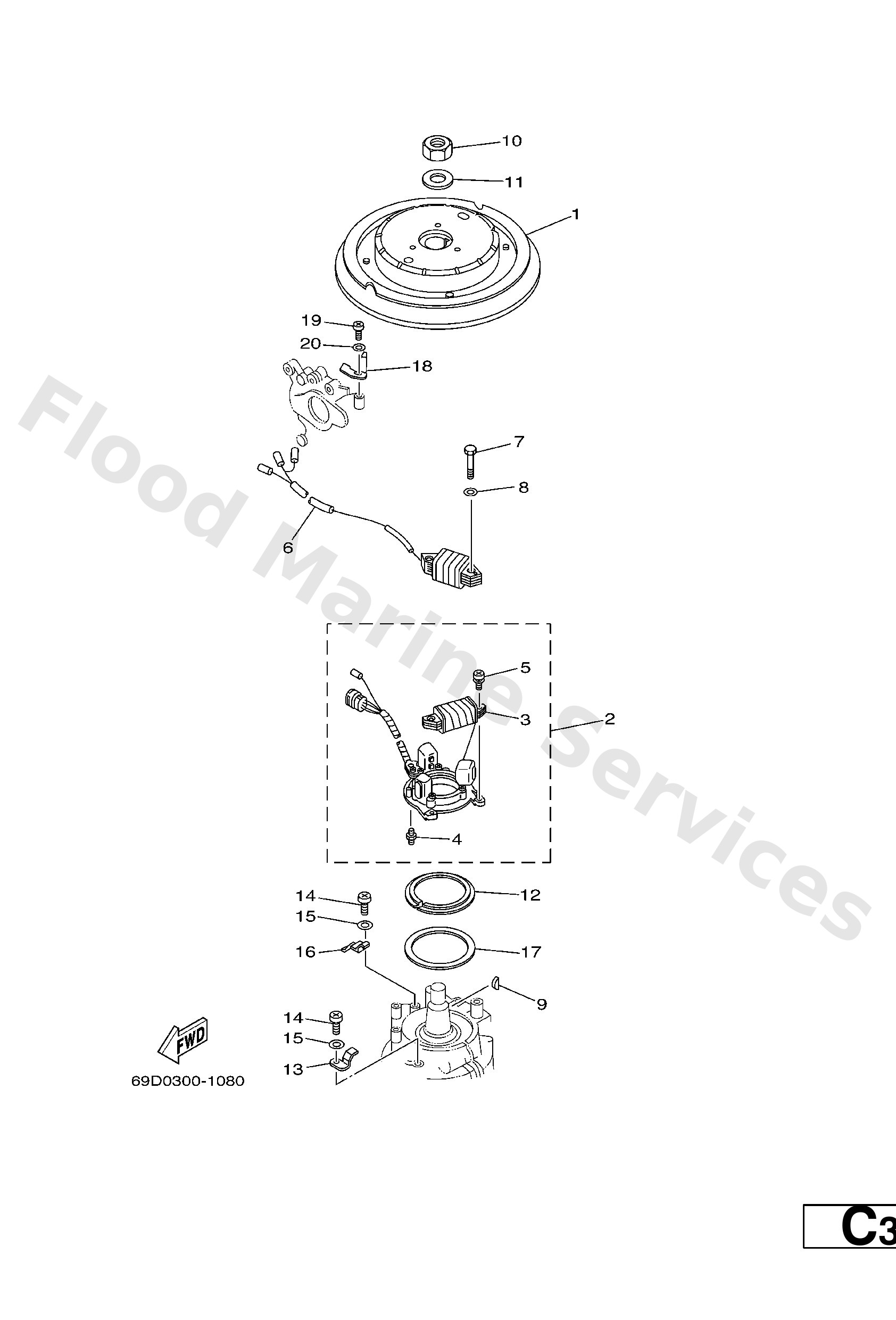

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6K5−85550−A0
Rotor assembly
Loading…
↗
1
6K5−85550−10
Rotor assembly
Loading…
↗
2
6H3−85510−A1
Stator assembly
Loading…
↗
3
6H3−85520−00
Charge coil assembly
Loading…
↗
4
663−85518−00
Joint, ball
Loading…
↗
5
97902−05125
Screw, with washer(6m6)
Loading…
↗
6
6H3−85533−A0
Lighting coil assembly
Loading…
↗
7
97013−06030
Bolt
Loading…
↗
8
92903−06600
Washer, plain (646)
Loading…
↗
9
90280−05015
Key, woodruff
Loading…
↗
10
90170−20137
Nut, hexagon(663)
Loading…
↗
11
90201−21M18
Washer, plate (663)
Loading…
↗
12
6H4−41611−00
Retainer, magneto base
Loading…
↗
13
6H3−41612−00
Retainer, magneto base 2
Loading…
↗
14
97885−06012
Screw, pan head(62j)
Loading…
↗
15
92995−06600
Washer, plain (646)
Loading…
↗
16
6H3−41612−10
Retainer, magneto base 2
Loading…
↗
17
6K5−41618−00
Washer, magneto
Loading…
↗
18
6K5−81332−60
Plate, timing
Loading…
↗
18
6K5−81332−00
Plate, Timing
Loading…
↗
19
97885−06010
Screw pan head
Loading…
↗
