EK9.9HMH (2003)
GENERATOR

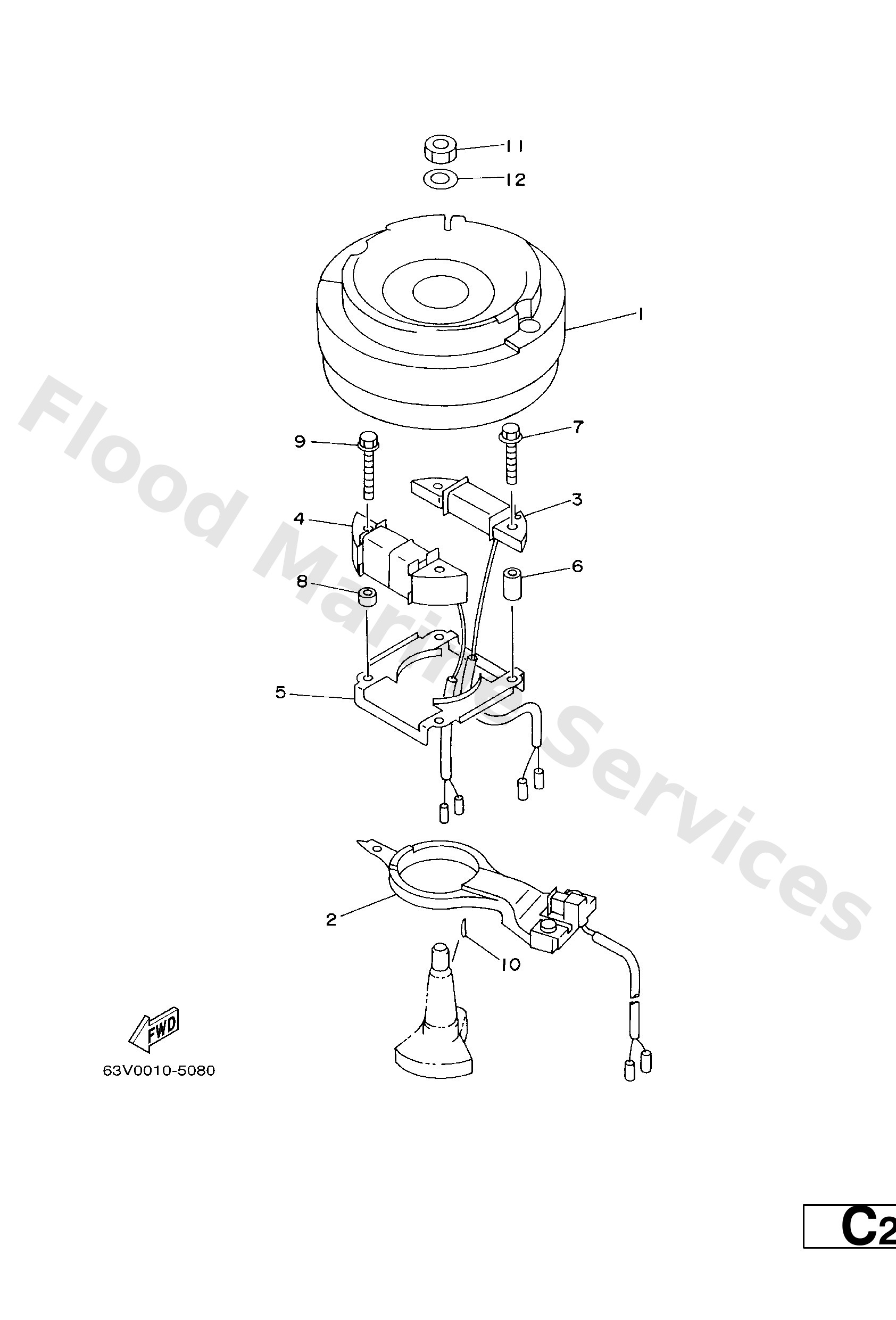

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
63V−85550−11
Rotor assembly
Loading…
↗
2
63V−85580−01
Coil, pulser
Loading…
↗
3
63V−85520−00
Coil, charge
Loading…
↗
4
63V−85533−00
EK15N−FOR AFRICA
Coil, lighting
Loading…
↗
5
63V−41611−00
Retainer, magneto base
Loading…
↗
6
90387−06M53
Collar (1m1)
Loading…
↗
7
90105−06M68
Bolt, washer based(63v)
Loading…
↗
8
90387−06M24
EK15N−FOR AFRICA
Collar(6r8)
Loading…
↗
9
97095−06012
Bolt(gh1)
Loading…
↗
9
90105−06M69
EK15N−FOR AFRICA
Bolt, washer based(63v)
Loading…
↗
10
90280−05013
Key, woodruff
Loading…
↗
11
90170−12066
Nut, hexagon 6481155500
Loading…
↗
12
90201−12472
Washer, plate (4n0)
Loading…
↗
