F100BET (2005)
GENERATOR

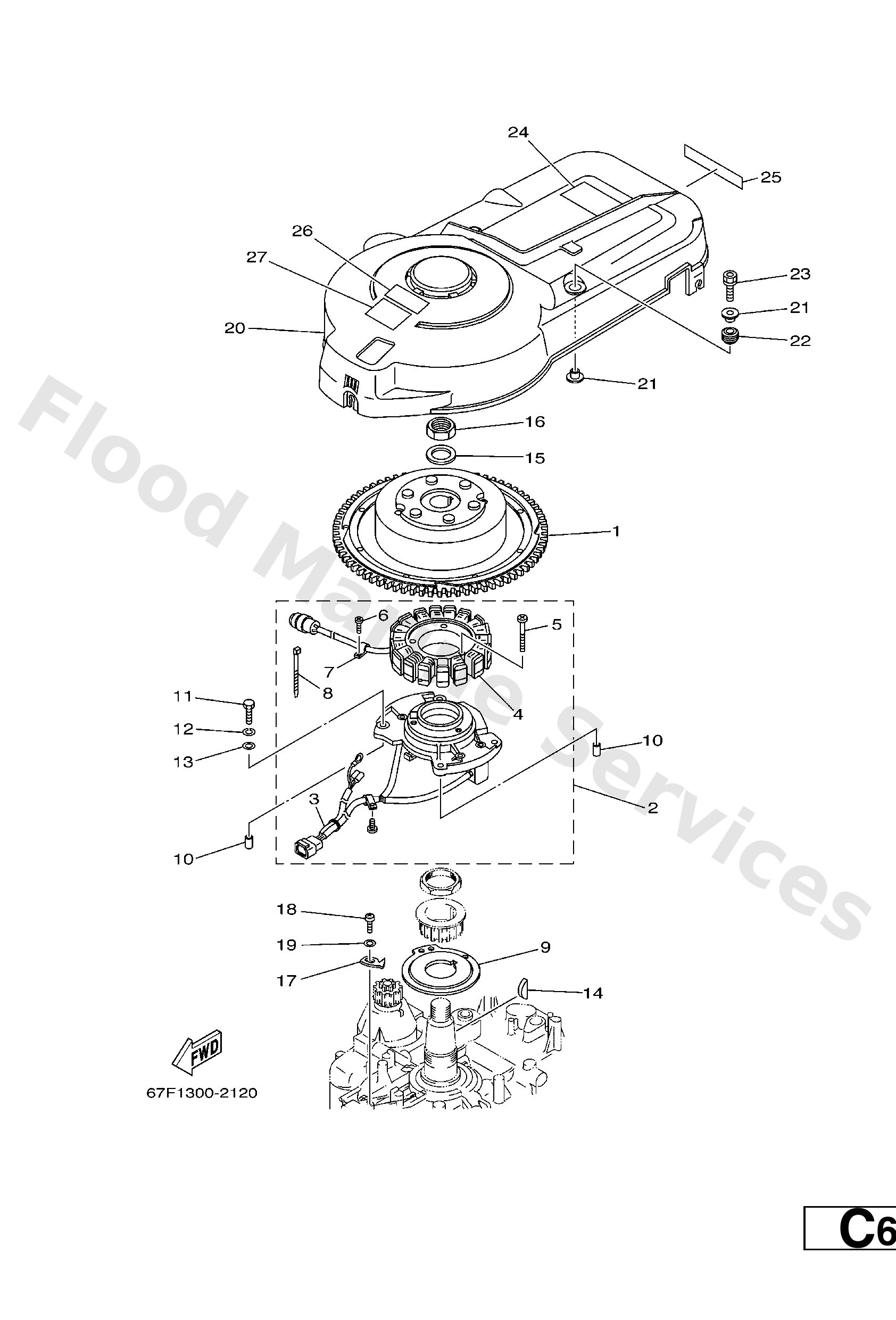

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
67F8555000
Rotor assembly
Loading…
↗
2
67F8556001
Base assembly
Loading…
↗
3
67F8558000
Coil, pulser
Loading…
↗
4
67F8551001
Stator assembly
Loading…
↗
5
63D8134520
Screw, pan
Loading…
↗
6
9760704110
Screw, pan head with washer (s
Loading…
↗
7
4458132820
Clamp, read
Loading…
↗
8
66T8132800
Clamp
Loading…
↗
9
67F8167300
Rotor
Loading…
↗
10
9953008012
Pin, dowel(6g8)
Loading…
↗
11
9709506030
Bolt(jf7)
Loading…
↗
12
9299506100
Washer(6a1)
Loading…
↗
13
9299506600
Washer, plain (646)
Loading…
↗
14
9028005015
Key, woodruff
Loading…
↗
15
9020124014
Washer, plate
Loading…
↗
16
9017924002
Nut
Loading…
↗
17
6D88133200
Plate, timing
Loading…
↗
18
9788506010
Screw pan head
Loading…
↗
20
67F8133701
Cover, flywheel
Loading…
↗
21
9038706M71
Collar (6g8)
Loading…
↗
22
9048015M31
Grommet (6g1)
Loading…
↗
23
9011906M92
Bolt, with washer
Loading…
↗
24
67F1213860
Mark, Caution
Loading…
↗
25
68V1343760
Mark, caution
Loading…
↗
26
6A18362541
Mark 5
Loading…
↗
27
6A18362551
Mark 5
Loading…
↗
