F100CET (2003)
GENERATOR

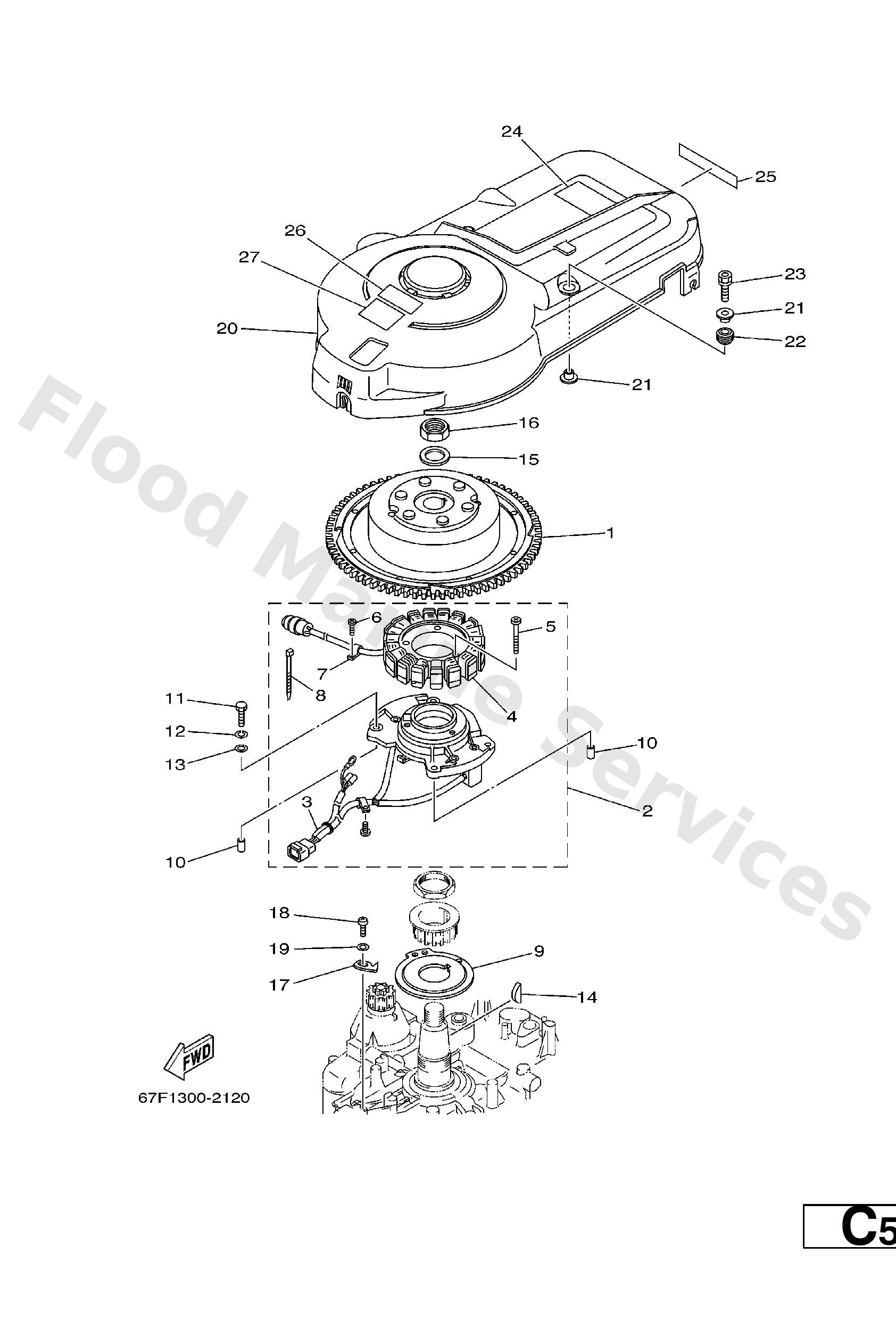

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
67F−85550−00
Rotor assembly
Loading…
↗
2
67F−85560−01
Base assembly
Loading…
↗
3
67F−85580−00
Coil, pulser
Loading…
↗
4
67F−85510−01
Stator assembly
Loading…
↗
5
63D−81345−20
Screw, pan
Loading…
↗
6
97607−04110
Screw, pan head with washer (s
Loading…
↗
7
445−81328−20
Clamp, read
Loading…
↗
8
66T−81328−00
Clamp
Loading…
↗
9
67F−81673−00
Rotor
Loading…
↗
10
99530−08012
Pin, dowel(6g8)
Loading…
↗
11
97095−06030
Bolt(jf7)
Loading…
↗
12
92995−06100
Washer(6a1)
Loading…
↗
13
92995−06600
Washer, plain (646)
Loading…
↗
14
90280−05015
Key, woodruff
Loading…
↗
15
90201−24014
Washer, plate
Loading…
↗
16
90179−24002
Nut
Loading…
↗
17
67F−81332−00
Plate, timing
Loading…
↗
18
97885−06010
Screw pan head
Loading…
↗
20
67F−81337−01
Cover, flywheel
Loading…
↗
21
90387−06M71
Collar (6g8)
Loading…
↗
22
90480−15M31
Grommet (6g1)
Loading…
↗
23
90119−06M92
Bolt, with washer
Loading…
↗
24
67F−12138−60
Mark, Caution
Loading…
↗
25
67F−13437−61
Mark, Caution
Loading…
↗
26
6A1−83625−41
Mark 5
Loading…
↗
27
6A1−83625−51
Mark 5
Loading…
↗
