F100DET (2005)
GENERATOR

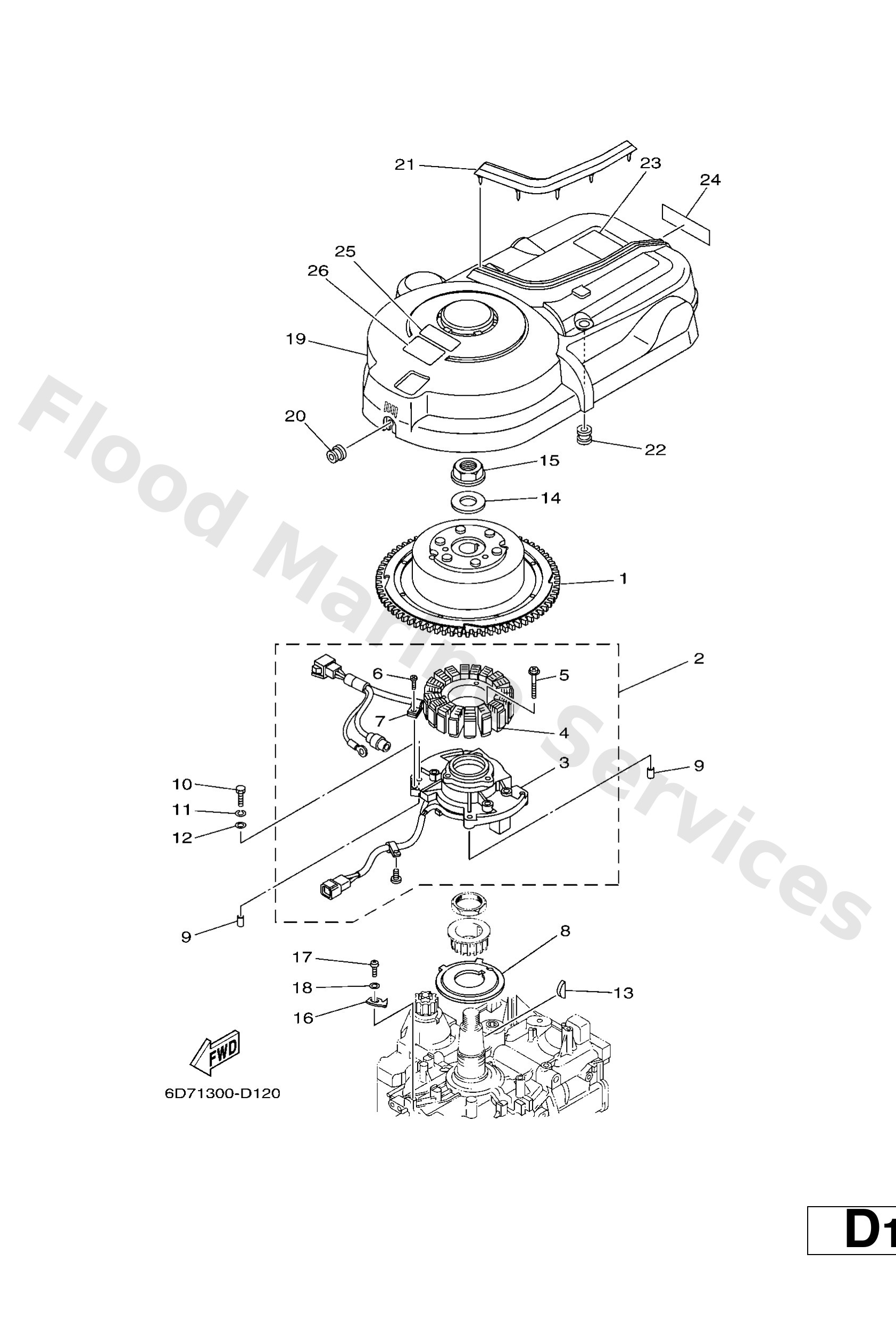

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6D88145000
Rotor assembly
Loading…
↗
2
6D88146000
Base assembly
Loading…
↗
3
6D88558000
Coil, pulser
Loading…
↗
4
6D88141000
Stator assembly
Loading…
↗
5
63D8134520
Screw, pan
Loading…
↗
6
9760704110
Screw, pan head with washer (s
Loading…
↗
7
4458132820
Clamp, read
Loading…
↗
8
68V8167300
Rotor
Loading…
↗
9
9953008012
Pin, dowel(6g8)
Loading…
↗
10
9709506030
Bolt(jf7)
Loading…
↗
11
9299506100
Washer(6a1)
Loading…
↗
12
9299506600
Washer, plain (646)
Loading…
↗
13
9028005015
Key, woodruff
Loading…
↗
14
9020124014
Washer, plate
Loading…
↗
15
9017924002
Nut
Loading…
↗
16
6D88133200
Plate, timing
Loading…
↗
17
9788506010
Screw pan head
Loading…
↗
19
6D88133700
Cover, flywheel
Loading…
↗
20
9048012072
Grommet(53y)
Loading…
↗
21
6D88554700
Damper
Loading…
↗
22
6638231701
Damper, ignition coil
Loading…
↗
23
67F1213860
Mark, Caution
Loading…
↗
24
68V1343760
Mark, caution
Loading…
↗
25
6A18362541
Mark 5
Loading…
↗
26
6A18362551
Mark 5
Loading…
↗
