F150AET (2007)
GENERATOR

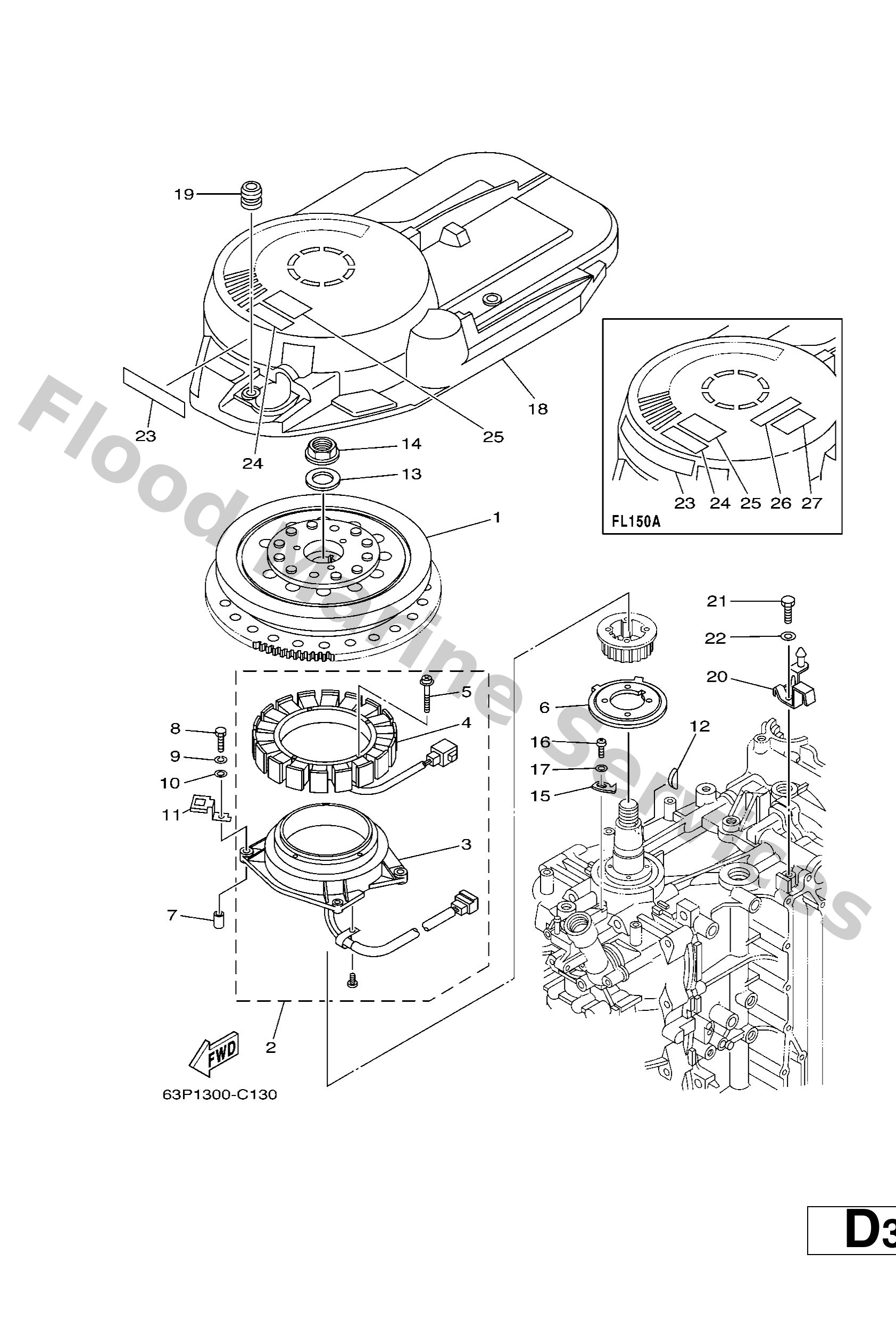

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
63P8145000
Rotor assembly
Loading…
↗
2
63P8146000
Base assembly
Loading…
↗
3
63P8558000
Coil, pulser
Loading…
↗
4
63P8141000
Stator assembly
Loading…
↗
5
63D8134520
Screw, pan
Loading…
↗
6
63P8167300
Rotor
Loading…
↗
7
9953008012
Pin, dowel(6g8)
Loading…
↗
8
9709506035
Bolt(j52)
Loading…
↗
9
9299506100
Washer(6a1)
Loading…
↗
10
9299506600
Washer, plain (646)
Loading…
↗
11
63P8184500
Plate
Loading…
↗
12
9028005015
Key, woodruff
Loading…
↗
13
9020124014
Washer, plate
Loading…
↗
14
9017924002
Nut
Loading…
↗
15
6P28133200
Plate, timing
Loading…
↗
16
9788506010
Screw pan head
Loading…
↗
18
63P8133700
Cover, flywheel
Loading…
↗
19
6638231701
Damper, ignition coil
Loading…
↗
20
63P8132G00
Plate
Loading…
↗
21
9709506016
Bolt, hexagon deep recess
Loading…
↗
23
63P1343761
Mark, caution
Loading…
↗
24
6A18362541
Mark 5
Loading…
↗
25
6A18362551
Mark 5
Loading…
↗
26
6K18362341
Mark 3
Loading…
↗
27
6K18362350
Mark 3
Loading…
↗
