F150FET (2022)
GENERATOR

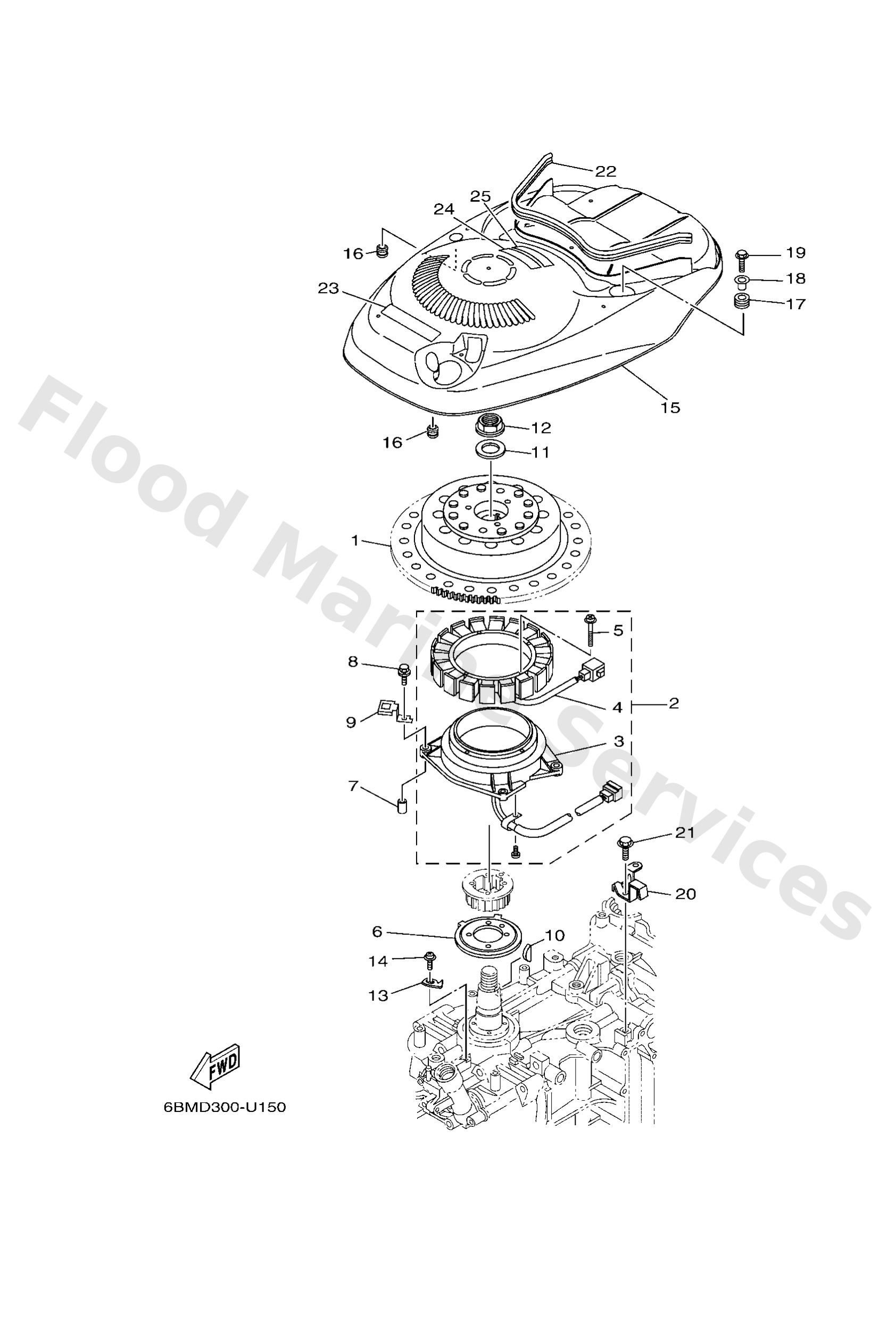

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6BM8145000
Rotor assembly
Loading…
↗
2
63P8146000
Base assembly
Loading…
↗
3
63P8558000
Coil, pulser
Loading…
↗
4
63P8141000
Stator assembly
Loading…
↗
5
63D8134520
Screw, pan
Loading…
↗
6
63P8167301
Rotor
Loading…
↗
7
9953008012
Pin, dowel(6g8)
Loading…
↗
8
97E9506635
Bolt, hexagon w/w deep recess
Loading…
↗
9
63P8184500
Plate
Loading…
↗
10
9028005015
Key, woodruff
Loading…
↗
11
9020124014
Washer, plate
Loading…
↗
12
9017924002
Nut
Loading…
↗
13
6P28133200
Plate, timing
Loading…
↗
14
9798506210
Screw pan head
Loading…
↗
15
63P8133711
Cover, flywheel
Loading…
↗
16
6A08231701
Damper, ignition coil
Loading…
↗
17
9048015M31
Grommet (6g1)
Loading…
↗
18
9038706285
Collar
Loading…
↗
19
95D9506020
Bolt, flange deep recess
Loading…
↗
20
63P8132G10
Plate
Loading…
↗
21
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
22
6DA4261700
Damper, form
Loading…
↗
23
63P1343763
Mark, caution
Loading…
↗
24
6EE8199440
Label, safety
Loading…
↗
25
6EE8199450
Label, safety
