F15AEH (2004)
GENERATOR

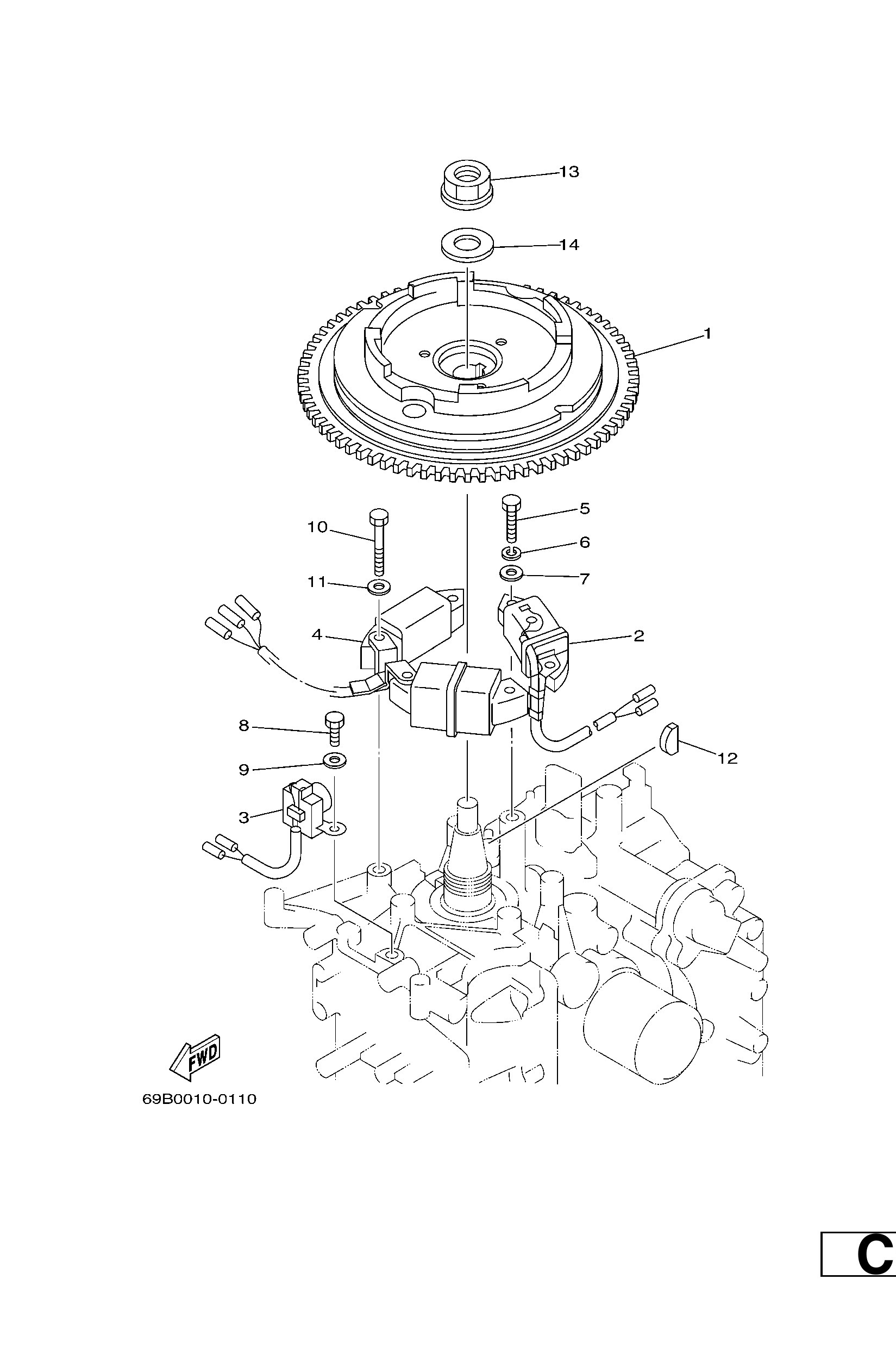

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
66M8555000
Rotor assembly
Loading…
↗
1
66M8555010
Rotor assembly
Loading…
↗
2
66M8552000
Coil, charge
Loading…
↗
3
66M8558000
Coil, pulser
Loading…
↗
4
66M8553300
6A
Coil, Lighting
Loading…
↗
4
66M8553310
10A
Coil, Lighting
Loading…
↗
5
9709506025
Bolt
Loading…
↗
6
9299506100
Washer(6a1)
Loading…
↗
7
9299506600
Washer, plain (646)
Loading…
↗
8
9709506016
Bolt, hexagon deep recess
Loading…
↗
10
9709506030
Bolt(jf7)
Loading…
↗
10
9709506040
Bolt (682)
Loading…
↗
12
9028005013
Key, woodruff
Loading…
↗
13
9017916M05
Nut (689)
Loading…
↗
14
9020116M44
Washer (689)
Loading…
↗
