Yamaha Outboard Parts - GENERATOR - F15AEP (2003) | Flood Marine

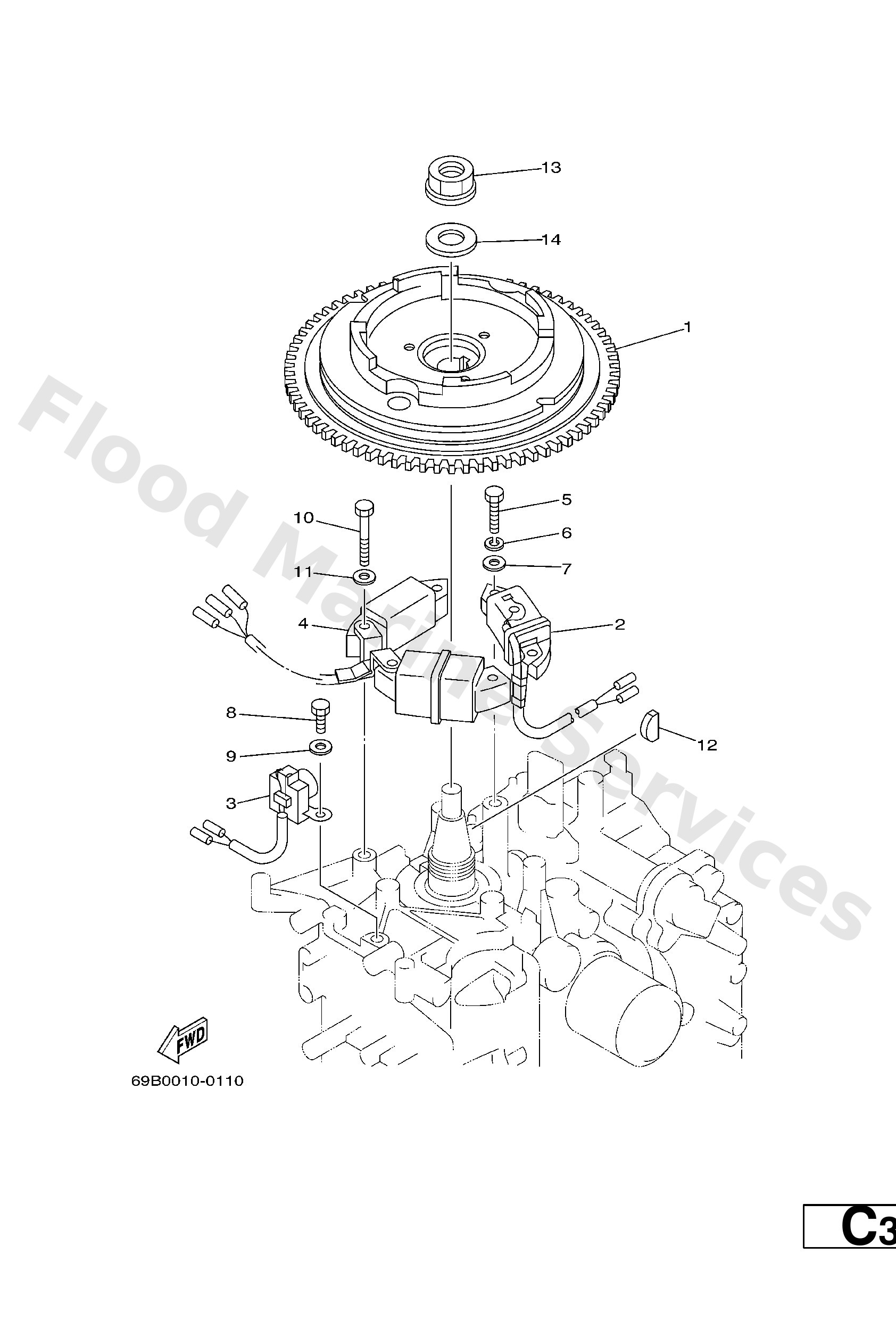

Diagram: GENERATOR

Diagram

Parts List

Reference
Description
Price


1
66M−85550−10 WITH RING GEAR
Rotor assembly
Loading…

↗
2
66M−85520−00
Coil, charge
Loading…

↗
3
66M−85580−00
Coil, pulser
Loading…

↗
4
66M−85533−10 10A
Coil, Lighting
Loading…

↗
5
97095−06025
Bolt
Loading…

↗
6
92995−06100
Washer(6a1)
Loading…

↗
7
92995−06600
Washer, plain (646)
Loading…

↗
8
97095−06016
Bolt, hexagon deep recess
Loading…

↗
10
97095−06040
Bolt (682)
Loading…

↗
12
90280−05013
Key, woodruff
Loading…

↗
13
90179−16M05
Nut (689)
Loading…

↗
14
90201−16M44
Washer (689)
Loading…

↗
