Yamaha Outboard Parts - GENERATOR - F15CMH (2019) | Flood Marine

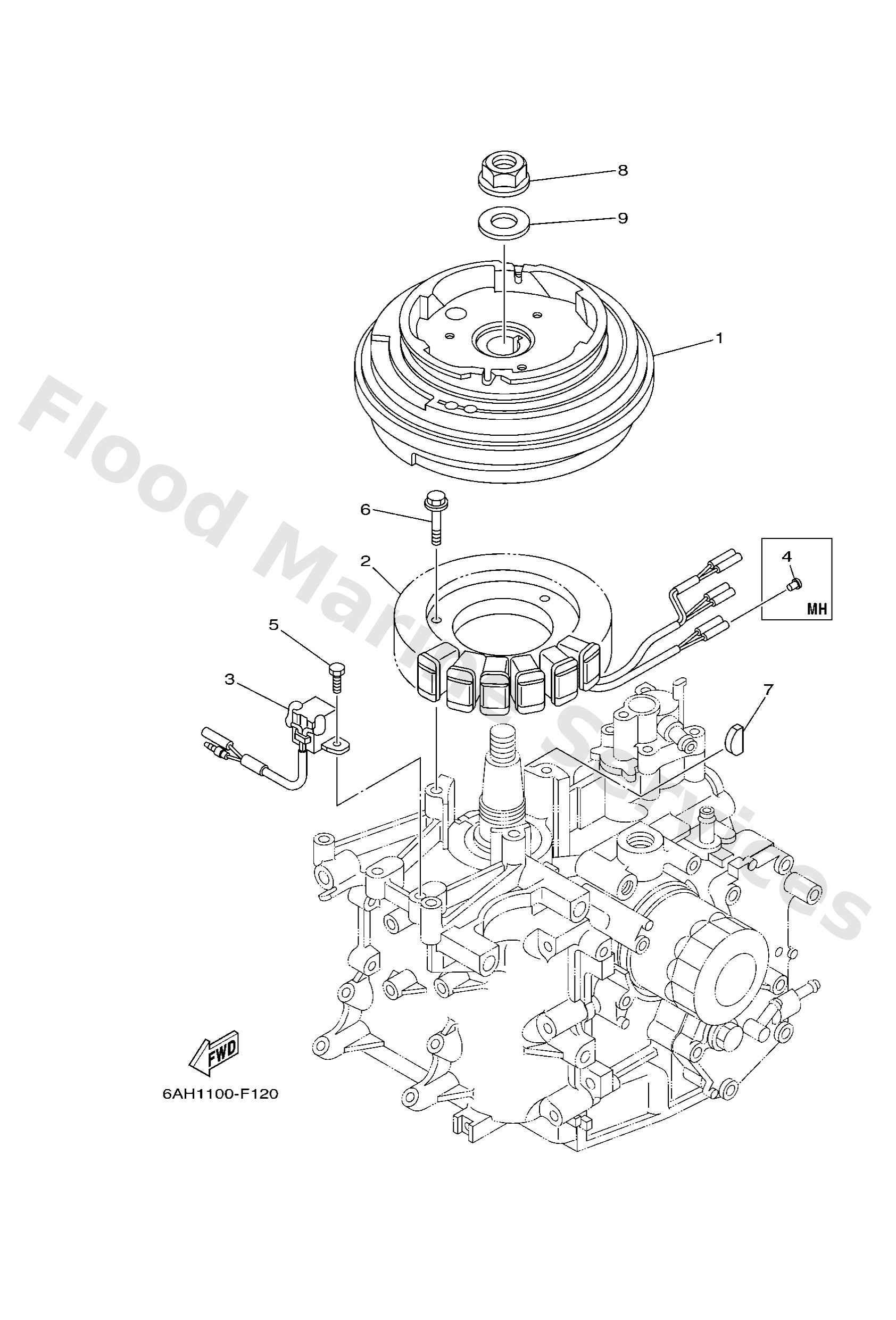

Diagram: GENERATOR

Diagram

Parts List

Reference
Description
Price


1
6AH8555010
Rotor assembly
Loading…

↗
1
6AH8555000
Rotor assembly
Loading…

↗
2
6AH8551000
Stator assembly
Loading…

↗
3
6AH8558000
Coil, pulser
Loading…

↗
4
7038211900
Cover, lead wire
Loading…

↗
5
9709505012
Bolt, hexagon
Loading…

↗
6
95D9506030
Bolt, flange deep recess
Loading…

↗
7
9028005013
Key, woodruff
Loading…

↗
8
9017916M05
Nut (689)
Loading…

↗
9
9020116M44
Washer (689)
Loading…

↗
