F175AET (2016)
GENERATOR

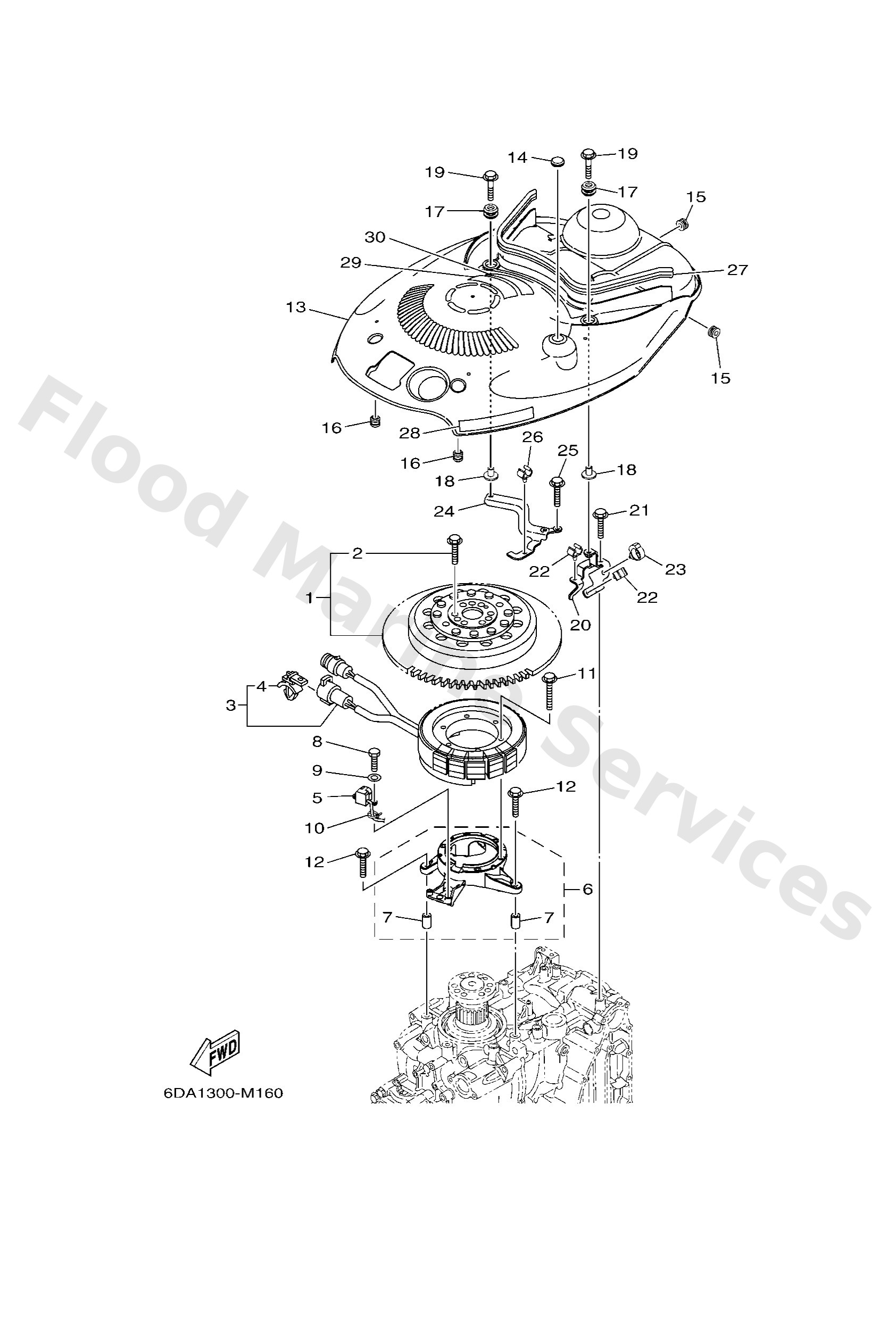

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6DAW814500
Rotor assembly with bolts
Loading…
↗
2
6AWW901100
Bolt set
Loading…
↗
3
6DA8141000
Stator assembly
Loading…
↗
4
9046412002
Clamp
Loading…
↗
5
6CB8558000
Coil, pulser
Loading…
↗
6
6DA8556100
Base, magneto
Loading…
↗
7
9959008012
Pin, dowel
Loading…
↗
8
9709505020
Bolt, hexagon
Loading…
↗
9
9299505600
Washer, plain (646)
Loading…
↗
10
9046513M97
Clamp
Loading…
↗
11
9502206035
Bolt, flange
Loading…
↗
12
9589506030
Bolt, flange deep recess
Loading…
↗
13
6DA8133700
Cover, flywheel
Loading…
↗
14
9048016025
Grommet (715)
Loading…
↗
15
9048012314
Grommet(3aa)
Loading…
↗
16
6A08231700
Damper, ignition coil
Loading…
↗
17
6BG4274800
Grommet
Loading…
↗
18
9038706M69
Collar (688)
Loading…
↗
19
9011906M61
Bolt, with washer
Loading…
↗
20
6DA8132G00
Plate
Loading…
↗
21
9589506016
Bolt, flange deep recess
Loading…
↗
22
9046409130
Clamp(3ld)
Loading…
↗
23
9046420181
Clamp(4ap)
Loading…
↗
24
6DA8239800
Plate 3
Loading…
↗
27
6DA4261700
Damper, form
Loading…
↗
28
63P1343762
Mark, caution
Loading…
↗
29
6EE8199440
Label, safety
Loading…
↗
30
6EE8199450
Label, safety
Loading…
↗
