Yamaha Outboard Parts - GENERATOR - F2.5BMH (2018) | Flood Marine
New Search
Parts
New Outboards
Home
F2.5BMH (2018)
GENERATOR

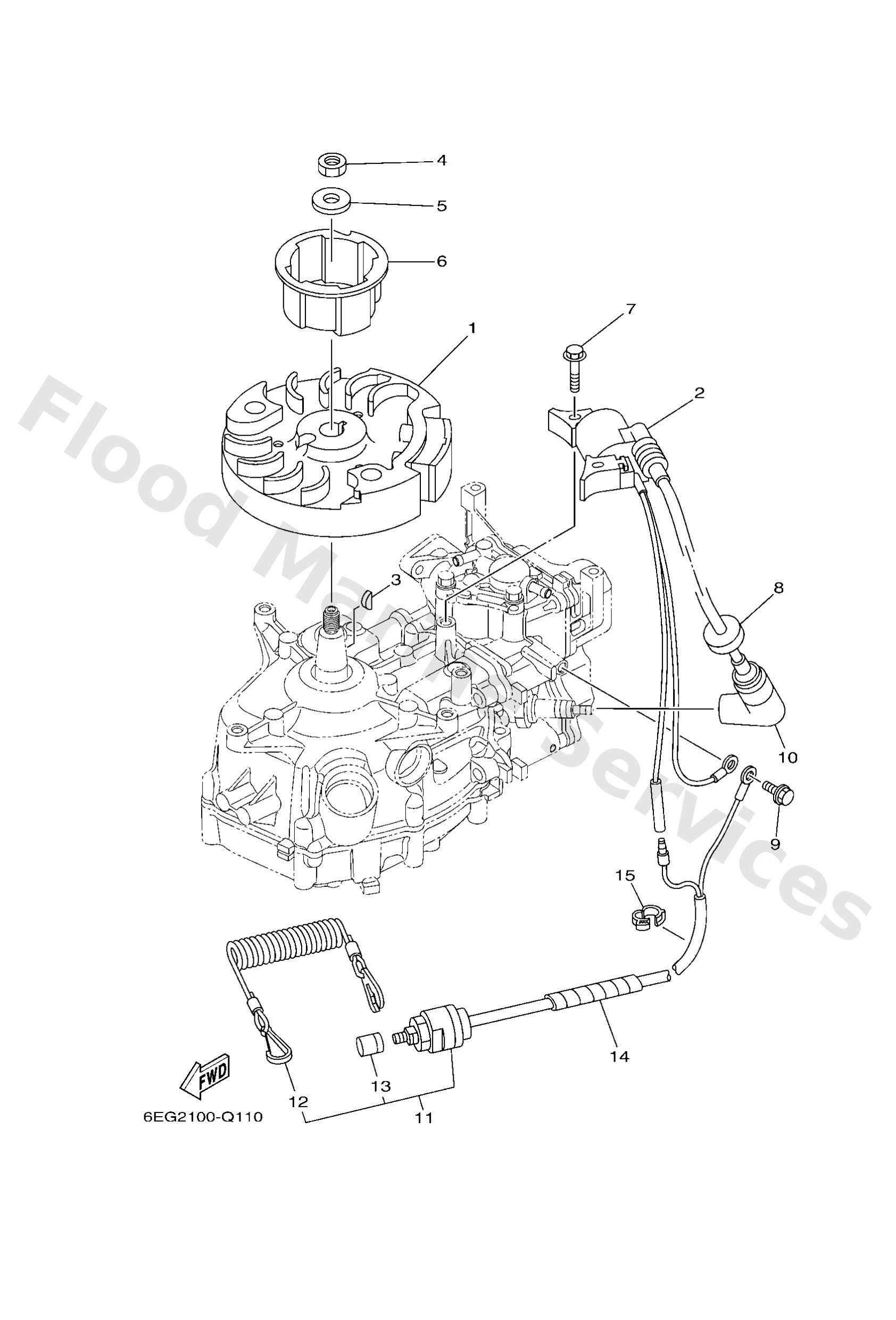

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
69M8565000
Rotor assembly
Loading…
↗
2
69M8564000
T.c.i. unit assembly
Loading…
↗
3
9028004M06
Key, woodruff(6a1)
Loading…
↗
4
9017010M33
Nut(6a1)
Loading…
↗
5
90201105A2
Washer, plate (4x7)
Loading…
↗
6
69M1572300
Pulley, starter
Loading…
↗
7
9010506M24
Bolt (6g1)
Loading…
↗
8
9048025161
Grommet(656)
Loading…
↗
9
9759506512
Bolt, hexagon w/w deep recess
Loading…
↗
10
6BX8237000
Plug cap assembly
Loading…
↗
11
65W8257501
Engine stop switch assembly
Loading…
↗
12
6828255600
Lanyard, stop switch
Loading…
↗
13
6898257Y00
Cap
Loading…
↗
14
9044606M90
Hose
Loading…
↗
15
9046416003
Clamp
Loading…
↗
