F200FET (2020)
GENERATOR

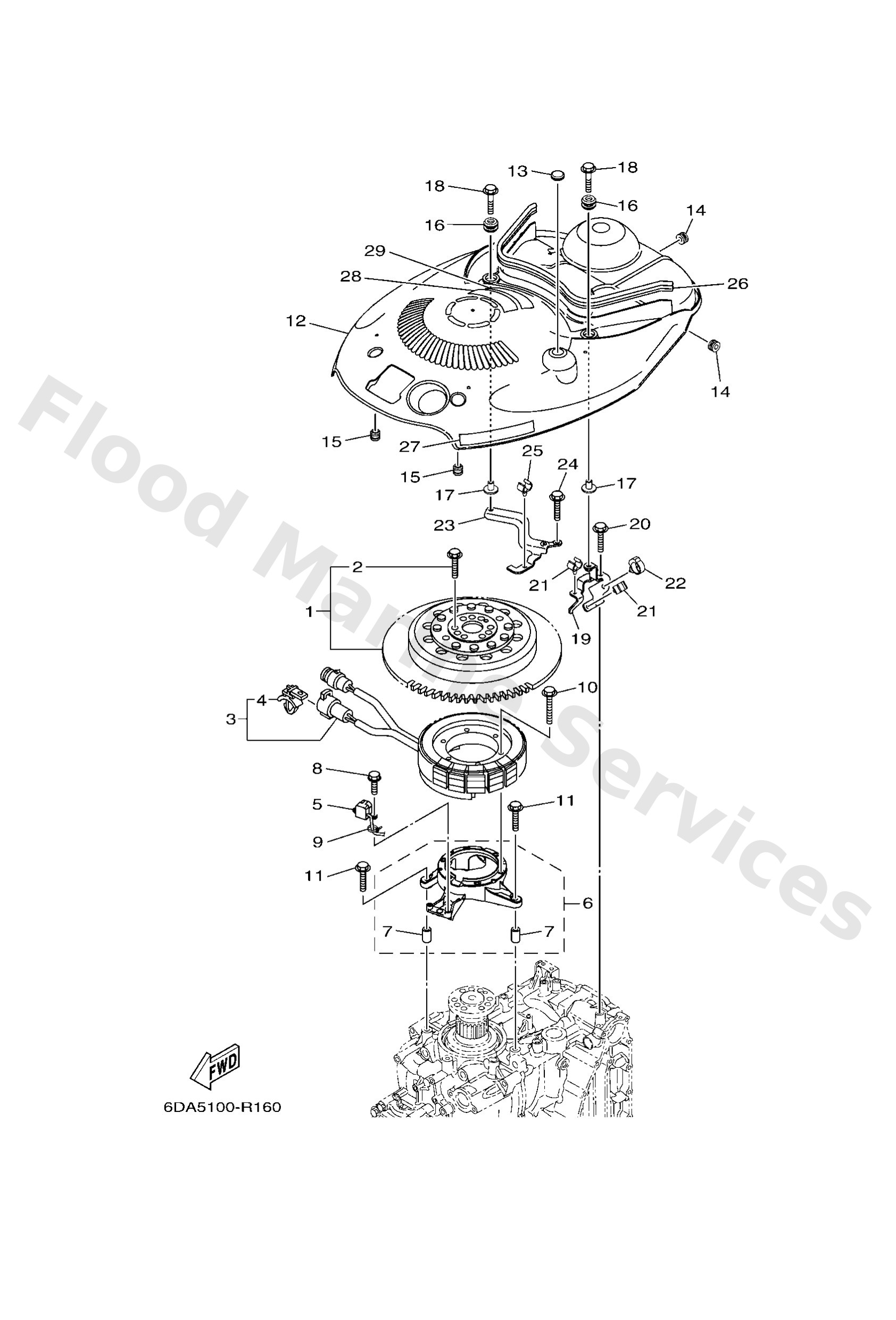

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6DAW814500
Rotor assembly with bolts
Loading…
↗
2
6EKW901000
Bolt set
Loading…
↗
3
6DA8141000
Stator assembly
Loading…
↗
4
9046412002
Clamp
Loading…
↗
5
6CB8558000
Coil, pulser
Loading…
↗
6
6DA8556100
Base, magneto
Loading…
↗
7
9953008012
Pin, dowel(6g8)
Loading…
↗
8
9759505520
Bolt, With Washer
Loading…
↗
9
9046513M97
Clamp
Loading…
↗
10
9502206035
Bolt, flange
Loading…
↗
11
95D9506030
Bolt, flange deep recess
Loading…
↗
12
6DA8133700
Cover, flywheel
Loading…
↗
13
9048016025
Grommet (715)
Loading…
↗
14
9048012314
Grommet(3aa)
Loading…
↗
15
6A08231700
Damper, ignition coil
Loading…
↗
16
6BG4274800
Grommet
Loading…
↗
17
9038706M69
Collar (688)
Loading…
↗
18
9011906291
Bolt, with washer
Loading…
↗
19
6DA8132G01
Plate
Loading…
↗
20
95D9506016
Bolt, flange deep recess
Loading…
↗
21
9046409130
Clamp(3ld)
Loading…
↗
22
9046420181
Clamp(4ap)
Loading…
↗
23
6DA8239801
Plate 3
Loading…
↗
26
6DA4261700
Damper, form
Loading…
↗
27
63P1343763
Mark, caution
Loading…
↗
28
6EE8199440
Label, safety
Loading…
↗
29
6EE8199450
Label, safety
