F20AET (1998)
GENERATOR

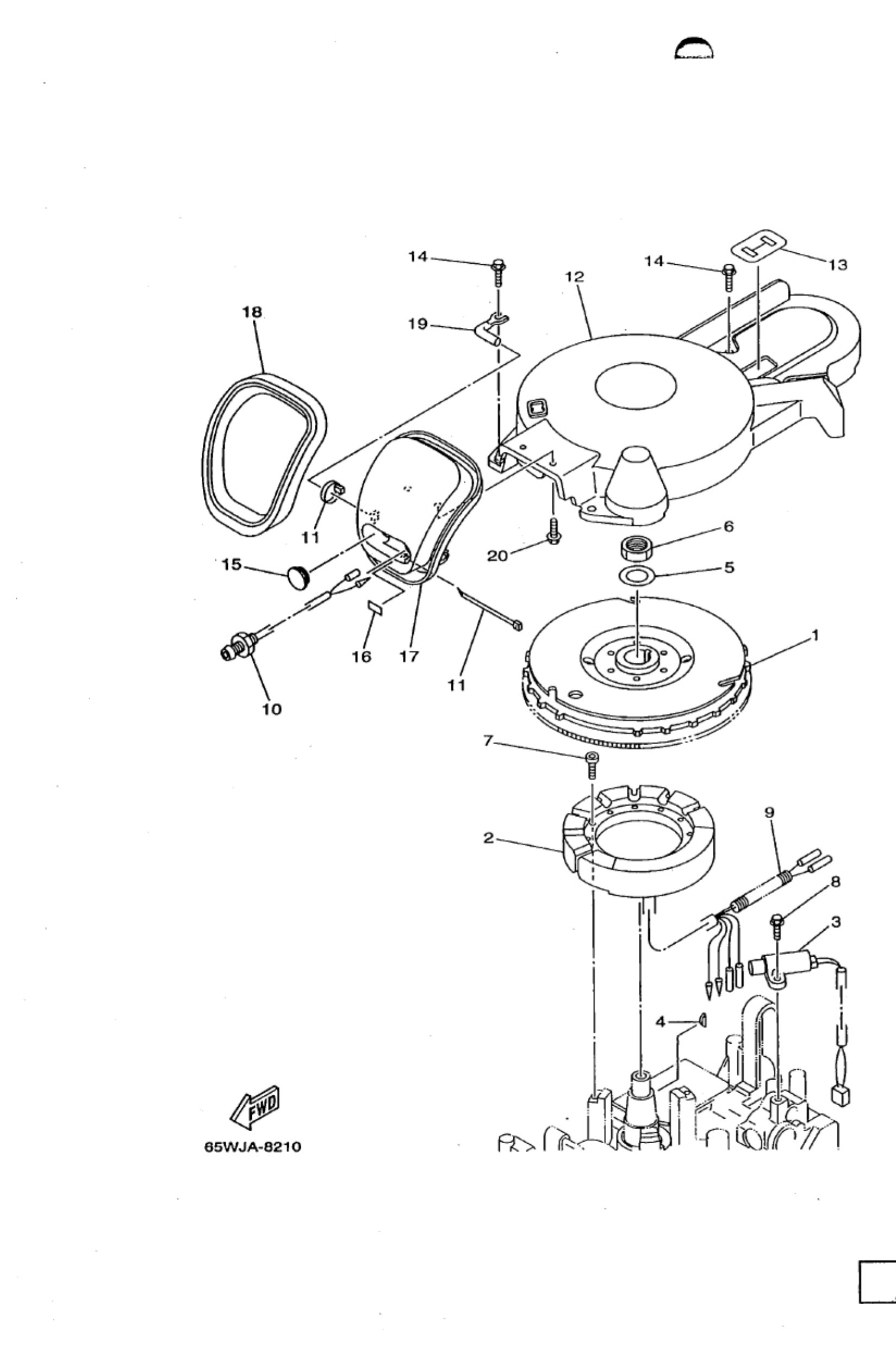

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
65W8555000
11] 1
Rotor assembly
Loading…
↗
2
65W8551000
UR 6A
Stator assembly
Loading…
↗
2
65W8551010
UR 15A
Stator assembly
Loading…
↗
3
65W8558000
11] 1
Coil, pulser
Loading…
↗
4
65W1154500
RIE
Key, woodruff
Loading…
↗
4
9020121M18
11)
Washer, plate (663)
Loading…
↗
6
9017020137
RIE!
Nut, hexagon(663)
Loading…
↗
7
9138005025
UR GA
Bolt, hex. socket head
Loading…
↗
7
9138005030
UR 15A
Bolt,socket
Loading…
↗
8
9759505516
2| 2| 2
Bolt, with washer
Loading…
↗
10
65W8541000
11)
Emergency signal light assembly
Loading…
↗
11
9046511M10
2[ 2| 2
Clamp
Loading…
↗
12
65W8133700
1] 1] 1
Cover, Flywheel
Loading…
↗
13
65W8163900
[RIE
Plate, Armature Fitting
Loading…
↗
14
9759506525
4|74|a
Bolt, hexagon w/w deep recess
Loading…
↗
15
6G14272500
[IRIE
Grommet
Loading…
↗
16
65W8434200
11] 1
Seat, emblem
Loading…
↗
17
65W1575810
1] 1
Guide, Rope
Loading…
↗
18
65W1576200
Seal, rubber 2
Loading…
↗
19
B5W1677100
Stay 1
Loading…
↗
20
9759506620
1) 1] 1
Bolt, hexagon w/w deep recess
Loading…
↗
