F225FET (2013)
GENERATOR

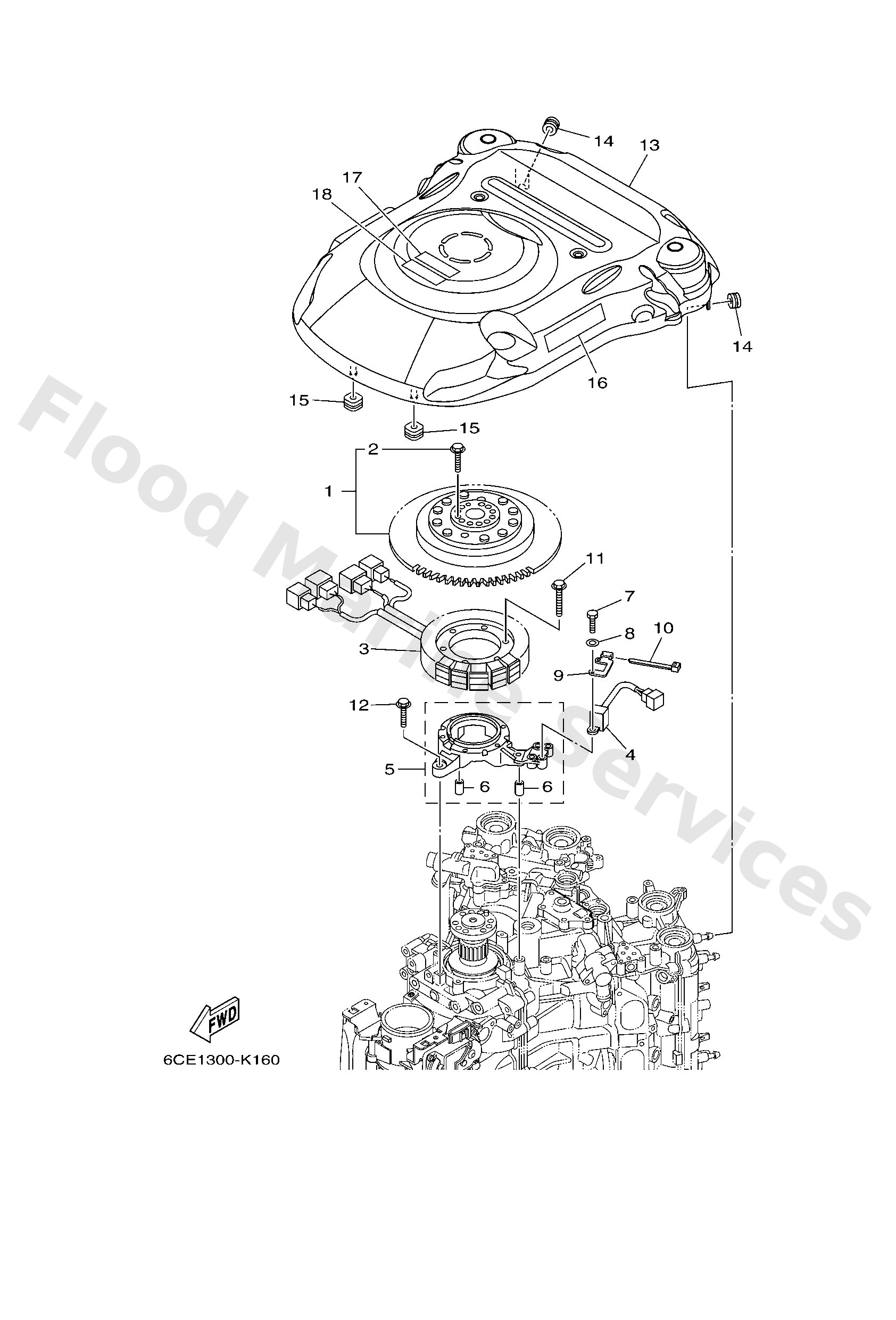

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6CEW814501
Rotor assembly with bolts
Loading…
↗
2
6AWW901100
Bolt set
Loading…
↗
3
6CE8141000
Stator assembly
Loading…
↗
4
6CB8558000
Coil, pulser
Loading…
↗
5
6CB8556100
Base, magneto
Loading…
↗
6
9953008012
Pin, dowel(6g8)
Loading…
↗
7
9709505020
Bolt, hexagon
Loading…
↗
8
9299505600
Washer, plain (646)
Loading…
↗
9
6CE8559200
Stay, pulser
Loading…
↗
10
9046511M10
Clamp
Loading…
↗
11
9502206035
Bolt, flange
Loading…
↗
12
9589506030
Bolt, flange deep recess
Loading…
↗
13
6CB8133700
Cover, flywheel
Loading…
↗
14
9048012314
Grommet(3aa)
Loading…
↗
15
6CB8551600
Spacer
Loading…
↗
16
6CE1343760
Mark, caution
Loading…
↗
17
6AH8199440
Label, safety
Loading…
↗
18
6AH8199450
Label, safety
Loading…
↗
