F225NCB2 (2021)
GENERATOR

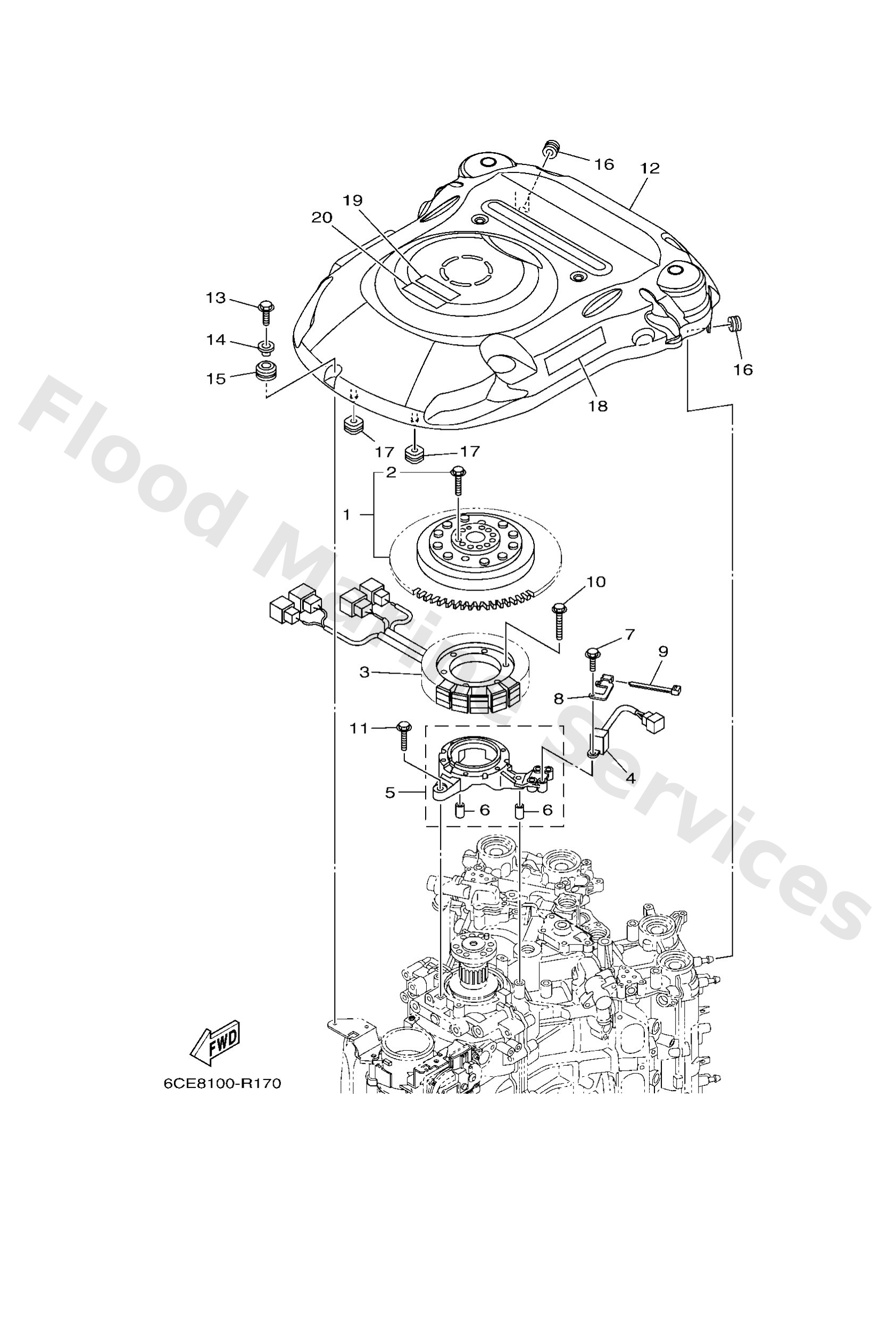

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6CEW814501
Rotor assembly with bolts
Loading…
↗
2
6EKW901000
Bolt set
Loading…
↗
3
6CE8141000
Stator assembly
Loading…
↗
4
6CB8558000
Coil, pulser
Loading…
↗
5
6CB8556100
Base, magneto
Loading…
↗
6
9953008012
Pin, dowel(6g8)
Loading…
↗
7
9759505520
Bolt, With Washer
Loading…
↗
8
6CE8559200
Stay, pulser
Loading…
↗
9
9046511M10
Clamp
Loading…
↗
10
9502206035
Bolt, flange
Loading…
↗
11
95D9506030
Bolt, flange deep recess
Loading…
↗
12
6CE8133701
Cover, flywheel
Loading…
↗
13
95D9506025
Bolt, flange deep recess
Loading…
↗
14
9038706285
Collar
Loading…
↗
15
9048015M31
Grommet (6g1)
Loading…
↗
16
9048012314
Grommet(3aa)
Loading…
↗
17
6CB8551601
Spacer
Loading…
↗
18
6CE1343761
Mark, caution
Loading…
↗
19
6EE8199440
Label, safety
Loading…
↗
20
6EE8199450
Label, safety
Loading…
↗
