F25AE (2005)
GENERATOR

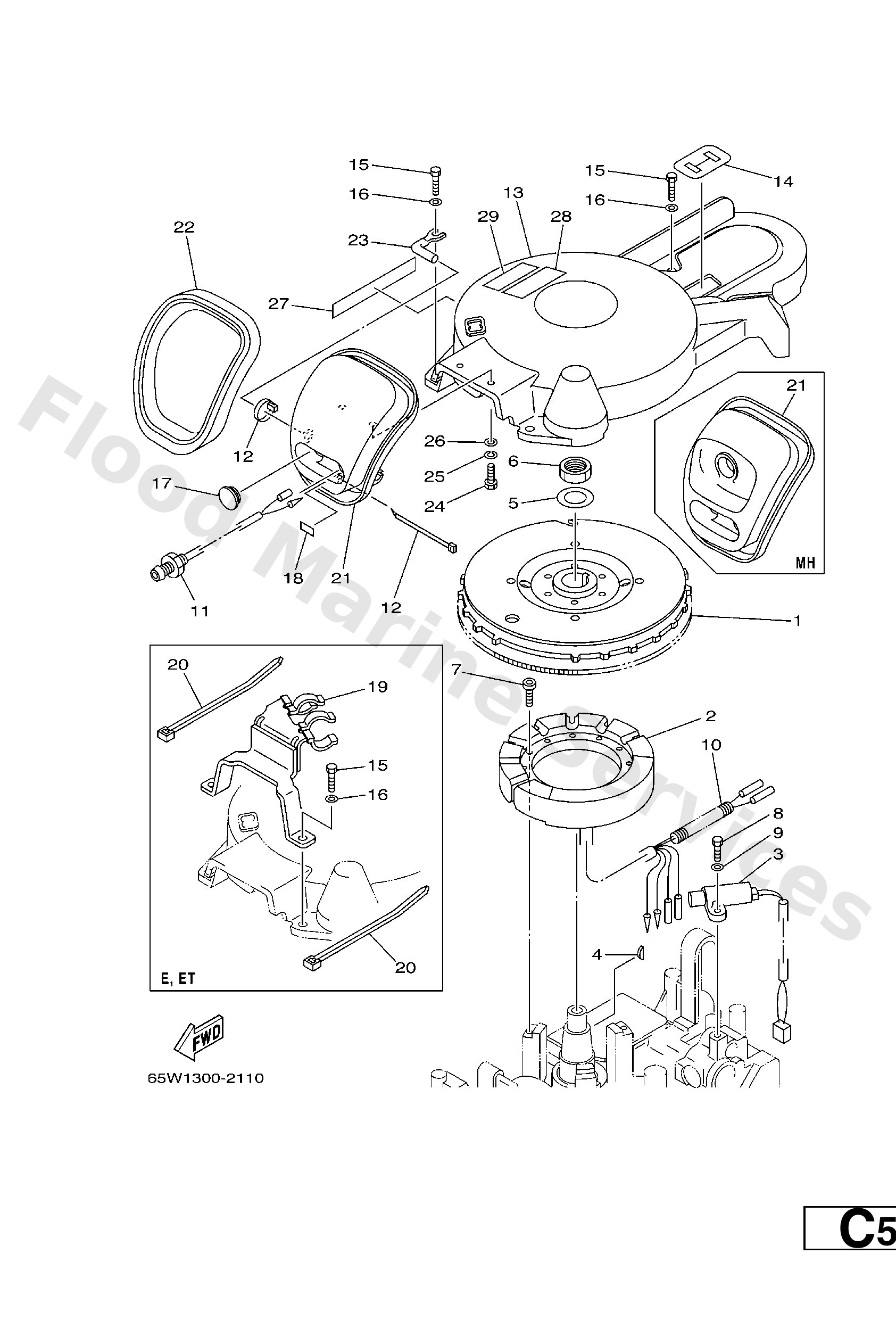

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
65W8555011
Rotor assembly
Loading…
↗
1
65W8555001
Rotor assembly
Loading…
↗
2
65W8551010
Stator assembly
Loading…
↗
2
65W8551000
Stator assembly
Loading…
↗
3
65W8558000
Coil, pulser
Loading…
↗
4
65W1154500
Key, woodruff
Loading…
↗
5
9020121M18
Washer, plate (663)
Loading…
↗
6
9017020137
Nut, hexagon(663)
Loading…
↗
7
9138005030
Bolt,socket
Loading…
↗
7
9138005025
Bolt, hex. socket head
Loading…
↗
8
9709505016
Bolt(6a1)
Loading…
↗
9
9299505600
Washer, plain (646)
Loading…
↗
10
9044610M82
Hose
Loading…
↗
11
65W8541001
Emergency signal light assembly
Loading…
↗
12
9046511M10
Clamp
Loading…
↗
13
65W8133700
Cover, Flywheel
Loading…
↗
14
65W8163900
Plate, Armature Fitting
Loading…
↗
15
9709506025
Bolt
Loading…
↗
16
9299506600
Washer, plain (646)
Loading…
↗
17
6G14272500
Grommet
Loading…
↗
18
65W8434200
Seat, emblem
Loading…
↗
19
65W8259410
Clamp
Loading…
↗
20
9046513M18
Clamp
Loading…
↗
21
65W1575810
Guide, Rope
Loading…
↗
21
65W1575800
Guide, Rope
Loading…
↗
22
65W1576200
Seal, rubber 2
Loading…
↗
23
65W1577100
Stay 1
Loading…
↗
24
9709506020
Bolt(7u8)
Loading…
↗
25
9299506100
Washer(6a1)
Loading…
↗
27
65W1343761
Mark, Caution
Loading…
↗
28
6A18362541
Mark 5
Loading…
↗
29
6A18362551
-
Loading…
↗
