F25DMH (2009)
GENERATOR

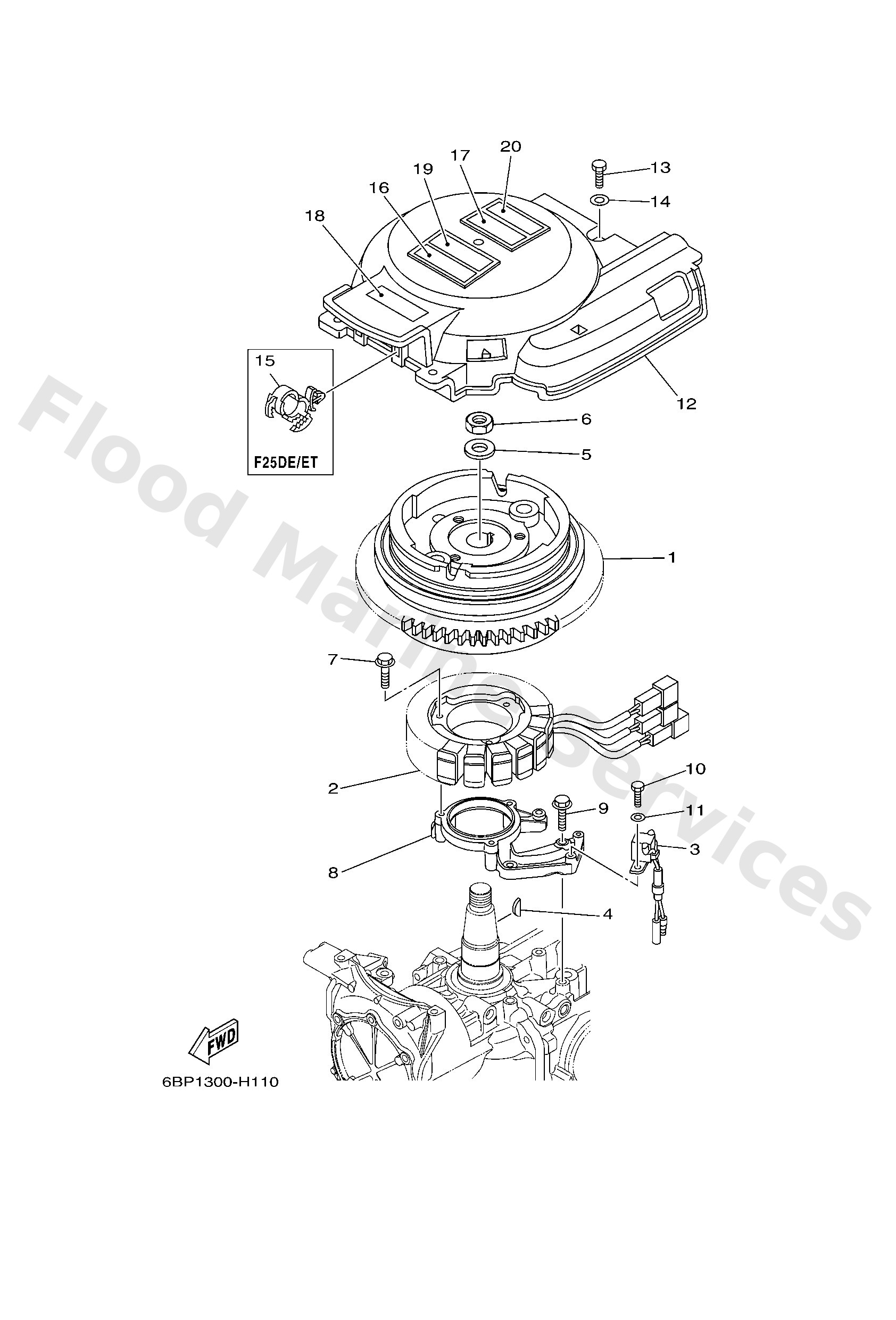

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6BL8555010
Rotor assembly
Loading…
↗
1
6BL8555000
Rotor assembly
Loading…
↗
2
6BL8551000
Stator assembly
Loading…
↗
2
6BL8551010
Stator assembly
Loading…
↗
3
6AH8558000
Coil, pulser
Loading…
↗
4
6H41154500
Key, woodruff
Loading…
↗
5
9020121M18
Washer, plate (663)
Loading…
↗
6
9017020137
Nut, hexagon(663)
Loading…
↗
7
9502306030
Bolt, flange(4as)
Loading…
↗
8
6BG855610094
Base, magneto
Loading…
↗
9
9502306025
Bolt, flange(4kg)
Loading…
↗
10
9709505016
Bolt(6a1)
Loading…
↗
11
9299505600
Washer, plain (646)
Loading…
↗
12
6BL8133700
Cover, flywheel
Loading…
↗
13
9709506020
Bolt(7u8)
Loading…
↗
14
9299506600
Washer, plain (646)
Loading…
↗
15
9046412183
Clamp(jn2)
Loading…
↗
16
6AH8199440
Label, safety
Loading…
↗
17
6AH8199540
Label, warning
Loading…
↗
18
6AG8199600
Mark
Loading…
↗
19
6AH8199450
Label, safety
Loading…
↗
20
6AH8199550
Label, warning
Loading…
↗
