F25GET (2022)
GENERATOR

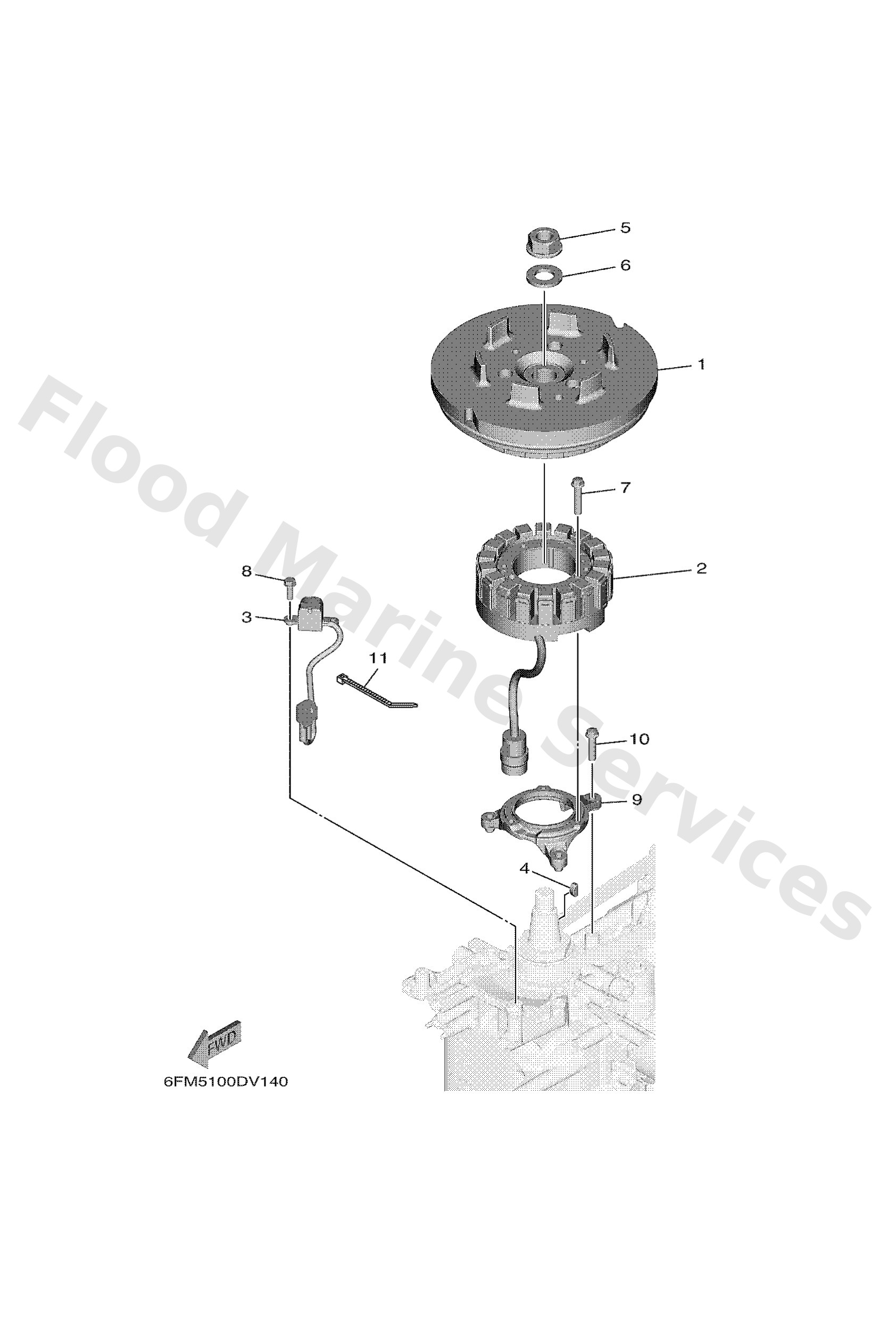

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6FM8145001
Rotor assembly
Loading…
↗
1
6FM8145011
Rotor assembly
Loading…
↗
2
6FM8141000
Stator assembly
Loading…
↗
3
6CB8558000
Coil, pulser
Loading…
↗
4
9028005013
Key, woodruff
Loading…
↗
5
9017916M05
Nut (689)
Loading…
↗
6
9020116M44
Washer (689)
Loading…
↗
7
9502306030
Bolt, flange(4as)
Loading…
↗
8
9759505516
Bolt, with washer
Loading…
↗
9
6FM8556101
Base, magneto
Loading…
↗
10
9502306025
Bolt, flange(4kg)
Loading…
↗
11
9046511M59
Clamp(63m)
Loading…
↗
