F30BEHD (2009)
GENERATOR

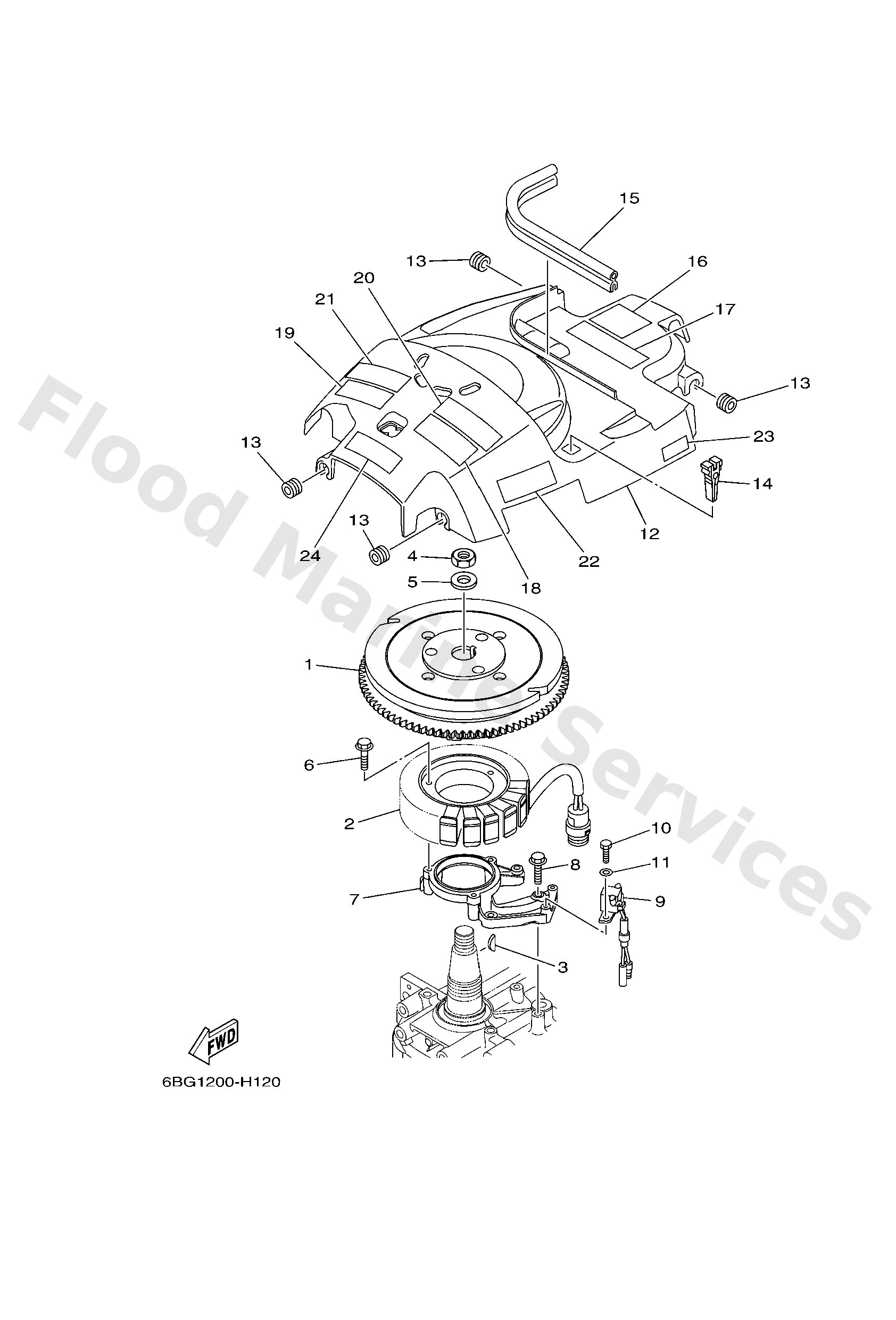

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6BG8145000
Rotor assembly
Loading…
↗
2
6BG8141000
Stator assembly
Loading…
↗
3
6H41154500
Key, woodruff
Loading…
↗
4
9017020137
Nut, hexagon(663)
Loading…
↗
5
9020121M18
Washer, plate (663)
Loading…
↗
6
9502306030
Bolt, flange(4as)
Loading…
↗
7
6BG855610094
Base, magneto
Loading…
↗
9
6AH8558000
Coil, pulser
Loading…
↗
10
9709505016
Bolt(6a1)
Loading…
↗
11
9299505600
Washer, plain (646)
Loading…
↗
12
6BG8133700
Cover, flywheel with plug
Loading…
↗
13
9048012314
Grommet(3aa)
Loading…
↗
14
67F2812A00
Puller, fuse
Loading…
↗
15
6BG4261700
Damper, form
Loading…
↗
16
62Y1213860
Mark, Caution
Loading…
↗
17
6BG1343760
Mark, caution
Loading…
↗
18
6AH8199540
Label, warning
Loading…
↗
19
6AH8199550
Label, warning
Loading…
↗
20
6AH8199440
Label, safety
Loading…
↗
21
6AH8199450
Label, safety
Loading…
↗
22
6BG8191900
Graphic, regulator
Loading…
↗
23
6C58237700
ラベル
Loading…
↗
24
6AG8199600
Mark
Loading…
↗
