F40CET (2002)
GENERATOR

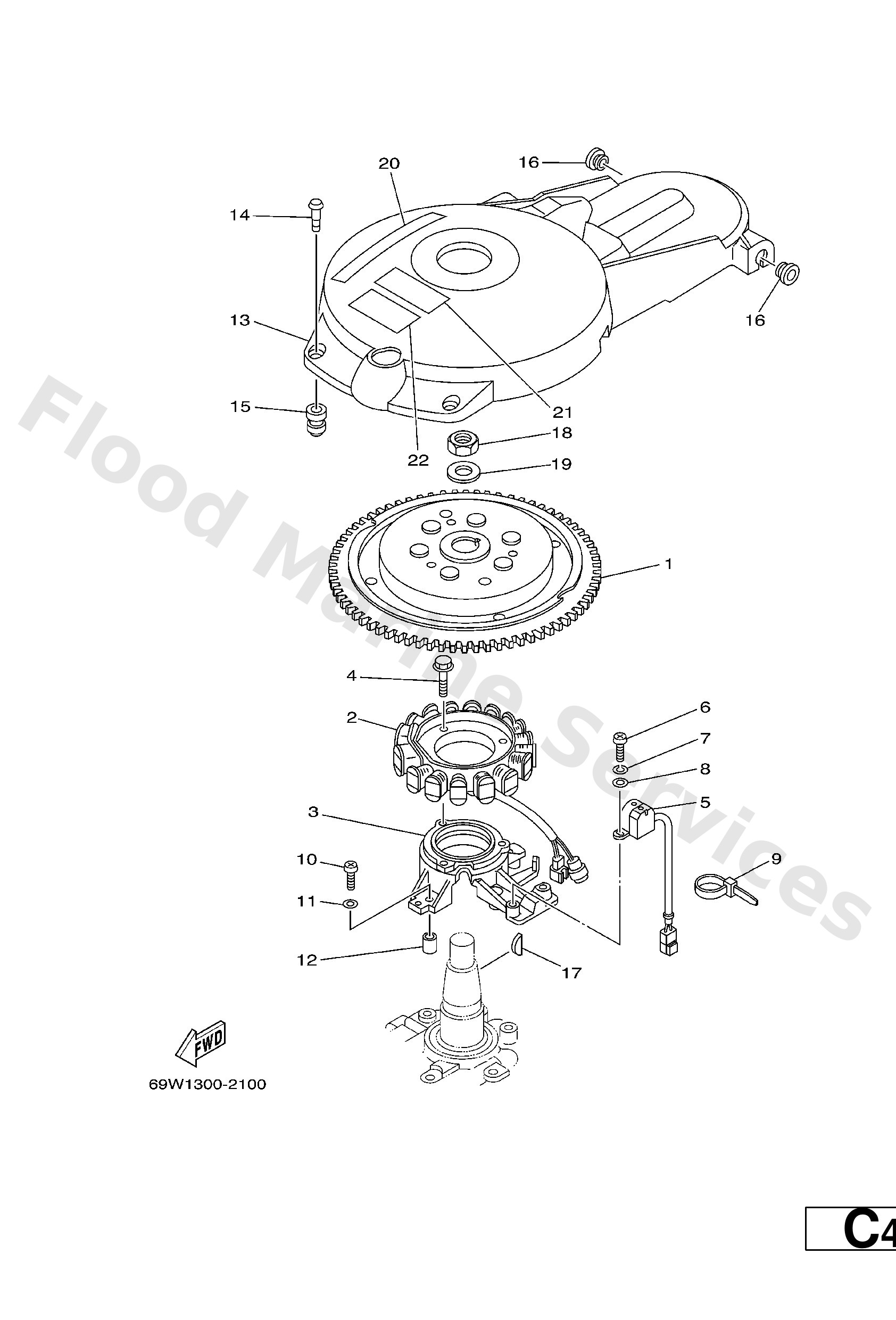

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
69W−85550−00
Rotor assembly
Loading…
↗
2
64J−85510−00
Stator assembly
Loading…
↗
3
62Y−85561−00−94
Base, magneto
Loading…
↗
4
95023−06025
Bolt, flange(4kg)
Loading…
↗
5
62Y−85580−00
Coil, pulser
Loading…
↗
6
97880−05012
Screw,pan head (646)
Loading…
↗
7
92990−05100
Ybs67-5 washer, spring
Loading…
↗
8
92990−05600
Washer, plain (646)
Loading…
↗
9
90465−13M97
Clamp
Loading…
↗
10
97880−06025
Screw, pan head(6b0)
Loading…
↗
11
92990−06600
Washer, plain (646)
Loading…
↗
12
99530−08012
Pin, dowel(6g8)
Loading…
↗
13
62Y−81337−11
Cover, flywheel
Loading…
↗
14
6K7−81338−01
Stay
Loading…
↗
15
663−82317−01
Damper, ignition coil
Loading…
↗
16
90480−12072
Grommet(53y)
Loading…
↗
17
6H4−11545−00
Key, woodruff
Loading…
↗
18
90170−20137
Nut, hexagon(663)
Loading…
↗
19
90201−21M18
Washer, plate (663)
Loading…
↗
20
62Y−13437−60
Mark, caution
Loading…
↗
21
6A1−83625−41
Mark 5
Loading…
↗
22
6A1−83625−51
Mark 5
Loading…
↗
