F40ERA (2002)
GENERATOR

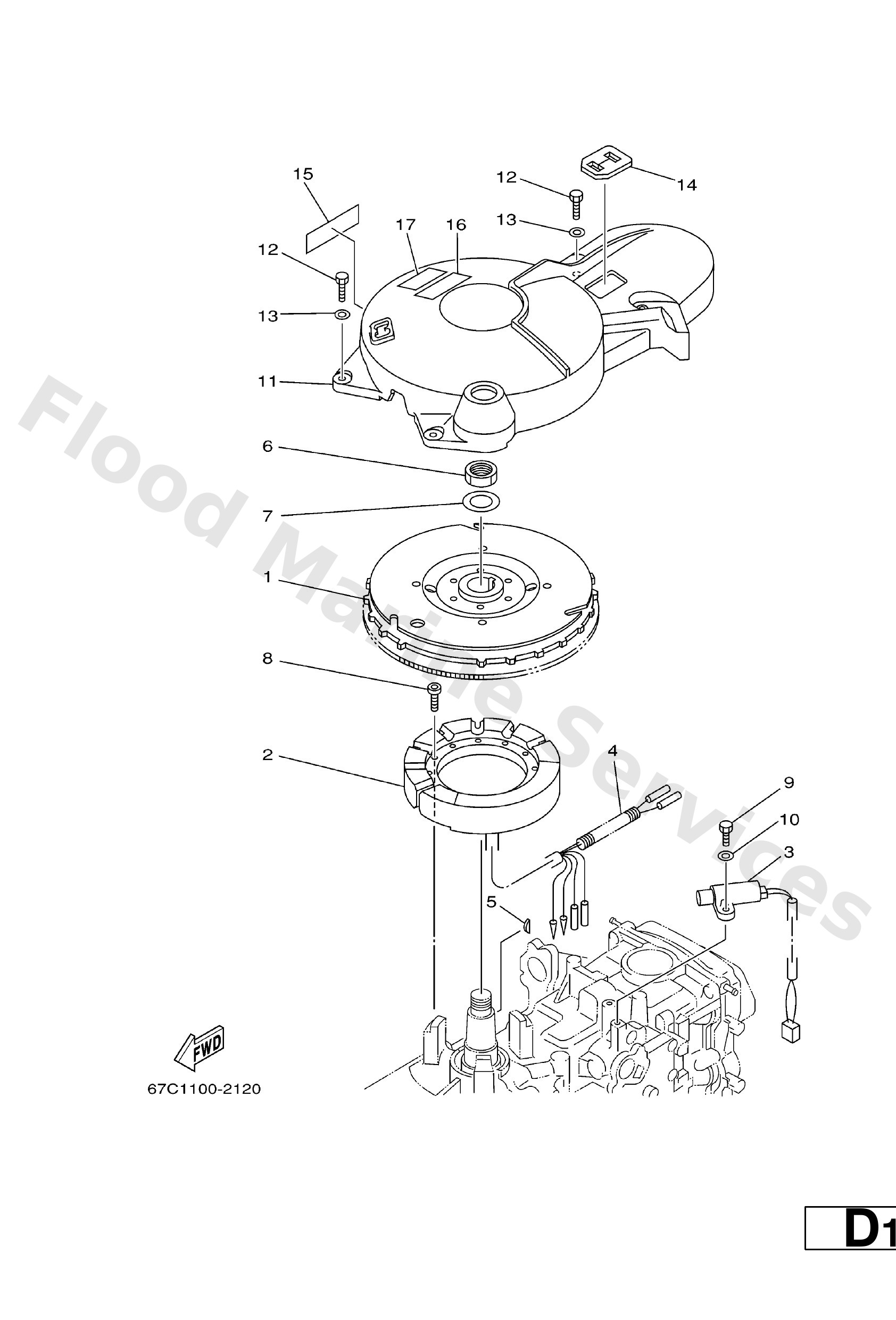

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
65W8555011
Rotor assembly
Loading…
↗
1
65W8555001
MHD–F40–FOR USA
Rotor assembly
Loading…
↗
2
65W8551010
MHD–F40–FOR USA
Stator assembly
Loading…
↗
2
65W8551000
Stator assembly
Loading…
↗
3
65W8558000
Coil, pulser
Loading…
↗
4
9044610M82
Hose
Loading…
↗
5
65W1154500
Key, woodruff
Loading…
↗
6
9017020137
Nut, hexagon(663)
Loading…
↗
7
9020121M18
Washer, plate (663)
Loading…
↗
8
9138005030
MHD–F40–FOR USA
Bolt,socket
Loading…
↗
8
9138005025
Bolt, hex. socket head
Loading…
↗
9
9709505016
Bolt(6a1)
Loading…
↗
10
9299505600
Washer, plain (646)
Loading…
↗
11
67C8133700
Cover, flywheel
Loading…
↗
12
9709506025
Bolt
Loading…
↗
13
9299506600
Washer, plain (646)
Loading…
↗
14
65W8163910
Plate, Armature Fitting
Loading…
↗
15
62Y1343740
FOR USA,OCEANIA
Mark, Caution
Loading…
↗
15
62Y1343750
FOR CANADA
Mark, Caution
Loading…
↗
15
62Y1343760
FOR CARIB
Mark, caution
Loading…
↗
16
6A18362541
Mark 5
Loading…
↗
17
6A18362551
FOR CANADA,CARIB
-
Loading…
↗
