F40GET (2018)
GENERATOR

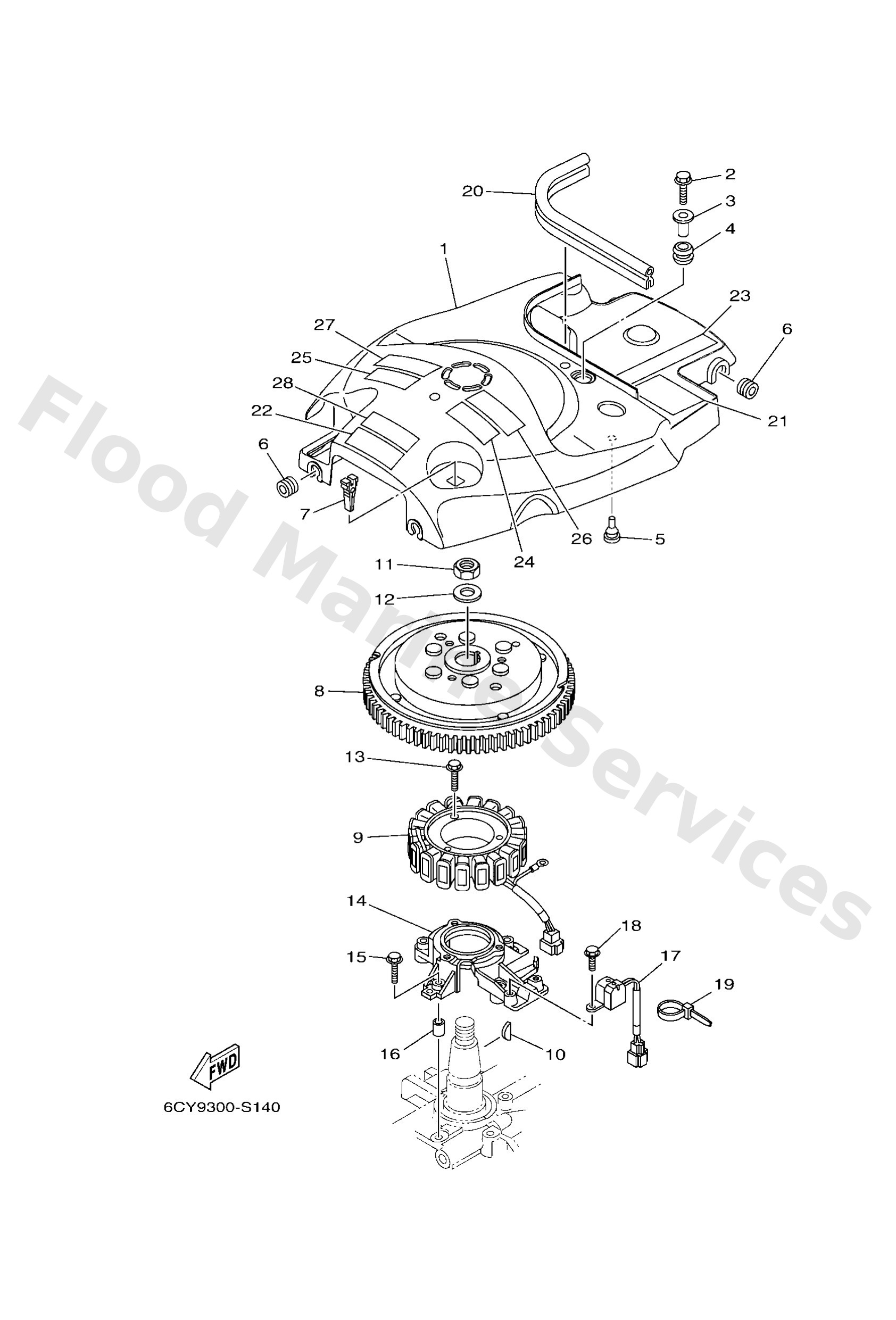

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6CJ8133710
Cover, flywheel
Loading…
↗
2
9589506020
Bolt, flange(jk3)
Loading…
↗
3
9038706285
Collar
Loading…
↗
4
9048015M31
Grommet (6g1)
Loading…
↗
5
9048006M19
Grommet (6e3)
Loading…
↗
6
9048012314
Grommet(3aa)
Loading…
↗
7
67F2812A00
Puller, fuse
Loading…
↗
8
6C58145000
Rotor assembly
Loading…
↗
9
6C58141001
Stator assembly
Loading…
↗
10
6H41154500
Key, woodruff
Loading…
↗
11
9017020137
Nut, hexagon(663)
Loading…
↗
12
9020121M18
Washer, plate (663)
Loading…
↗
13
9502306030
Bolt, flange(4as)
Loading…
↗
14
6C58556100
Base, magneto
Loading…
↗
16
9953008012
Pin, dowel(6g8)
Loading…
↗
17
62Y8558000
Coil, pulser
Loading…
↗
18
9759505512
Bolt, hexagon
Loading…
↗
19
9046513M97
Clamp
Loading…
↗
20
6BG4261700
Damper, form
Loading…
↗
21
62Y8362600
Mark. 6
Loading…
↗
22
6CJ8191900
Graphic, regulator
Loading…
↗
23
6C51343763
Mark, caution
Loading…
↗
24
6EE8199540
Label, warning
Loading…
↗
25
6EE8199550
Label, warning
Loading…
↗
26
6EE8199440
Label, safety
Loading…
↗
27
6EE8199450
Label, safety
Loading…
↗
28
6AG8199600
Mark
Loading…
↗
