Yamaha Outboard Parts - GENERATOR - F4AMH (2003) | Flood Marine

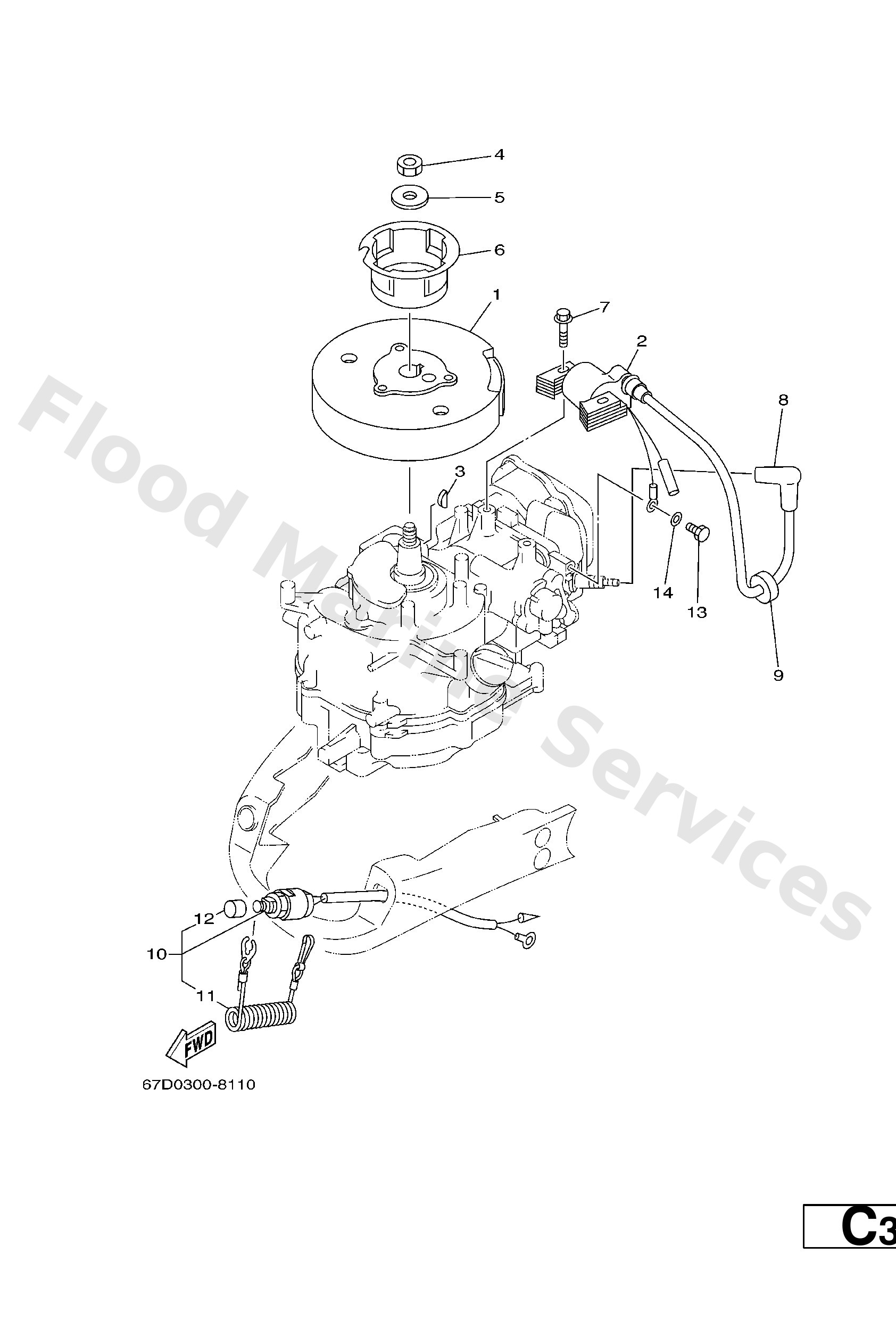

Diagram: GENERATOR

Diagram

Parts List

Reference
Description
Price


1
67D−85650−00
Rotor assembly
Loading…

↗
2
67D−85640−00
T.c.i. unit assembly
Loading…

↗
3
90280−04M06
Key, woodruff(6a1)
Loading…

↗
4
90170−10M33
Nut(6a1)
Loading…

↗
5
90201−105A2
Washer, plate (4x7)
Loading…

↗
6
67D−15723−00
Pulley, Starter
Loading…

↗
7
90105−06M24
Bolt (6g1)
Loading…

↗
8
6E3−82370−21
Plug cap assembly
Loading…

↗
9
90480−25161
Grommet(656)
Loading…

↗
10
67D−82575−00
Engine stop switch assembly
Loading…

↗
11
682−82556−00
Lanyard, stop switch
Loading…

↗
12
689−8257Y−00
Cap
Loading…

↗
13
97095−06012
Bolt(gh1)
Loading…

↗
14
92995−06600
Washer, plain (646)
Loading…

↗
