F4AMH (2009)
GENERATOR

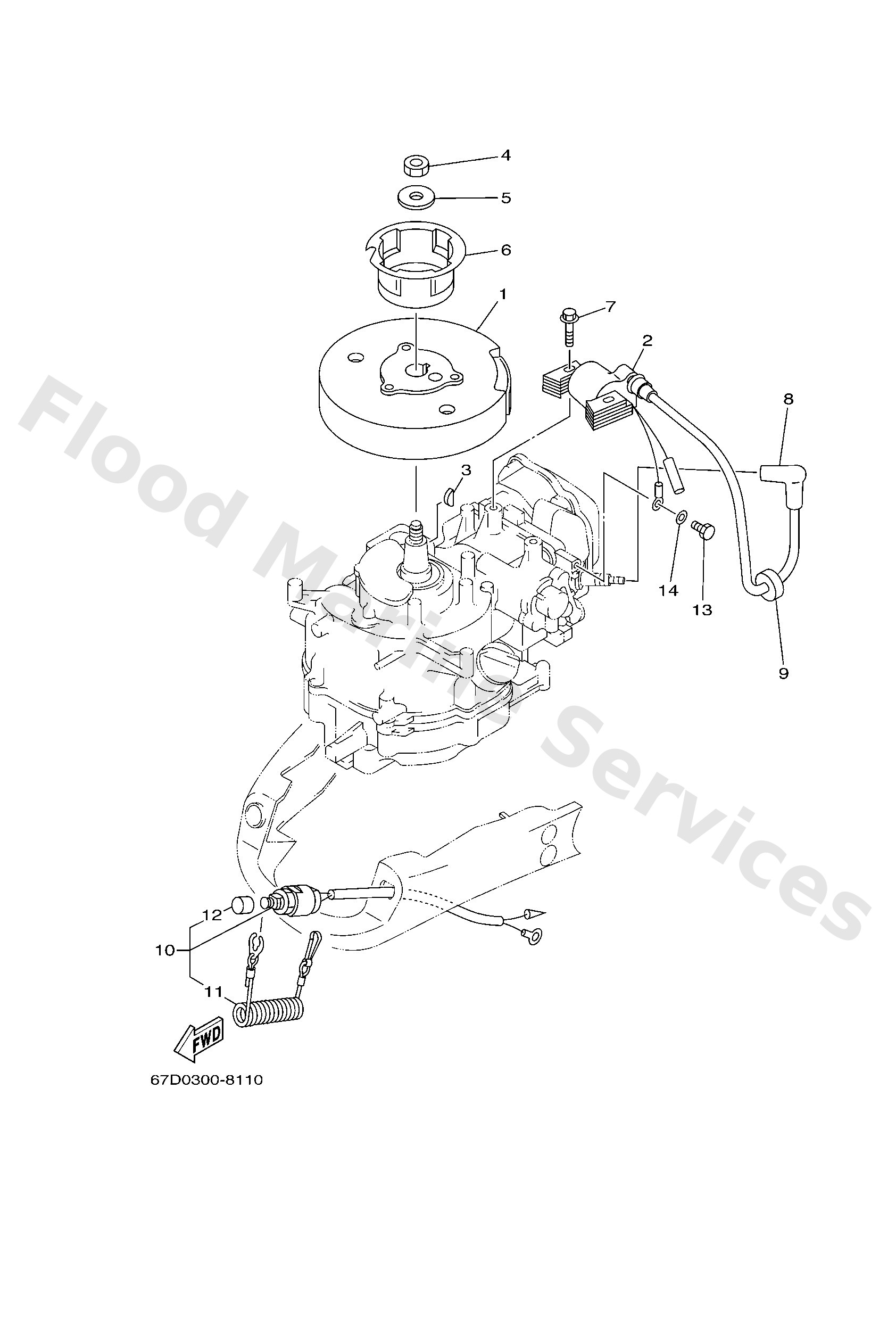

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
67D8565000
Rotor assembly
Loading…
↗
2
67D8564000
T.c.i. unit assembly
Loading…
↗
3
9028004M06
Key, woodruff(6a1)
Loading…
↗
4
9017010M33
Nut(6a1)
Loading…
↗
5
90201105A2
Washer, plate (4x7)
Loading…
↗
6
67D1572300
Pulley, Starter
Loading…
↗
7
9010506M24
Bolt (6g1)
Loading…
↗
8
6E38237021
Plug cap assembly
Loading…
↗
9
9048025161
Grommet(656)
Loading…
↗
10
67D8257500
Engine stop switch assembly
Loading…
↗
11
6828255600
Lanyard, stop switch
Loading…
↗
12
6898257Y00
Cap
Loading…
↗
13
9709506012
Bolt(gh1)
Loading…
↗
14
9299506600
Washer, plain (646)
Loading…
↗
