F50AEHT (2002)
GENERATOR

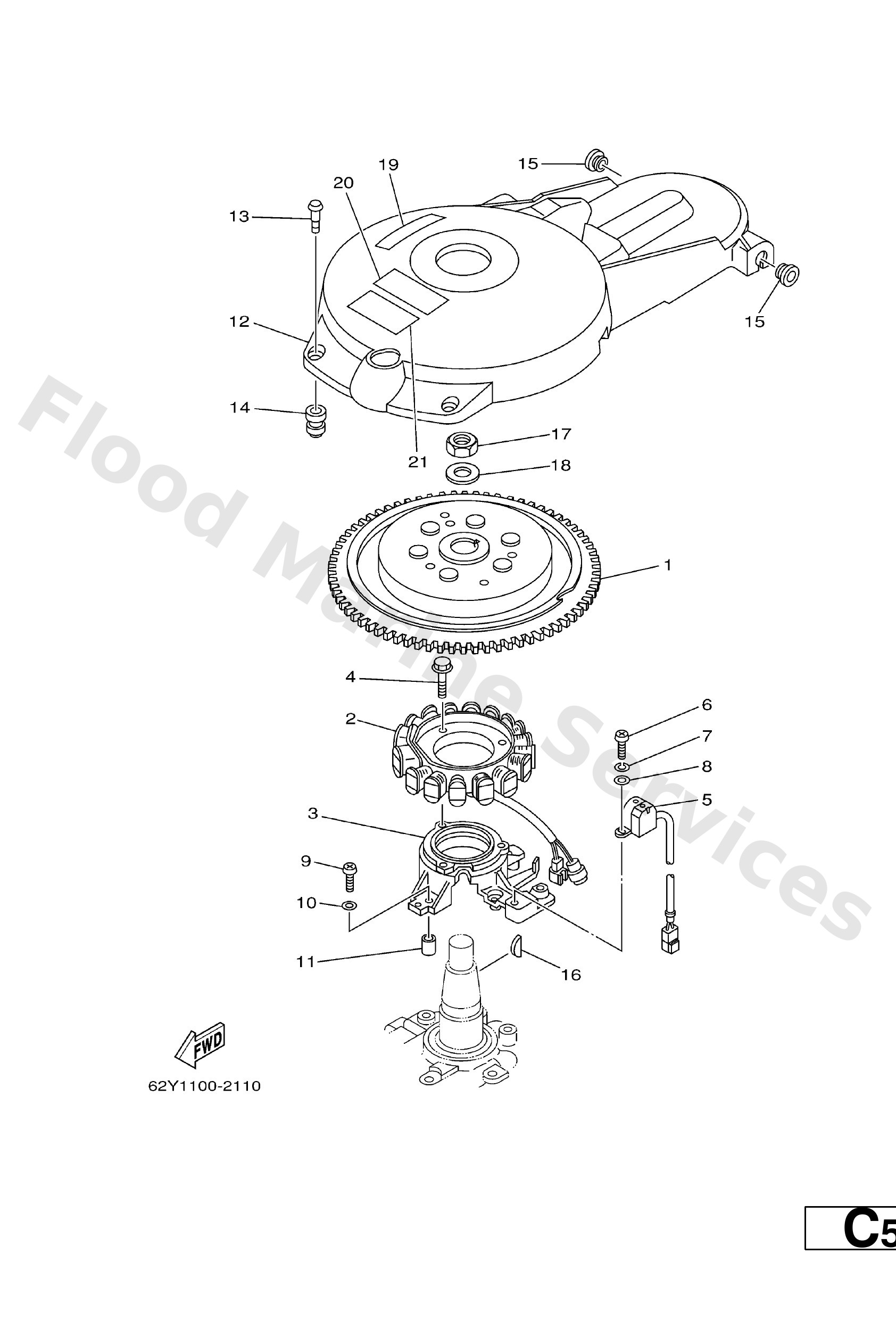

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
64J8555000
-
Loading…
↗
2
64J8551000
Stator assembly
Loading…
↗
3
62Y855610094
Base, magneto
Loading…
↗
4
9502306025
Bolt, flange(4kg)
Loading…
↗
5
62Y8558000
Coil, pulser
Loading…
↗
6
9788005012
Screw,pan head (646)
Loading…
↗
7
9299005100
Ybs67-5 washer, spring
Loading…
↗
8
9299005600
Washer, plain (646)
Loading…
↗
9
9788006025
Screw, pan head(6b0)
Loading…
↗
10
9299006600
Washer, plain (646)
Loading…
↗
11
9953008012
Pin, dowel(6g8)
Loading…
↗
12
62Y8133711
Cover, flywheel
Loading…
↗
13
6K78133801
Stay
Loading…
↗
14
6638231701
Damper, ignition coil
Loading…
↗
15
9048012072
Grommet(53y)
Loading…
↗
16
6H41154500
Key, woodruff
Loading…
↗
17
9017020137
Nut, hexagon(663)
Loading…
↗
18
9020121M18
Washer, plate (663)
Loading…
↗
19
62Y1343740
FOR USA,OCEANIA
Mark, Caution
Loading…
↗
19
62Y1343750
FOR CANADA
Mark, Caution
Loading…
↗
20
6A18362541
Mark 5
Loading…
↗
21
6A18362551
FOR CANADA
Mark 5
Loading…
↗
