F50FED (2005)
GENERATOR

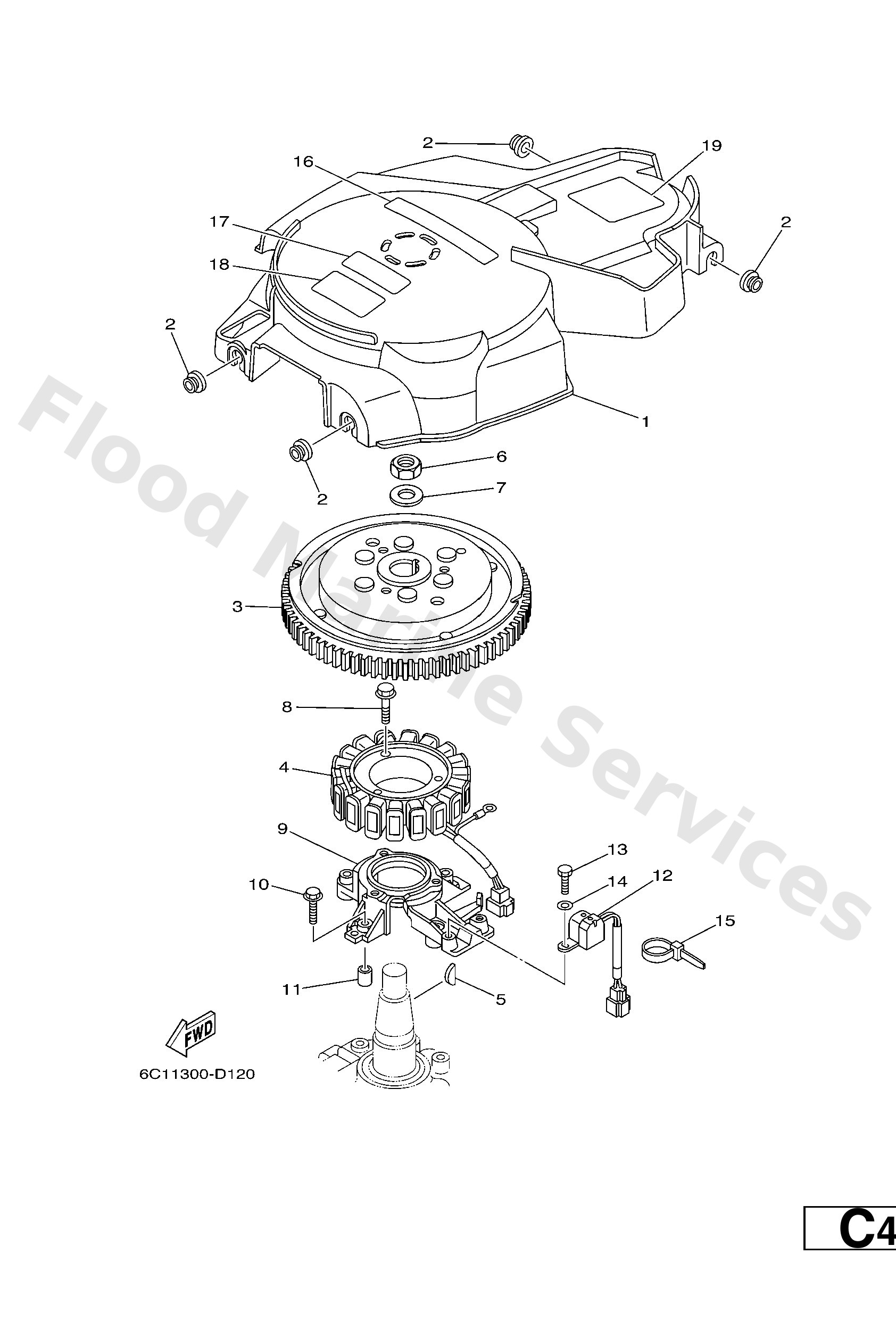

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6C58133700
Cover, flywheel
Loading…
↗
2
9048012072
Grommet(53y)
Loading…
↗
3
6C58145000
Rotor assembly
Loading…
↗
4
6C58141000
Stator assembly
Loading…
↗
5
6H41154500
Key, woodruff
Loading…
↗
6
9017020137
Nut, hexagon(663)
Loading…
↗
7
9020121M18
Washer, plate (663)
Loading…
↗
8
9502306030
Bolt, flange(4as)
Loading…
↗
9
6C5855610094
Base, magneto
Loading…
↗
11
9953008012
Pin, dowel(6g8)
Loading…
↗
12
62Y8558000
Coil, pulser
Loading…
↗
13
9709505012
Bolt, hexagon
Loading…
↗
14
9299505600
Washer, plain (646)
Loading…
↗
15
9046513M97
Clamp
Loading…
↗
16
6C51343760
Mark, caution
Loading…
↗
17
6A18362541
Mark 5
Loading…
↗
18
6A18362551
Mark 5
Loading…
↗
19
62Y8362600
Mark. 6
Loading…
↗
