F5AMH (2019)
GENERATOR

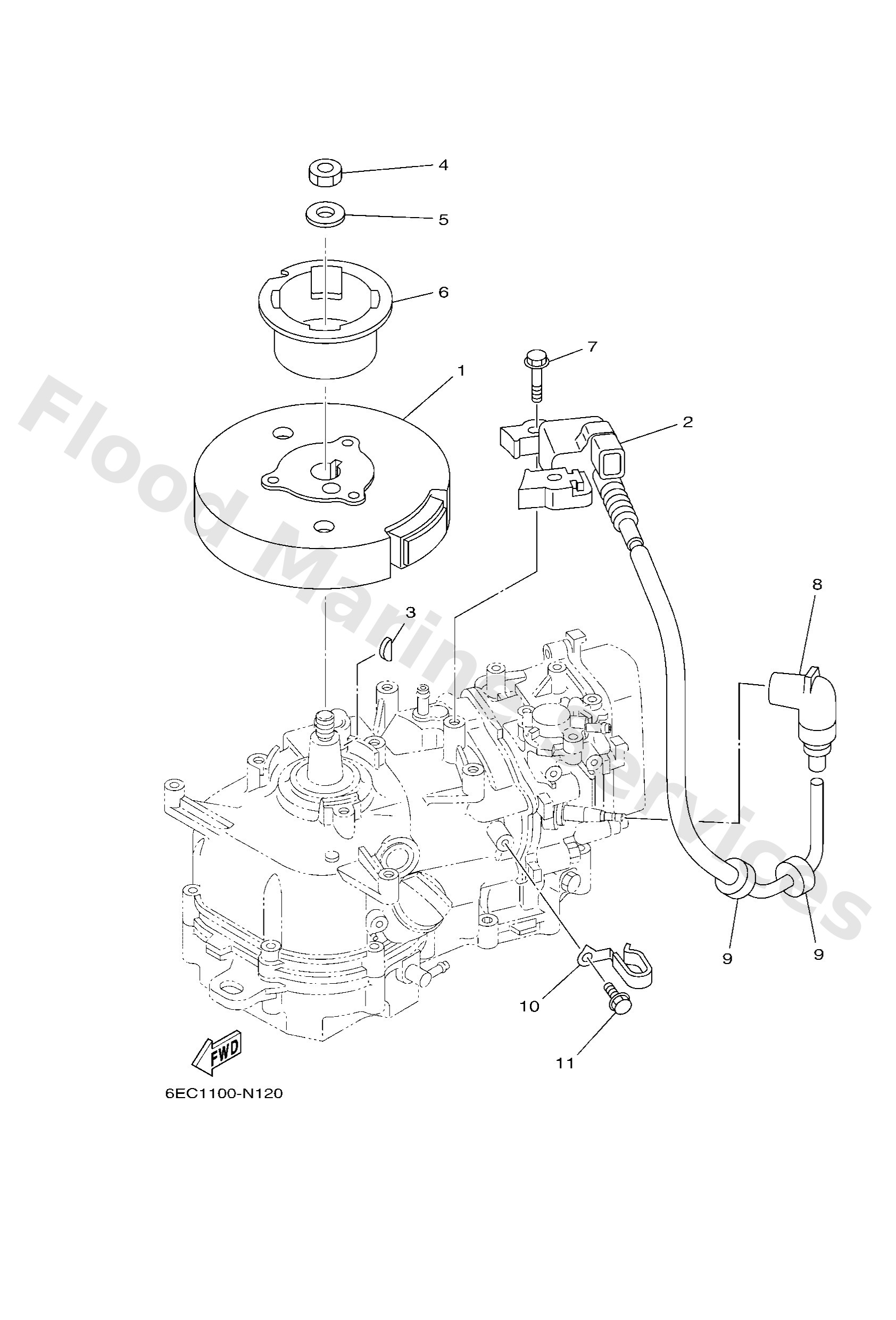

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6BX8555000
Rotor assembly
Loading…
↗
2
6BV8557101
Ignition coil with cdi unit
Loading…
↗
2
6BX8557100
Ignition coil with cdi unit
Loading…
↗
2
6BW8557101
Ignition coil with cdi unit
Loading…
↗
3
9028004M06
Key, woodruff(6a1)
Loading…
↗
4
9017012066
Nut, hexagon 6481155500
Loading…
↗
5
9020112472
Washer, plate (4n0)
Loading…
↗
6
6BX1572300
Pulley, starter
Loading…
↗
7
9010506037
Bolt, flange
Loading…
↗
8
6BX8237000
Plug cap assembly
Loading…
↗
9
9048025161
Grommet(656)
Loading…
↗
10
9046508361
Clamp(7mx)
Loading…
↗
11
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
