Yamaha Outboard Parts - GENERATOR - F6CMH (2015) | Flood Marine

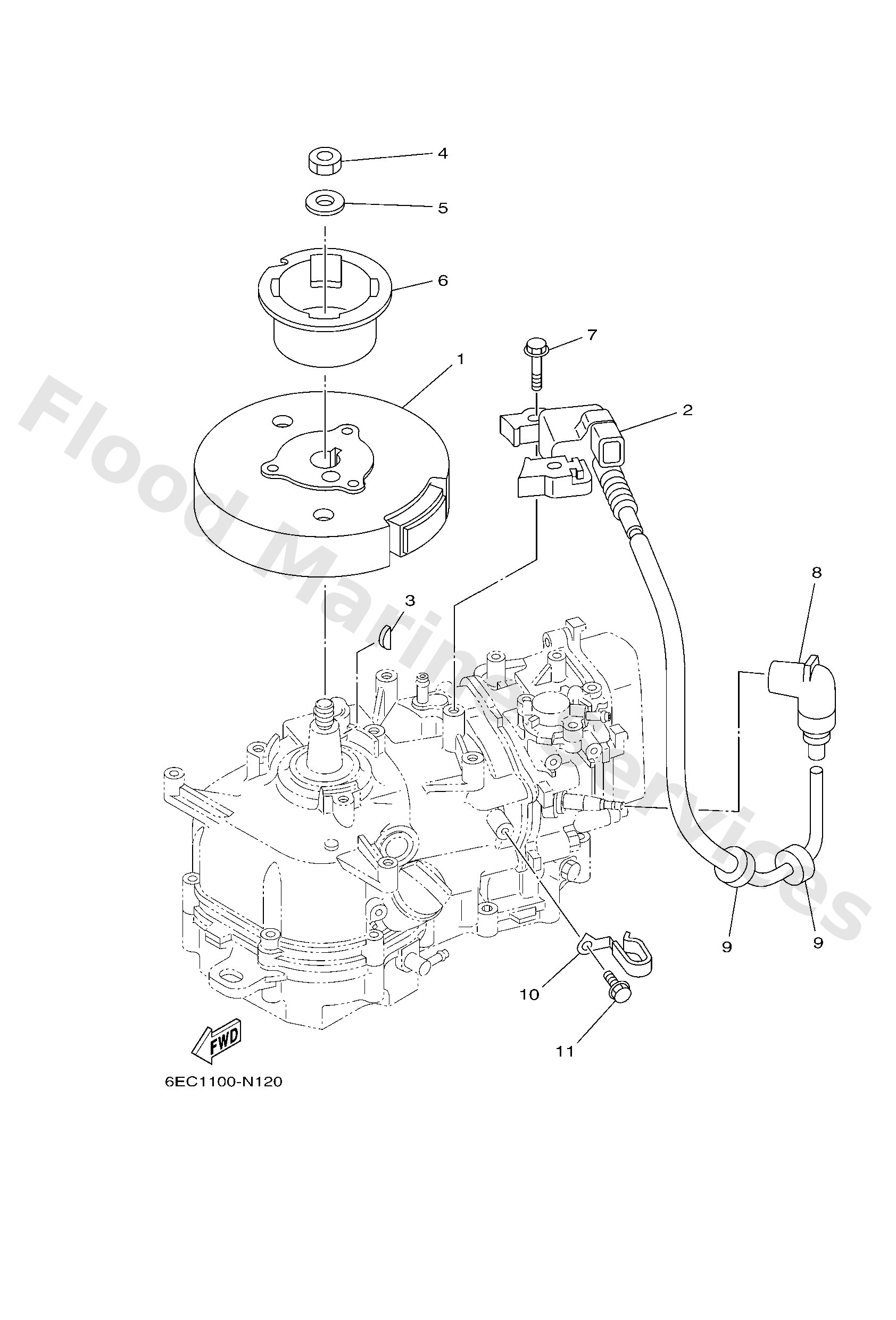

Diagram: GENERATOR

Diagram

Parts List

Reference
Description
Price


1
6BX8555000
Rotor assembly
Loading…

↗
2
6BV8557101
Ignition coil with cdi unit
Loading…

↗
2
6BW8557101
Ignition coil with cdi unit
Loading…

↗
2
6BX8557100
Ignition coil with cdi unit
Loading…

↗
3
9028004M06
Key, woodruff(6a1)
Loading…

↗
4
9017012066
Nut, hexagon 6481155500
Loading…

↗
5
9020112472
Washer, plate (4n0)
Loading…

↗
6
6BX1572300
Pulley, starter
Loading…

↗
7
9010506037
Bolt, flange
Loading…

↗
8
6BX8237000
Plug cap assembly
Loading…

↗
9
9048025161
Grommet(656)
Loading…

↗
10
9046508361
Clamp(7mx)
Loading…

↗
11
9759506512
Bolt, hexagon w/w deep recess
Loading…

↗
