F80BET (2017)
GENERATOR

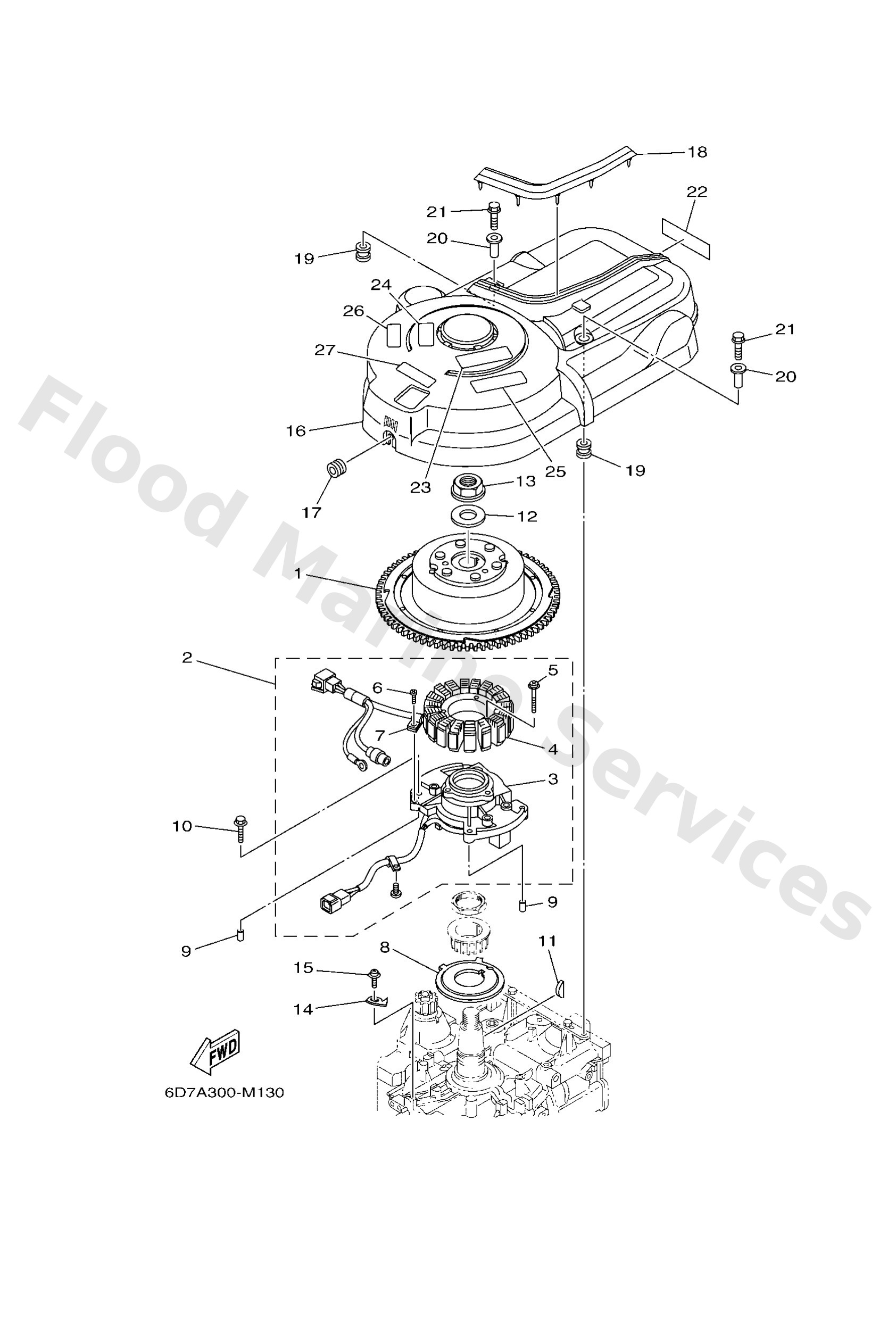

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6D88145000
Rotor assembly
Loading…
↗
2
6D88146000
Base assembly
Loading…
↗
3
6D88558000
Coil, pulser
Loading…
↗
4
6D88141000
Stator assembly
Loading…
↗
5
63D8134520
Screw, pan
Loading…
↗
6
9760704110
Screw, pan head with washer (s
Loading…
↗
7
4458132820
Clamp, read
Loading…
↗
8
68V8167310
Rotor
Loading…
↗
9
9953008012
Pin, dowel(6g8)
Loading…
↗
10
9759506630
Bolt, hexagon w/w deep recess
Loading…
↗
11
9028005015
Key, woodruff
Loading…
↗
12
9020124014
Washer, plate
Loading…
↗
13
9017924002
Nut
Loading…
↗
14
6D88133200
Plate, timing
Loading…
↗
15
9798506210
Screw pan head
Loading…
↗
16
6D88133700
Cover, flywheel
Loading…
↗
17
9048012314
Grommet(3aa)
Loading…
↗
18
6D88554700
Damper
Loading…
↗
19
6638231701
Damper, ignition coil
Loading…
↗
20
9038706119
Collar
Loading…
↗
21
9589506020
Bolt, flange(jk3)
Loading…
↗
22
68V1343763
Mark, caution
Loading…
↗
23
6EE8199540
Label, warning
Loading…
↗
24
6EE8199550
Label, warning
Loading…
↗
25
6EE8199440
Label, safety
Loading…
↗
26
6EE8199450
Label, safety
Loading…
↗
27
6AG8199600
Mark
Loading…
↗
