F80DET (2019)
GENERATOR

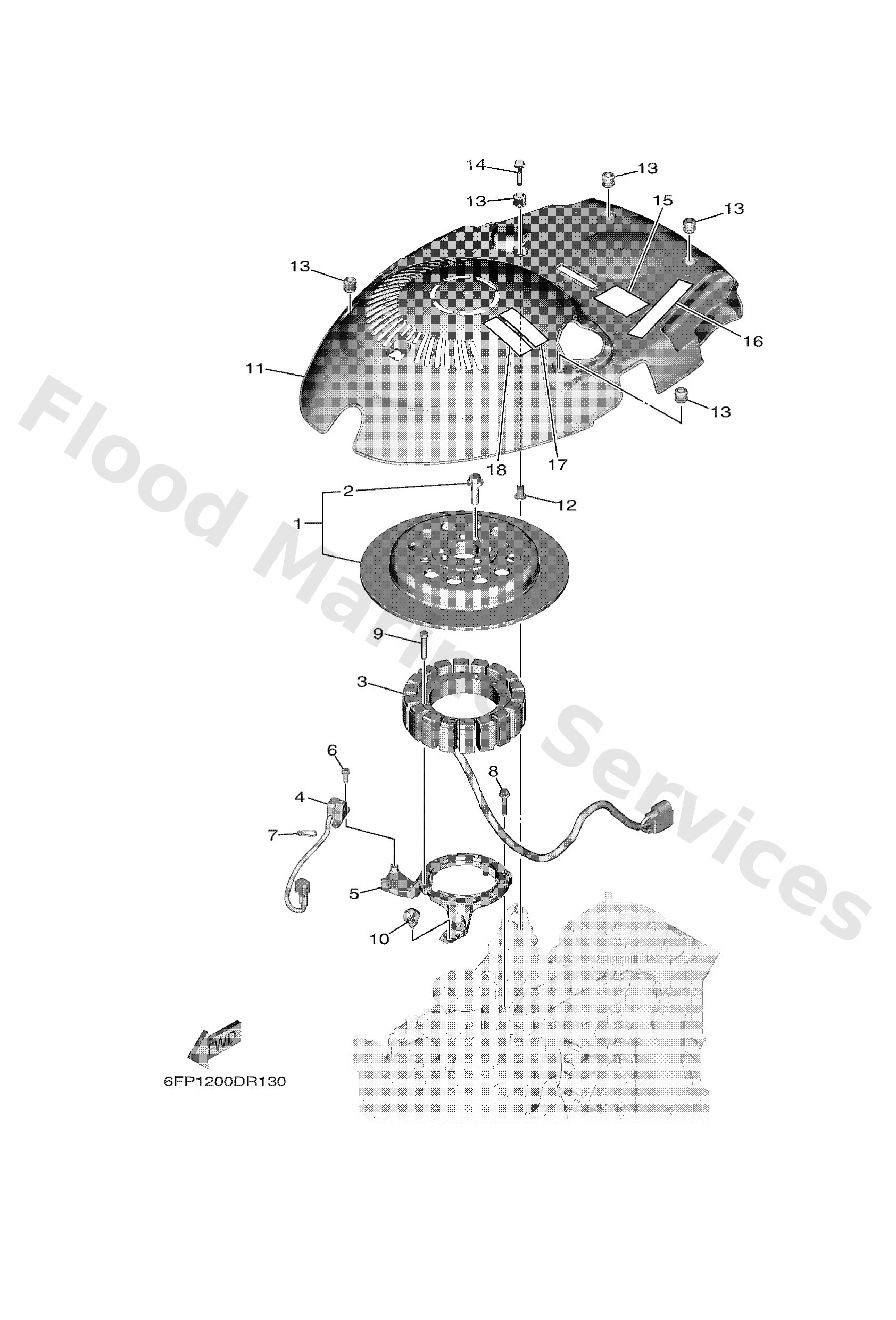

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6FPW814501
Rotor assembly with bolts
Loading…
↗
2
6FPW901000
Bolt set
Loading…
↗
3
6FP8141000
Stator assembly
Loading…
↗
4
6CB8558000
Coil, pulser
Loading…
↗
5
6FP8556100
Base, magneto
Loading…
↗
6
9010905M89
Bolt, with washer
Loading…
↗
7
9046511M10
Clamp
Loading…
↗
8
95D9506030
Bolt, flange deep recess
Loading…
↗
9
9131206035
Bolt(j17)
Loading…
↗
10
9046413249
Clamp
Loading…
↗
11
6FP8133700
Cover, flywheel
Loading…
↗
12
9038706119
Collar
Loading…
↗
13
6A08231700
Damper, ignition coil
Loading…
↗
15
6FP8362600
Mark 6
Loading…
↗
16
6EK1343761
Mark, caution
Loading…
↗
17
6EE8199440
Label, safety
Loading…
↗
18
6EE8199450
Label, safety
Loading…
↗
