F8FMH (2023)
GENERATOR

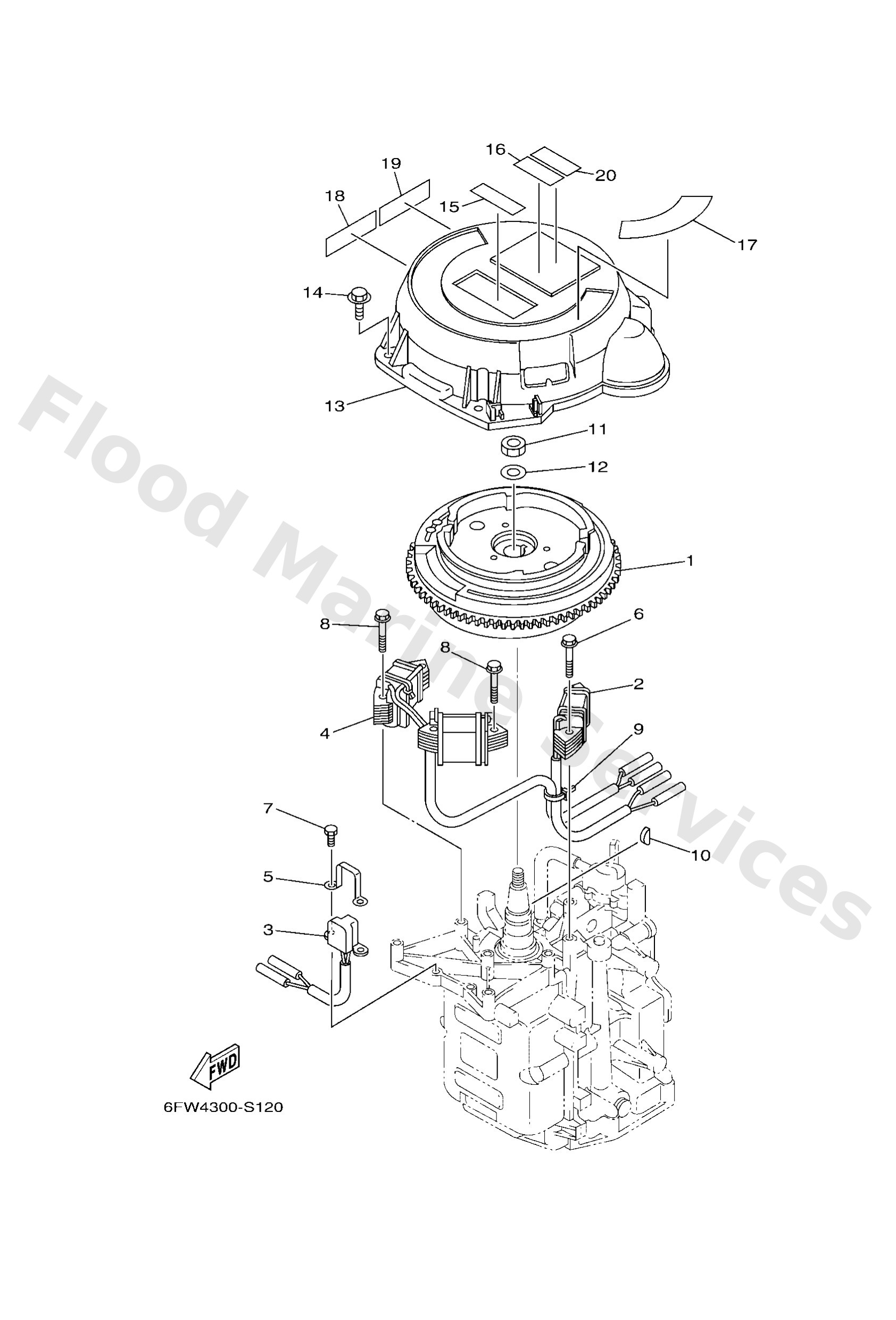

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6DR8555010
Rotor assembly
Loading…
↗
2
68T8552000
Coil, charge
Loading…
↗
3
68T8558001
Coil, pulser
Loading…
↗
4
68T8553310
Coil, lighting
Loading…
↗
5
6H28558200
Attachment, pulser
Loading…
↗
6
9011906014
Bolt, with washer(61b)
Loading…
↗
7
9709505010
Bolt (682)
Loading…
↗
8
9011906MA1
Bolt, with washer(63m)
Loading…
↗
9
9046511M10
Clamp
Loading…
↗
10
9028004M06
Key, woodruff(6a1)
Loading…
↗
11
9017012066
Nut, hexagon 6481155500
Loading…
↗
12
9020112472
Washer, plate (4n0)
Loading…
↗
13
6AV8133700
Cover, flywheel
Loading…
↗
14
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
15
6EE8199540
Label, warning
Loading…
↗
16
6EE8199550
Label, warning
Loading…
↗
17
68T8571160
Mark, caution
Loading…
↗
18
6EE8199440
Label, safety
Loading…
↗
19
6EE8199450
Label, safety
Loading…
↗
20
6AG8199600
Mark
Loading…
↗
