F9.9HMH1 (2017)
GENERATOR

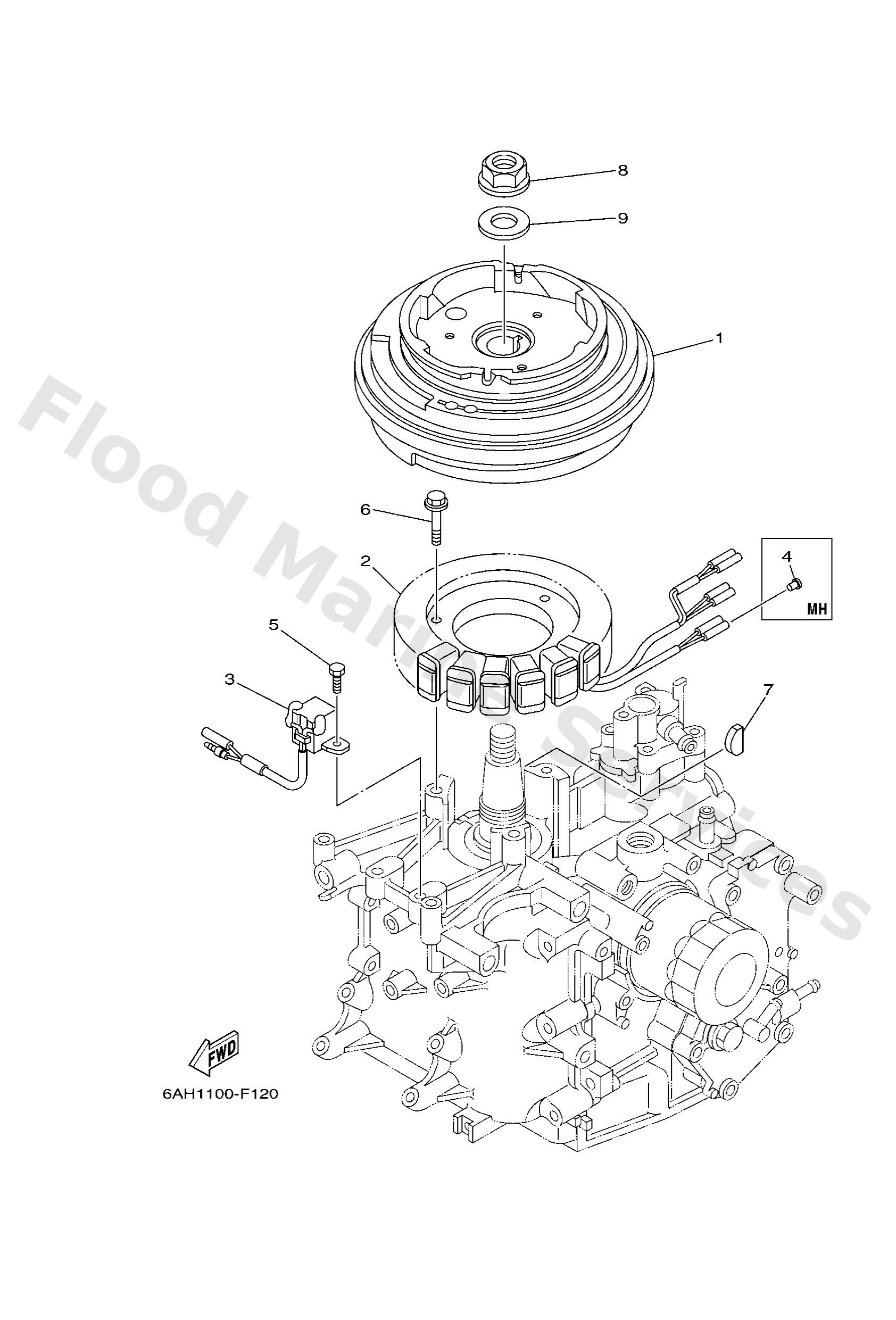

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6AH8555010
Rotor assembly
Loading…
↗
1
6AH8555000
Rotor assembly
Loading…
↗
2
6AH8551000
Stator assembly
Loading…
↗
3
6AH8558000
Coil, pulser
Loading…
↗
4
7038211900
Cover, lead wire
Loading…
↗
5
9709505012
Bolt, hexagon
Loading…
↗
6
9589506030
Bolt, flange deep recess
Loading…
↗
7
9028005013
Key, woodruff
Loading…
↗
8
9017916M05
Nut (689)
Loading…
↗
9
9020116M44
Washer (689)
Loading…
↗
