FL115AET (2002)
GENERATOR

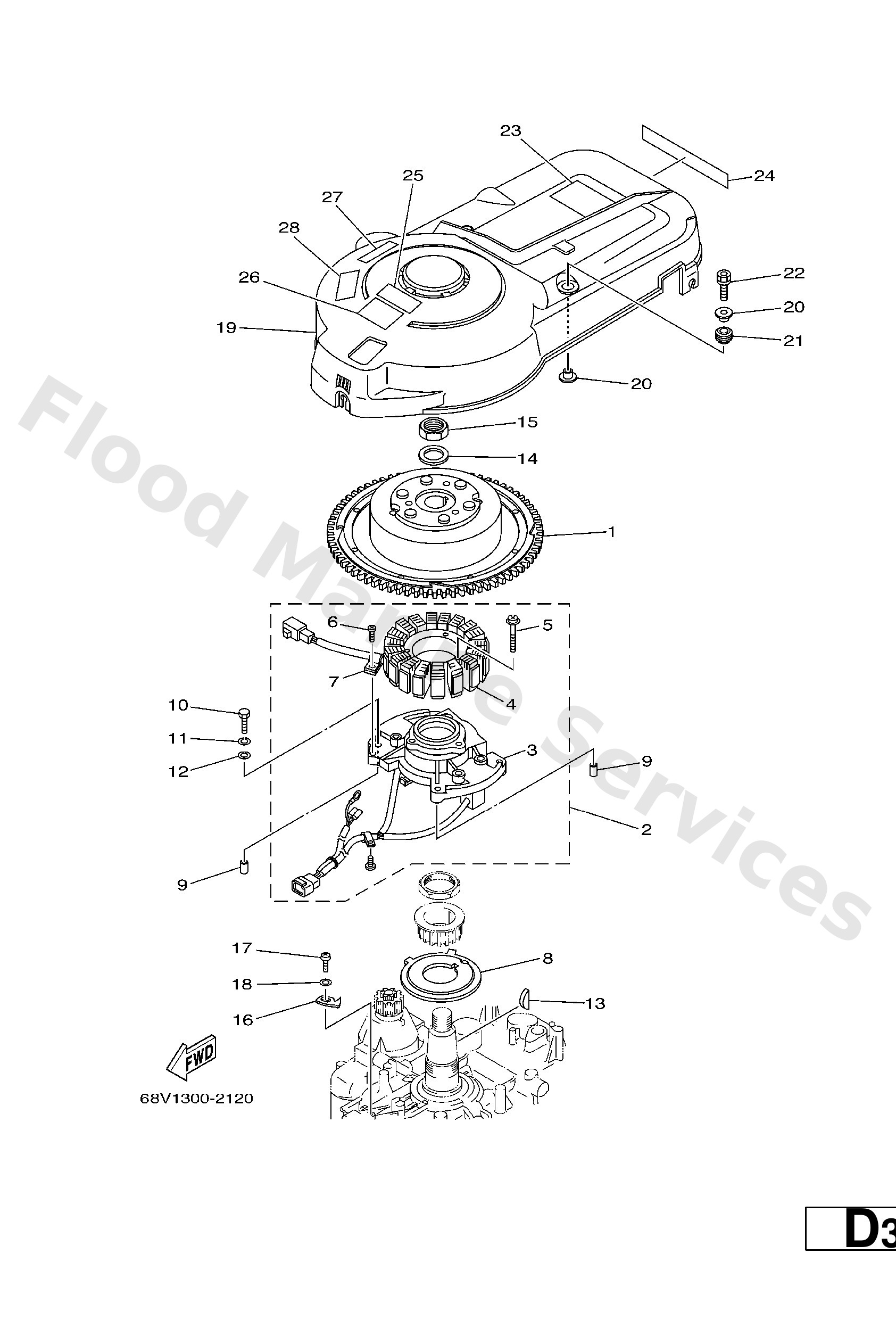

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
68V−81450−00
Rotor assembly
Loading…
↗
2
68V−81460−00
Base assembly
Loading…
↗
3
68V−85580−00
Coil, pulser
Loading…
↗
4
68V−81410−00
Stator assembly
Loading…
↗
5
63D−81345−20
Screw, pan
Loading…
↗
6
97607−04112
Screw, pan head
Loading…
↗
7
445−81328−20
Clamp, read
Loading…
↗
8
68V−81673−00
Rotor
Loading…
↗
9
99530−08012
Pin, dowel(6g8)
Loading…
↗
10
97095−06030
Bolt(jf7)
Loading…
↗
11
92995−06100
Washer(6a1)
Loading…
↗
12
92995−06600
Washer, plain (646)
Loading…
↗
13
90280−04M08
Key, woodruff
Loading…
↗
14
90201−25M02
Washer, plate(61a)
Loading…
↗
15
90170−24M22
Nut(61a)
Loading…
↗
16
67F−81332−00
Plate, timing
Loading…
↗
17
97885−06010
Screw pan head
Loading…
↗
19
67F−81337−01
Cover, flywheel
Loading…
↗
20
90387−06M71
Collar (6g8)
Loading…
↗
21
90480−15M31
Grommet (6g1)
Loading…
↗
22
90119−06M92
Bolt, with washer
Loading…
↗
23
67F−12138−60
Mark, Caution
Loading…
↗
24
67F−13437−60
Mark, Caution
Loading…
↗
25
6A1−83625−41
Mark 5
Loading…
↗
26
6A1−83625−51
Mark 5
Loading…
↗
27
6K1−83623−41
Mark 3
Loading…
↗
28
6K1−83623−50
Mark 3
Loading…
↗
