Yamaha Outboard Parts - GENERATOR - FL115AET (2003) | Flood Marine

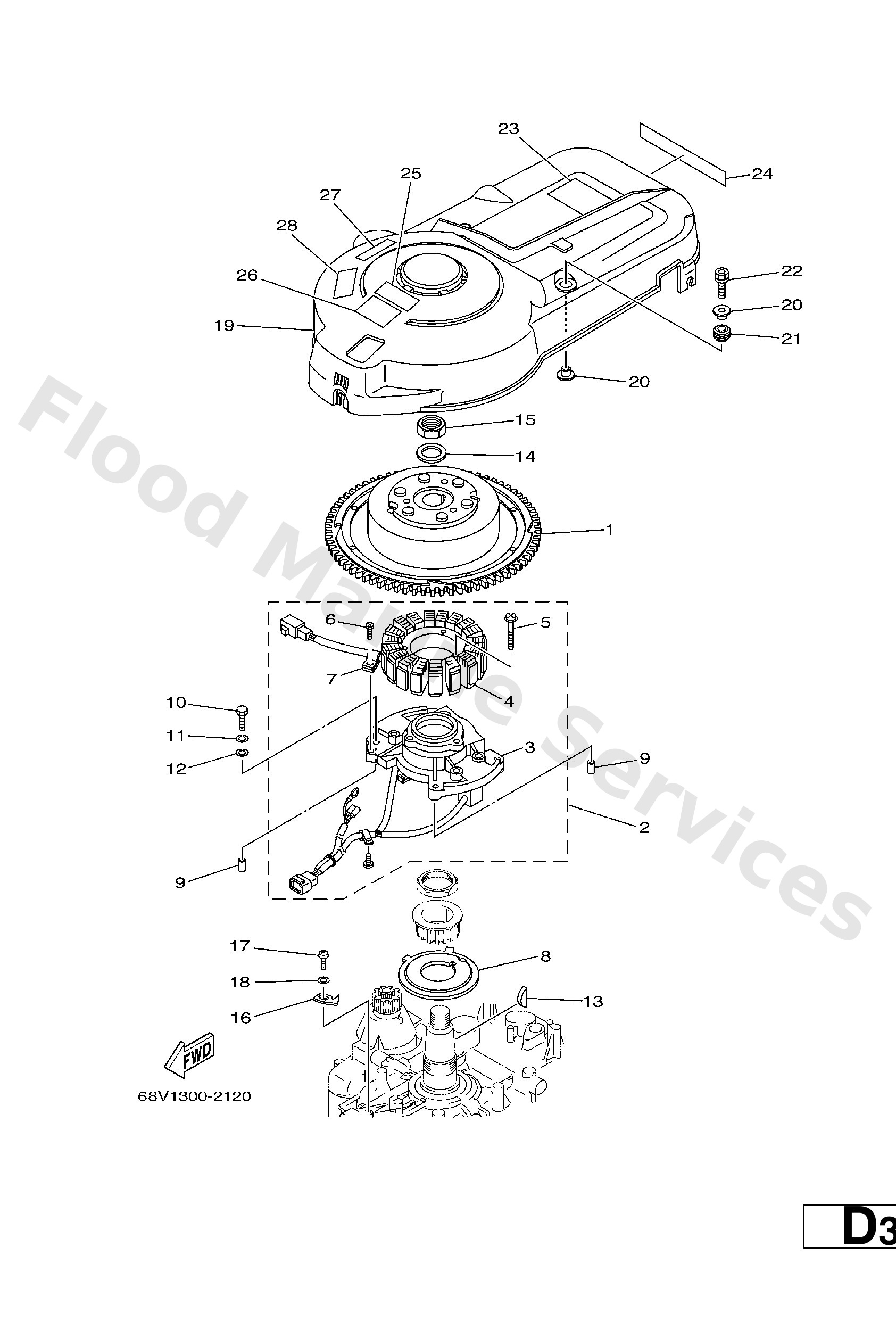

Diagram: GENERATOR

Diagram

Parts List

Reference
Description
Price


1
68V−81450−00
Rotor assembly
Loading…

↗
2
68V−81460−00
Base assembly
Loading…

↗
3
68V−85580−00
Coil, pulser
Loading…

↗
4
68V−81410−00
Stator assembly
Loading…

↗
5
63D−81345−20
Screw, pan
Loading…

↗
6
97607−04112
Screw, pan head
Loading…

↗
7
445−81328−20
Clamp, read
Loading…

↗
8
68V−81673−00
Rotor
Loading…

↗
9
99530−08012
Pin, dowel(6g8)
Loading…

↗
10
97095−06030
Bolt(jf7)
Loading…

↗
11
92995−06100
Washer(6a1)
Loading…

↗
12
92995−06600
Washer, plain (646)
Loading…

↗
13
90280−04M08
Key, woodruff
Loading…

↗
14
90201−24014
Washer, plate
Loading…

↗
15
90179−24002
Nut
Loading…

↗
16
67F−81332−00
Plate, timing
Loading…

↗
17
97885−06010
Screw pan head
Loading…

↗
19
67F−81337−01
Cover, flywheel
Loading…

↗
20
90387−06M71
Collar (6g8)
Loading…

↗
21
90480−15M31
Grommet (6g1)
Loading…

↗
22
90119−06M92
Bolt, with washer
Loading…

↗
23
67F−12138−60
Mark, Caution
Loading…

↗
24
67F−13437−61
Mark, Caution
Loading…

↗
25
6A1−83625−41
Mark 5
Loading…

↗
26
6A1−83625−51
16 −
Loading…

↗
27
6K1−83623−41
16 −
Loading…

↗
28
6K1−83623−50
16 −
Loading…

↗
