FL115BET (2014)
GENERATOR

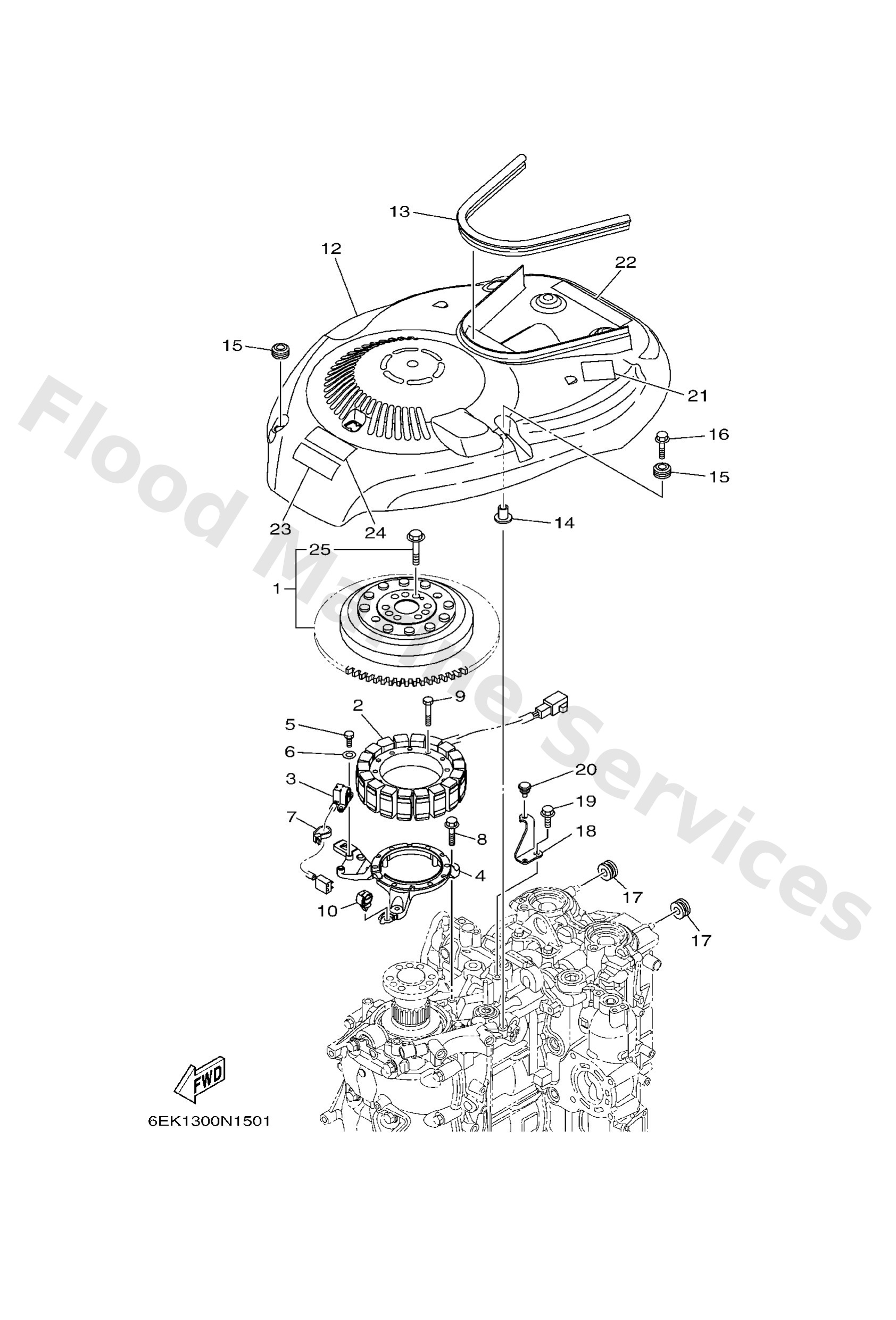

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6EKW814500
Rotor assembly with bolts
Loading…
↗
2
6EK8141000
Stator assembly
Loading…
↗
3
6CB8558000
Coil, pulser
Loading…
↗
4
6EK8556100
Base, magneto
Loading…
↗
5
9709505016
Bolt(6a1)
Loading…
↗
6
9299505600
Washer, plain (646)
Loading…
↗
7
9046513M97
Clamp
Loading…
↗
8
9589506030
Bolt, flange deep recess
Loading…
↗
9
9131206035
Bolt(j17)
Loading…
↗
10
9046413249
Clamp
Loading…
↗
12
6EK8133700
Cover, flywheel
Loading…
↗
13
6EK4261700
Damper, form
Loading…
↗
14
9038706119
Collar
Loading…
↗
15
6A08231700
Damper, ignition coil
Loading…
↗
17
9048012314
Grommet(3aa)
Loading…
↗
18
6EK8132G00
Plate
Loading…
↗
19
9589506016
Bolt, flange deep recess
Loading…
↗
20
9048006M19
Grommet (6e3)
Loading…
↗
21
6EK8362600
Mark 6
Loading…
↗
22
6EK1343760
Mark, caution
Loading…
↗
23
6AH8199440
Label, safety
Loading…
↗
24
6AH8199450
Label, safety
Loading…
↗
25
6EKW901000
Bolt set
Loading…
↗
