Yamaha Outboard Parts - GENERATOR - FL150AET (2005) | Flood Marine

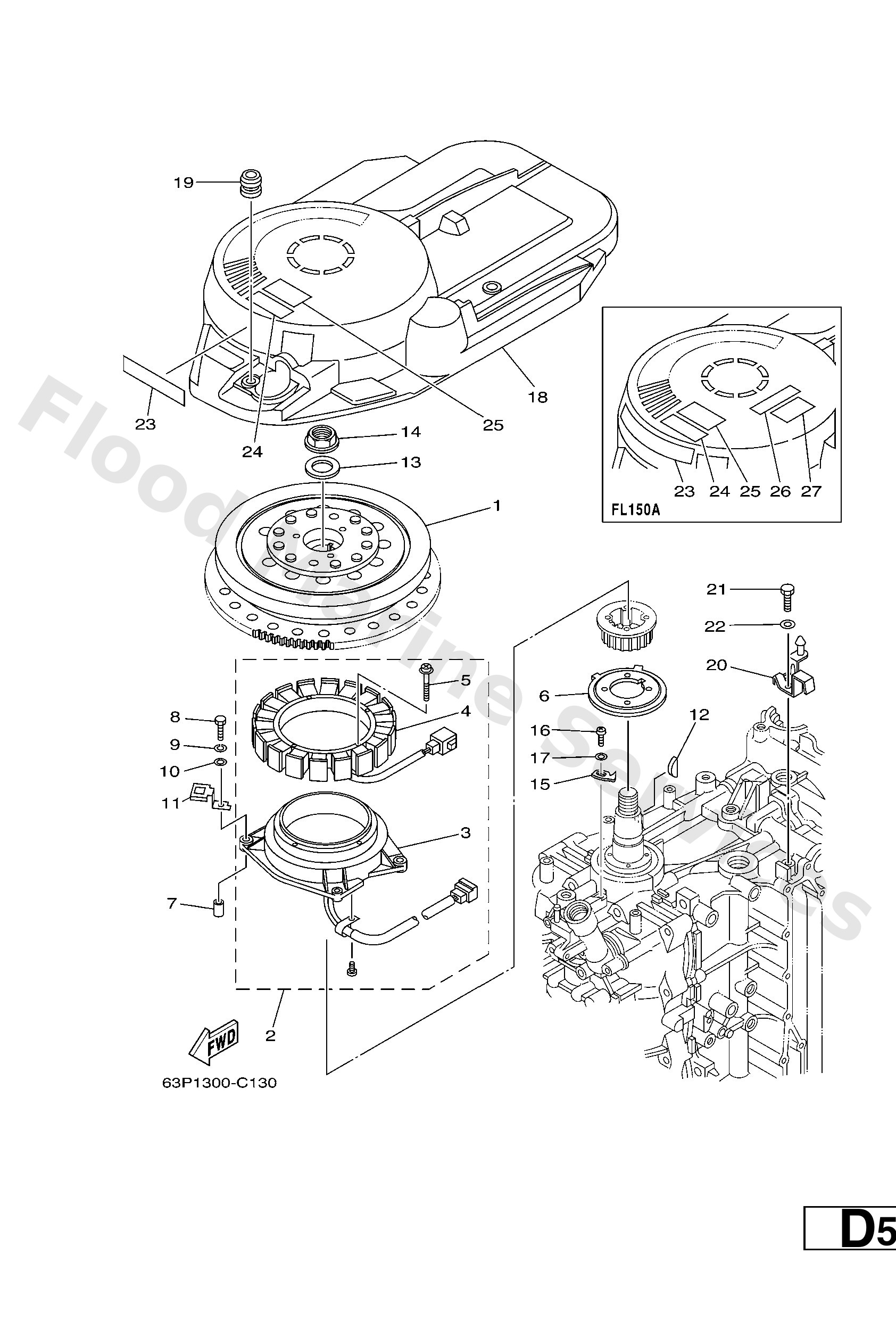

Diagram: GENERATOR

Diagram

Parts List

Reference
Description
Price


1
63P8145000
Rotor assembly
Loading…

↗
2
63P8146000
Base assembly
Loading…

↗
3
63P8558000
Coil, pulser
Loading…

↗
4
63P8141000
Stator assembly
Loading…

↗
5
63D8134520
Screw, pan
Loading…

↗
6
63P8167300 Go to P/N ) PE0-OM-120035
Rotor
Loading…

↗
7
9953008012
Pin, dowel(6g8)
Loading…

↗
8
9709506035
Bolt(j52)
Loading…

↗
9
9299506100
Washer(6a1)
Loading…

↗
10
9299506600
Washer, plain (646)
Loading…

↗
11
63P8184500
Plate
Loading…

↗
12
9028005015
Key, woodruff
Loading…

↗
13
9020124014
Washer, plate
Loading…

↗
14
9017924002
Nut
Loading…

↗
15
67F8133200
Plate, timing
Loading…

↗
16
9788506010
Screw pan head
Loading…

↗
18
63P8133700
Cover, flywheel
Loading…

↗
19
6638231701
Damper, ignition coil
Loading…

↗
20
63P8132G00
Plate
Loading…

↗
21
9709506016
Bolt, hexagon deep recess
Loading…

↗
23
63P1343760
Mark, caution
Loading…

↗
24
6A18362541
Mark 5
Loading…

↗
25
6A18362551
Mark 5
Loading…

↗
26
6K18362341
Mark 3
Loading…

↗
27
6K18362350
Mark 3
Loading…

↗
